Reference for showing Kanzi Engine plugin custom types in Kanzi Studio

You can use Kanzi Engine plugins to create custom property types and messages using the Kanzi Engine API, and use them in Kanzi Studio.

To pass to Kanzi Studio information about the custom property types and messages you create in a Kanzi Engine plugin, you declare metadata about them. The metadata enables Kanzi Engine plugin users to interact with the plugin content in Kanzi Studio. For example, metadata defines the type of Kanzi Studio property editor for setting a value for a property, and the set of values to select from.

Declare only the metadata you need. Kanzi Studio assigns default values to the attributes you do not set.

You can use these attributes:

Attribute Description
displayName Name of the property or message the way it is shown in Kanzi Studio
tooltip Tooltip for the property or message
category Category name the way it is shown in the Kanzi Studio Properties
valueProvider Source of the possible values for the property that Kanzi Studio lets the user select from
host Node types for which Kanzi Studio suggests the property, and whether Kanzi Studio adds the property automatically or lets the user add it
editor Type of Kanzi Studio editor used to set the value for the property
DefaultValue Default value for the property
LowerBound Lowest value the property can have
UpperBound Highest value the property can have
Step Amount by which the property value changes when a Kanzi Studio user edits it


displayName

Sets the name of the property or message the way it is shown in Kanzi Studio.

Syntax metadata.displayName = "name";
Values
name Name of the property or message the way you want to see it in Kanzi Studio
Examples
metadata.displayName = "Video Filename";

tooltip

Sets the tooltip for the property or message. Kanzi Studio appends to the tooltip text in parenthesis the name of the property or message in case the user needs it in scripting or application code.

Syntax metadata.tooltip = "text";
Values
text Tooltip text
Examples
metadata.tooltip = "Video file to be played";

category

Sets the category name of the property the way it is shown in the Kanzi Studio Properties.

Syntax metadata.category = "text";
Values
text Category
Examples
metadata.category = "Video";

valueProvider

Sets how Kanzi Studio gets the possible values for the property to let the user select from.

Syntax metadata.valueProvider = "key:value";
Values
key
  • ProjectObject provides nodes or resources of specific type set by value.

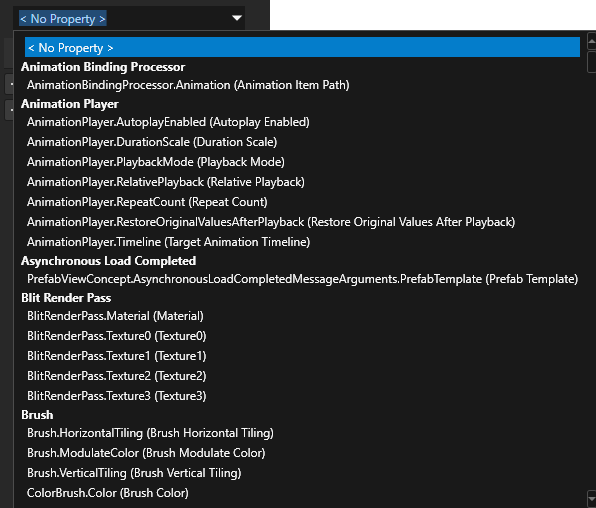

  • PropertyType lists all available property types in a dropdown. Do not set value.
    Do not set the editor type. Kanzi Studio sets the correct editor automatically.
    Use PropertyType with string property types.
  • StringList provides a list to which the user can add items. Do not set value.
    Do not set the editor type. Kanzi Studio sets the correct editor automatically.
    Use StringList with string property types.
  • Enum provides a dropdown of options set by value, which is a list of items (string) and values (int) to which Kanzi maps the items.
    Use Enum with int and enum property types.
    Separate the items and values with pipes and the list of item-value pairs with semicolons:
    Enum:string1|int1;string2|int2;...;stringN|intN
Examples
// Sets value provider to 3D nodes.
// (Kanzi Studio by default uses the Node 3D dropdown editor.)
metadata.valueProvider = "ProjectObject:Node3D";
// Provides a dropdown with all available property types.
// (Do not set the editor type. Kanzi Studio sets the correct editor automatically.)
metadata.valueProvider = "PropertyType";
// Provides a list to which the user can add items.
// (Do not set the editor type. Kanzi Studio sets the correct editor automatically.)
metadata.valueProvider = "StringList";
// Provides a list of directions along different dimensions which Kanzi maps to integers from 0 to 5.
metadata.valueProvider = "Enum : Left to Right|0;Right to Left|1;Top to Bottom|2;Bottom to Top|3;Near to Far|4;Far to Near|5";
// Creates a string reference to a node.
PropertyType<string> MyPlugin::NodeRefByStringProperty(kzMakeFixedString("MyPlugin.NodeRefByString"), "", 0, false,
                                                       KZ_DECLARE_EDITOR_METADATA
                                                       (
                                                           metadata.displayName = "Node Reference by String";
                                                           // When you set valueProvider to ProjectObject:Node2D,
                                                           // Kanzi Studio automatically uses the Node 2D selector editor.
                                                           metadata.valueProvider = "ProjectObject:Node2D";
                                                       ));
// Creates a string reference to a prefab resource.
PropertyType<string> MyPlugin::PrefabRefByStringProperty(kzMakeFixedString("MyPlugin.PrefabRefByString"), "", 0, false,
                                                         KZ_DECLARE_EDITOR_METADATA
                                                         (
                                                             metadata.displayName = "Prefab Reference by String";
                                                             // When you set valueProvider to ProjectObject:PrefabTemplate,
                                                             // Kanzi Studio automatically uses the Prefab template selector editor.
                                                             metadata.valueProvider = "ProjectObject:PrefabTemplate";
                                                         ));
// Creates a shared pointer reference to a prefab resource.
PropertyType<ResourceSharedPtr> MyPlugin::PrefabRefBySharedPtrProperty(kzMakeFixedString("MyPlugin.PrefabRefBySharedPtr"), ResourceSharedPtr(), 0, false,
                                                                       KZ_DECLARE_EDITOR_METADATA
                                                                       (
                                                                           metadata.displayName = "Prefab Reference by Shared Pointer";
                                                                           // When you set valueProvider to ProjectObject:PrefabTemplate,
                                                                           // Kanzi Studio automatically uses the Prefab template selector editor.
                                                                           metadata.valueProvider = "ProjectObject:PrefabTemplate";
                                                                       ));
// Creates a shared pointer reference to a material resource.
PropertyType<ResourceSharedPtr> MyPlugin::MaterialRefBySharedPtrProperty(kzMakeFixedString("MyPlugin.MaterialRefBySharedPtr"), ResourceSharedPtr(), 0, false,
                                                                 KZ_DECLARE_EDITOR_METADATA
                                                                 (
                                                                     metadata.displayName = "Material Reference by Shared Pointer";
                                                                     // When you set valueProvider to ProjectObject:Material,
                                                                     // Kanzi Studio automatically uses the Material dropdown editor.
                                                                     metadata.valueProvider = "ProjectObject:Material";
                                                                 ));

host

Sets the node types for which Kanzi Studio suggests the property, and whether Kanzi Studio adds the property automatically or lets the user add it.

If you do not set the host attribute, Kanzi Studio adds the property as a frequently used property to the nodes of the type for which you created the property type and lets the user add the property to any other types of nodes.

Syntax metadata.host = "nodeType:addition";
Values
nodeType Type of the node for which you want Kanzi Studio to make the property available.
addition How Kanzi Studio adds the property or lets the user add it:
  • user lets the user add the property using the context menu or the Add Properties window.
  • context lets the user add the property in the same ways as user, and also using the context tab of the Add Properties window.
  • freq adds the property as a frequently used property, marked with in the Properties. The user can also add the property in the same ways as with context.
  • auto adds the property automatically.
  • fixed adds the property automatically and does not let the user remove the property.
You can set multiple nodeType:addition pairs separated with commas.
Examples
// Adds the property as a frequently used property for all 2D nodes.
metadata.host = "Node2D:freq";
// Adds the property automatically for all VideoView2D nodes and lets the user add the property for Image nodes.
metadata.host = "VideoView2D:auto,Image2D:user";

editor

Sets the editor type Kanzi Studio users use to set the value for the property. If you do not set an editor, Kanzi assigns a default editor.

If you set the valueProvider attribute to PropertyType or StringList, do not set the editor type. Kanzi Studio assigns the correct editor automatically.

For a list of Kanzi Studio property editors, see Kanzi Studio property editors for property types declared in Kanzi Engine plugins.

Syntax metadata.editor = "editor";
Values
editor Kanzi Studio property editor name. See Kanzi Studio property editors for property types declared in Kanzi Engine plugins.
Examples
// Set editor to BrowseFileTextEditor which contains a text box with a Browse button next to it.
metadata.editor = "BrowseFileTextEditor";

DefaultValue

Sets the default value of the property or message the way it is shown in Kanzi Studio.

Syntax metadata["DefaultValue"] = "value";
Values
value The default value of the property or message in Kanzi Studio
Examples
// Set the default value of a string property in Kanzi Studio to video.mp4.
metadata["DefaultValue"] = "video.mp4";
// Set the default value of a float property in Kanzi Studio to 180.
metadata["DefaultValue"] = "180";

LowerBound

Sets the lowest value the property can have in Kanzi Studio. Use LowerBound with int and float property types. See also UpperBound and Step.

Syntax metadata["LowerBound"] = "value";
Values
value The lowest value the property can have
Examples
// Set the lowest value the property can have to 0.
metadata["LowerBound"] = "0";

UpperBound

Sets the highest value the property can have in Kanzi Studio. Use UpperBound with int and float property types. See also LowerBound and Step.

Syntax metadata["UpperBound"] = "value";
Values
value The highest value the property can have
Examples
// Set the highest value the property can have to 360.
metadata["UpperBound"] = "360";

Step

Sets the amount by which the property value changes when a Kanzi Studio user edits it. Use Step with int and float property types. See also LowerBound and UpperBound.

Syntax metadata["Step"] = "value";
Values
value The amount by which the property value changes when a Kanzi Studio user edits it
Examples
// Set the amount by which the property value changes when a Kanzi Studio user edits it to 10.
metadata["Step"] = "10";
