Step 2 - Fine-tune the animation

In the previous step you created the animation in which the BeachBall bounces off the ground, but the animation looks very rigid. This is because the animation uses linear interpolation for the transition between the keyframes. In Kanzi Studio you can use different interpolation modes to create different animations. See Changing the interpolation mode between keyframes.

In this step you first clean up the animation by removing the unused Animation Data items, make the bouncing ball animation smoother by using the Bezier interpolation between the keyframes, and you make the shadow react to the position of the BeachBall.

Clean up the animation

When you drag properties into the Animation Clip Editor to create keyframes, Kanzi Studio automatically adds the Animation Data items for each attribute of the property to that Animation Clip item. Since you changed only Translation Y and Scale Y attributes of the Render Transformation property, you can delete all the other Animation Data items.

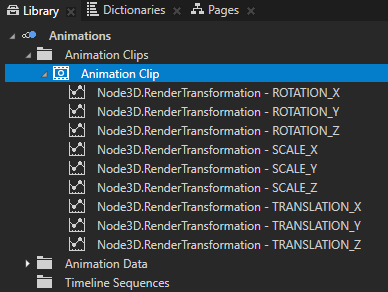

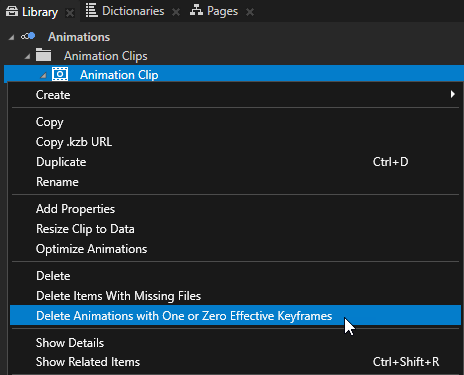

In the Library in the Animations > Animation Clips right-click the Animation Clip item you want to clean up, and select Delete Animations with One or Zero Effective Keyframes.

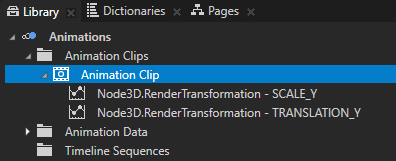

This deletes all Animation Data items that do not contain information needed in your animation.

Make the animation smoother

In this section you change the interpolation between the keyframes from linear to Bezier interpolation to make the animation smoother.

To make the animation smoother:

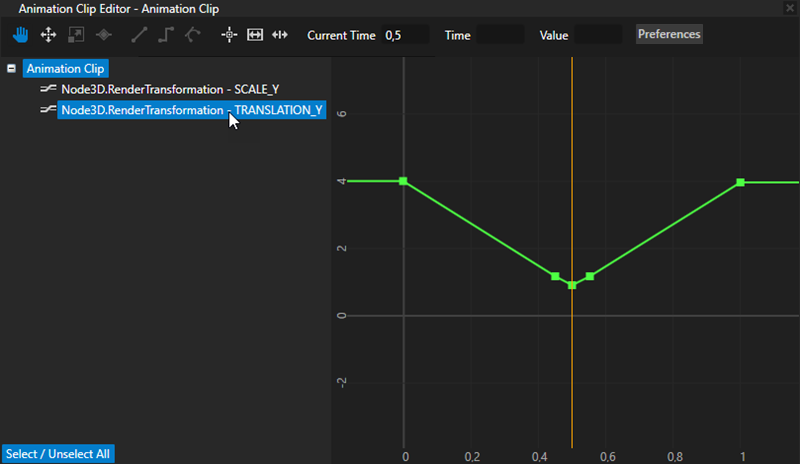

1. In the Animation Clip Editor select only the Translation Y property field Animation Data item.

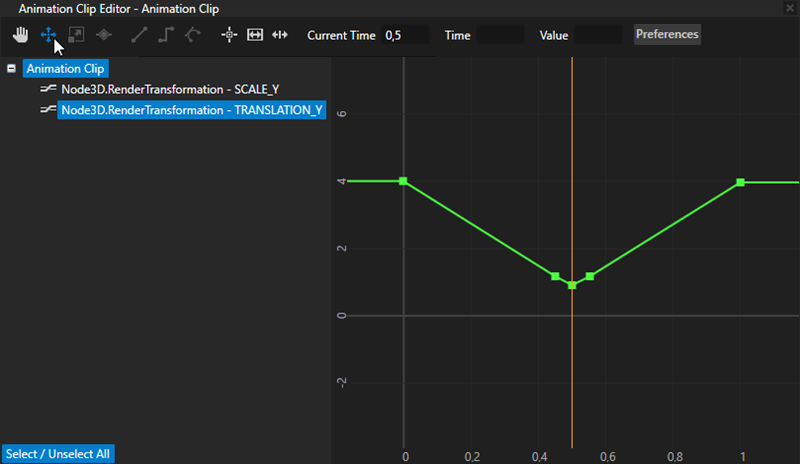

2. Use the mouse wheel to zoom-in on the animation canvas, and click to select the Move tool.

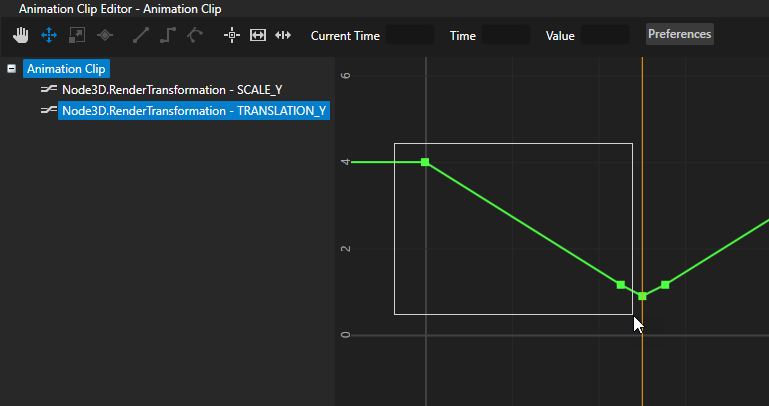

3. In the animation canvas select the first two keyframes by clicking and dragging the area around the first two keyframes. The selected keyframes turn white.
   The first keyframe defines the starting position of the BeachBall node, and the second keyframe defines the position of the BeachBall as it hits the Ground node. These are the keyframes for which you want to change the interpolation to make the animation smoother.

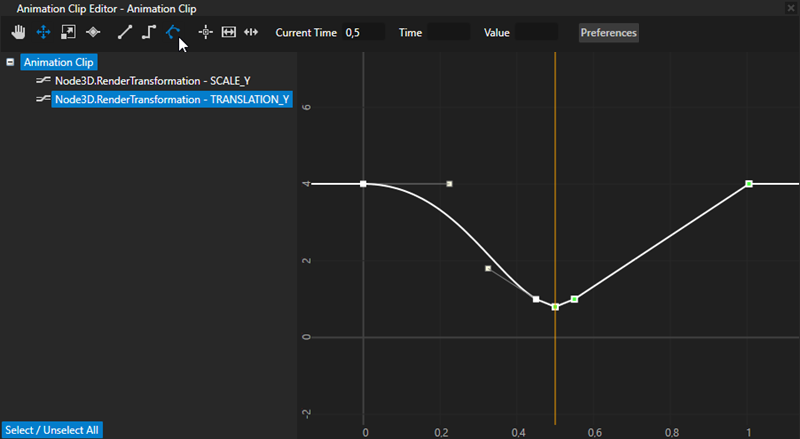

4. Click to change the interpolation between the keyframes to Bezier interpolation.
   With Bezier interpolation you can control how quickly the data between two keyframes changes.

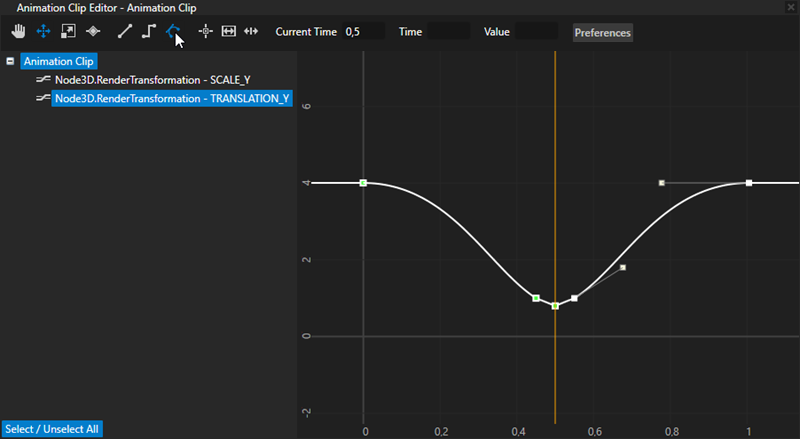

5. Use the Move tool to select the last two keyframes that define the position of the BeachBall node as it leaves the ground and returns to its starting position, and then click to change the interpolation between the keyframes to Bezier interpolation.

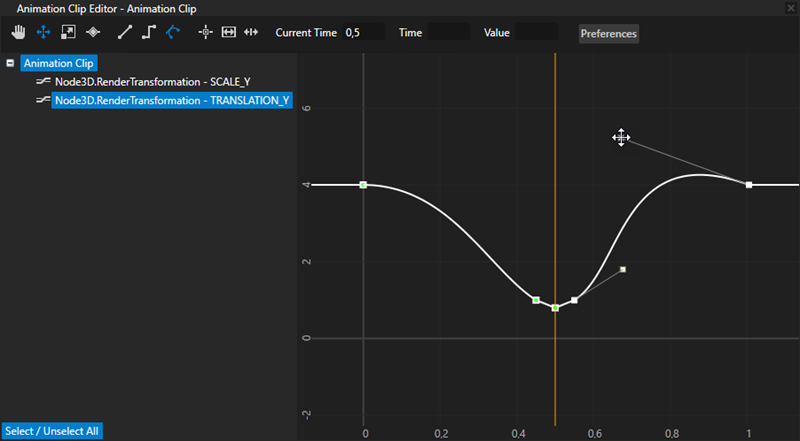

6. (Optional) You can further adjust the smoothness of the animation by adjusting the Bezier tangent handles of each keyframe. Note that if you want to create a looping animation, you get the best result by making the interpolation in starting and ending keyframes symmetrical.



Make the shadow react to the position of the BeachBall

In this section you connect the size of the shadow texture on the Ground node to the distance of the BeachBall node from the Ground node using Kanzi bindings. You make the shadow larger and more transparent when the BeachBall node is farther away from the Ground node.

To make the shadow react to the position of the BeachBall:

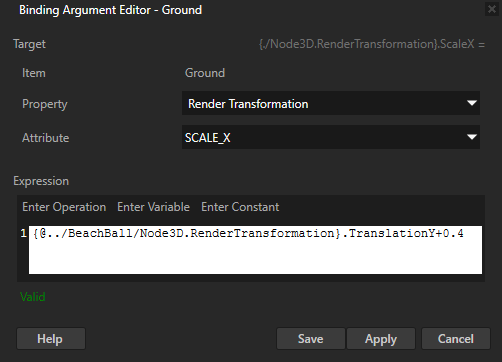

1. In the Project select the Ground node and in the Properties click next to the Bindings property, and in the Binding Argument Editor set:
   • Property to Render Transformation
   • Attribute to Scale X
   • Expression to

     {@../BeachBall/Node3D.RenderTransformation}.TranslationY+0.4

   Click Save.

   With this binding you control the scale of the Ground node on the x axis with the position of the BeachBall node on the y axis: the higher the BeachBall node is, the larger the shadow texture on the ground node is.


2. In the Properties click + Add Binding to add another binding. Use the same binding expression as in the previous step, but bind to the Scale Y attribute of the Render Transformation property, instead of to the Scale X attribute.
   The only difference between this binding and the binding in the previous step is that with this binding you bind the scale of the Ground node on the y axis.

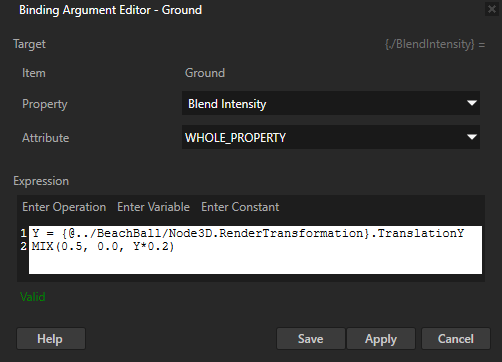

3. Add another binding and in the Binding Argument Editor set:
   1. Property to Blend Intensity
   2. Expression to

      Y = {@../BeachBall/Node3D.RenderTransformation}.TranslationY
      MIX(0.5, 0.0, Y*0.2)

   With this binding you control the strength of the shadow texture on the Ground node with the position of the BeachBall node on the y axis: the higher the BeachBall node is, the weaker the shadow texture on the ground node is. This binding uses the mix function to adjust the final value of the Blend Intensity property. You can use other binding functions to adjust the value. See Bindings expressions reference.



What's next?

In this tutorial you learned how to create a simple keyframe animation in Kanzi Studio. Now you can learn how to:

• Create reflections. See Tutorial: Create reflections tutorial.
• Change the materials and textures of the ball and the ground. See Tutorial: Materials, textures, and rendering tutorial.
• Learn how to create Kanzi applications that use the Kanzi Engine API. See Tutorial: Hello world! tutorial.
• Learn more about how to use bindings in Kanzi. See Using bindings.
