kanzi::connect::ConnectStreamEncodeUtil Class Reference

Connect video utility, read pixels using glReadPixels and post them through connect framework. More...

#include <stream_util_connect.hpp>

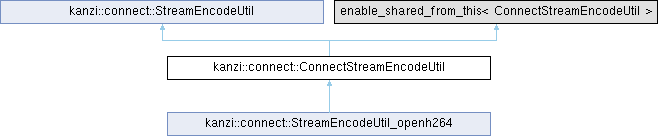

Inheritance diagram for kanzi::connect::ConnectStreamEncodeUtil:

Public Member Functions
	ConnectStreamEncodeUtil ()
	Constructor.
virtual bool	doEncode (const PixelFrame &in, vector< char > &out, int &flags)
	Request to encode a frame.
void	encodePixelFrame (PixelFrameSharedPtr frame) override
	Encode new pixel frame and send data.
bool	initialize (Domain &domain, StreamEncodeParameters &params) override
	Prepare encoding target.
void	startEncoderThread ()
void	stopEncoderThread ()
void	uninitialize (bool softUninitialize=false) override
	Release encoder infra and write ending to video file or stream.
void	updateRuntimedata ()
	~ConnectStreamEncodeUtil () override
	Destructor.
Public Member Functions inherited from kanzi::connect::StreamEncodeUtil
virtual	~StreamEncodeUtil ()
	Destructor.

Protected Attributes
bool	m_accumulate = false
size_t	m_delimeter = 0
Domain *	m_domain = nullptr
unsigned int	m_height = 0
mutex	m_inboundMutex
vector< PixelFrameWeakPtr >	m_pixelData
vector< PixelFrameSharedPtr >	m_pixelData_keepalive
bool	m_requestConfig = false
string	m_streamId
unsigned int	m_width = 0

Detailed Description

Connect video utility, read pixels using glReadPixels and post them through connect framework.

Constructor & Destructor Documentation

ConnectStreamEncodeUtil()

kanzi::connect::ConnectStreamEncodeUtil::ConnectStreamEncodeUtil

(

)

Constructor.

~ConnectStreamEncodeUtil()

kanzi::connect::ConnectStreamEncodeUtil::~ConnectStreamEncodeUtil ( )

override

Destructor.

Member Function Documentation

doEncode()

virtual bool kanzi::connect::ConnectStreamEncodeUtil::doEncode ( const PixelFrame & in, vector< char > & out, int & flags )

virtual

Request to encode a frame.

Parameters

in	A buffer containing frame data, assumption is that it will be 24bit BGR data
out	A buffer containing encoded data. Presentation is plugin specific.
flags	Additional information about this frame, sent to along the frame data to stream consumers.

Returns

True on success, data is to be sent over network.

encodePixelFrame()

void kanzi::connect::ConnectStreamEncodeUtil::encodePixelFrame ( PixelFrameSharedPtr frame )

overridevirtual

Encode new pixel frame and send data.

Parameters

frame

PixelFrame which is to be encoded and sent.

Implements kanzi::connect::StreamEncodeUtil.

initialize()

bool kanzi::connect::ConnectStreamEncodeUtil::initialize ( Domain & domain, StreamEncodeParameters & params )

overridevirtual

Prepare encoding target.

See also

StreamEncodeUtil::initialize

Implements kanzi::connect::StreamEncodeUtil.

Reimplemented in kanzi::connect::StreamEncodeUtil_openh264.

startEncoderThread()

void kanzi::connect::ConnectStreamEncodeUtil::startEncoderThread

(

)

stopEncoderThread()

void kanzi::connect::ConnectStreamEncodeUtil::stopEncoderThread

(

)

uninitialize()

void kanzi::connect::ConnectStreamEncodeUtil::uninitialize ( bool softUninitialize = false )

overridevirtual

Release encoder infra and write ending to video file or stream.

See also

StreamEncodeUtil::initialize

Implements kanzi::connect::StreamEncodeUtil.

Reimplemented in kanzi::connect::StreamEncodeUtil_openh264.

updateRuntimedata()

void kanzi::connect::ConnectStreamEncodeUtil::updateRuntimedata

(

)

Member Data Documentation

m_accumulate

bool kanzi::connect::ConnectStreamEncodeUtil::m_accumulate = false

protected

m_delimeter

size_t kanzi::connect::ConnectStreamEncodeUtil::m_delimeter = 0

protected

m_domain

Domain* kanzi::connect::ConnectStreamEncodeUtil::m_domain = nullptr

protected

m_height

unsigned int kanzi::connect::ConnectStreamEncodeUtil::m_height = 0

protected

m_inboundMutex

mutex kanzi::connect::ConnectStreamEncodeUtil::m_inboundMutex

mutableprotected

m_pixelData

vector<PixelFrameWeakPtr> kanzi::connect::ConnectStreamEncodeUtil::m_pixelData

protected

m_pixelData_keepalive

vector<PixelFrameSharedPtr> kanzi::connect::ConnectStreamEncodeUtil::m_pixelData_keepalive

protected

m_requestConfig

bool kanzi::connect::ConnectStreamEncodeUtil::m_requestConfig = false

protected

m_streamId

string kanzi::connect::ConnectStreamEncodeUtil::m_streamId

protected

m_width

unsigned int kanzi::connect::ConnectStreamEncodeUtil::m_width = 0

protected

---

The documentation for this class was generated from the following file:

• connect/kanzi_adaptation/viewport/stream_util_connect.hpp
