kanzi::ElasticEasingFunction Struct Reference

Changes the value that resembles an oscillating spring until it comes to rest. More...

#include <kanzi/core.ui/animation/easing_curve.hpp>

Public Member Functions
	ElasticEasingFunction ()
	Creates an ElasticEasingFunction with Oscillations and Springiness set to 3.0.
	ElasticEasingFunction (float oscillations, float springiness)
	Creates an ElasticEasingFunction with configurable oscillations and springiness.
float	operator() (float time) const
	Computes value of the easing function for the given time.

Public Attributes
float	oscillations
float	springiness

Detailed Description

Changes the value that resembles an oscillating spring until it comes to rest.

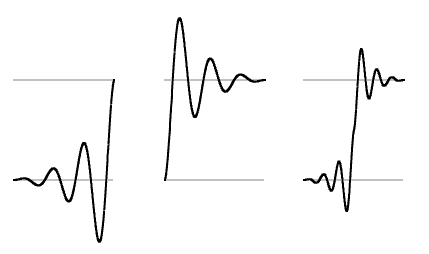

Elastic easing function: ease in, ease out, and ease in-out

Constructor & Destructor Documentation

ElasticEasingFunction() [1/2]

kanzi::ElasticEasingFunction::ElasticEasingFunction ( float oscillations, float springiness )

inlineexplicit

Creates an ElasticEasingFunction with configurable oscillations and springiness.

Parameters

oscillations	Number of oscillations over the range.
springiness	Strength of the spring that controls the amplitude of the oscillations.

ElasticEasingFunction() [2/2]

kanzi::ElasticEasingFunction::ElasticEasingFunction ( )

inline

Creates an ElasticEasingFunction with Oscillations and Springiness set to 3.0.

Member Function Documentation

operator()()

float kanzi::ElasticEasingFunction::operator() ( float time ) const

inline

Computes value of the easing function for the given time.

Parameters

time	Normalized time.

Returns

Result of the easing function.

Member Data Documentation

oscillations

float kanzi::ElasticEasingFunction::oscillations

springiness

float kanzi::ElasticEasingFunction::springiness

---

The documentation for this struct was generated from the following file:

• kanzi/core.ui/animation/easing_curve.hpp
