kanzi::connect::AbstractServiceClient Class Reference

Abstract client-side base class for Kanzi Connect services. More...

#include <abstract_service_client.hpp>

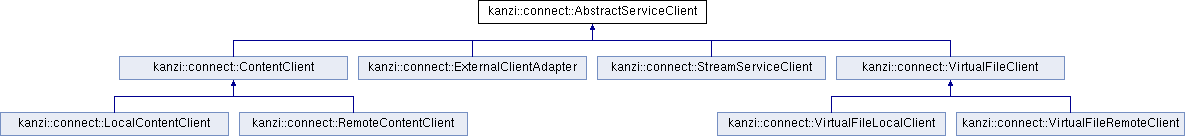

Inheritance diagram for kanzi::connect::AbstractServiceClient:

Public Types
typedef function< void(void)>	SessionRunningFunction
typedef shared_ptr< void >	SessionRunningSubscriptionToken
typedef function< void(void)>	SessionStoppedFunction

Public Member Functions
	AbstractServiceClient ()
	Constructor. More...
AbstractSession::MessageSubscriptionToken	addMessageSubscription (const string &messageType, AbstractSession::MessageReceivedFunction function)
SessionRunningSubscriptionToken	addSessionRunningSubscription (SessionRunningFunction function)
SessionRunningSubscriptionToken	addSessionStoppedSubscription (SessionStoppedFunction function)
optional< int >	getActiveSessionIdentifier ()
virtual string	getIdentifier () const =0
	Returns the type of the service. More...
optional< const AbstractSession::ServiceAttributes >	getServiceAttributes ()
virtual void	onSessionRunning ()
virtual void	onSessionStopped ()
void	removeMessageSubscription (const string &messageType, AbstractSession::MessageSubscriptionToken token)
void	removeSessionRunningSubscription (SessionRunningSubscriptionToken token)
void	removeSessionStoppedSubscription (SessionRunningSubscriptionToken token)
void	setEnabledState (bool newEnabledState)
	Enable/disable the service by allowing or blocking traffic between client and server. More...
bool	transmit (const MessagePackage &message)
virtual void	work ()
	Carry out asynchronous work bound to Kanzi Connect client main thread. More...
virtual	~AbstractServiceClient ()
	Destructor. More...

Protected Types
enum	SessionState { INITIALIZED = 0, RUNNING = 1, STOPPED = 2 }

Protected Member Functions
virtual AbstractSessionSharedPtr	getSession ()

Protected Attributes
SessionState	m_sessionState

Detailed Description

Abstract client-side base class for Kanzi Connect services.

Member Typedef Documentation

SessionRunningFunction

typedef function<void(void)> kanzi::connect::AbstractServiceClient::SessionRunningFunction

SessionRunningSubscriptionToken

typedef shared_ptr<void> kanzi::connect::AbstractServiceClient::SessionRunningSubscriptionToken

SessionStoppedFunction

typedef function<void(void)> kanzi::connect::AbstractServiceClient::SessionStoppedFunction

Member Enumeration Documentation

SessionState

enum kanzi::connect::AbstractServiceClient::SessionState

protected

Enumerator
INITIALIZED
RUNNING
STOPPED

Constructor & Destructor Documentation

AbstractServiceClient()

kanzi::connect::AbstractServiceClient::AbstractServiceClient

(

)

Constructor.

~AbstractServiceClient()

virtual kanzi::connect::AbstractServiceClient::~AbstractServiceClient ( )

virtual

Destructor.

Member Function Documentation

addMessageSubscription()

AbstractSession::MessageSubscriptionToken kanzi::connect::AbstractServiceClient::addMessageSubscription ( const string &  messageType, AbstractSession::MessageReceivedFunction  function  )

inline

addSessionRunningSubscription()

SessionRunningSubscriptionToken kanzi::connect::AbstractServiceClient::addSessionRunningSubscription

(

SessionRunningFunction

function

)

addSessionStoppedSubscription()

SessionRunningSubscriptionToken kanzi::connect::AbstractServiceClient::addSessionStoppedSubscription

(

SessionStoppedFunction

function

)

getActiveSessionIdentifier()

optional<int> kanzi::connect::AbstractServiceClient::getActiveSessionIdentifier ( )

inline

getIdentifier()

virtual string kanzi::connect::AbstractServiceClient::getIdentifier ( ) const

pure virtual

Returns the type of the service.

Returns

Identifier of the service, as a string.

Implemented in kanzi::connect::ExternalClientAdapter, kanzi::connect::VirtualFileClient, kanzi::connect::ContentClient, and kanzi::connect::StreamServiceClient.

getServiceAttributes()

optional<const AbstractSession::ServiceAttributes> kanzi::connect::AbstractServiceClient::getServiceAttributes ( )

inline

getSession()

virtual AbstractSessionSharedPtr kanzi::connect::AbstractServiceClient::getSession ( )

inlineprotectedvirtual

onSessionRunning()

virtual void kanzi::connect::AbstractServiceClient::onSessionRunning ( )

virtual

Reimplemented in kanzi::connect::ExternalClientAdapter.

onSessionStopped()

virtual void kanzi::connect::AbstractServiceClient::onSessionStopped ( )

virtual

Reimplemented in kanzi::connect::ExternalClientAdapter.

removeMessageSubscription()

void kanzi::connect::AbstractServiceClient::removeMessageSubscription ( const string &  messageType, AbstractSession::MessageSubscriptionToken  token  )

inline

removeSessionRunningSubscription()

void kanzi::connect::AbstractServiceClient::removeSessionRunningSubscription

(

SessionRunningSubscriptionToken

token

)

removeSessionStoppedSubscription()

void kanzi::connect::AbstractServiceClient::removeSessionStoppedSubscription

(

SessionRunningSubscriptionToken

token

)

setEnabledState()

void kanzi::connect::AbstractServiceClient::setEnabledState

(

bool

newEnabledState

)

Enable/disable the service by allowing or blocking traffic between client and server.

Parameters

newEnabledState

True enables and false disables the service

transmit()

bool kanzi::connect::AbstractServiceClient::transmit ( const MessagePackage &  message )

inline

work()

virtual void kanzi::connect::AbstractServiceClient::work ( )

inlinevirtual

Carry out asynchronous work bound to Kanzi Connect client main thread.

Reimplemented in kanzi::connect::ContentClient, and kanzi::connect::RemoteContentClient.

Member Data Documentation

m_sessionState

SessionState kanzi::connect::AbstractServiceClient::m_sessionState

protected

---

The documentation for this class was generated from the following file:

• connect/interface/abstract_service_client.hpp
