Kanzi Figma Importer 1.2.5¶

Kanzi Figma Importer enables you to import designs from Figma to Kanzi Studio and create a Kanzi application based on your Figma design.

Note

This is a prerelease version of Kanzi Figma Importer. Some functionality and workflows are going to change in the future releases of Kanzi and Kanzi Figma Importer.

Your feedback is very important to us. To send your questions, findings, and comments use the Kanzi Support Portal at support.rightware.com. When submitting a request regarding Kanzi Figma Importer, set the Product field to Kanzi Figma Importer.

Requirements¶

To use Kanzi Figma Importer, you need:

Kanzi 3.9.11
Kanzi Shapes 1.0.0-beta8

Kanzi Figma Importer uses Kanzi Shapes to show 2D vector content and gradients. For more information about Kanzi Shapes, see https://docs.kanzi.com/shapes/1.0.0-beta8/.

Contents of the package¶

The package includes:

bin directory contains the Kanzi Figma Importer library files.
docs directory contains this documentation.
StudioPlugin directory contains the Kanzi Studio project with assets, required by Kanzi Figma Importer.
Readme.txt file that contains brief information about Kanzi Figma Importer.

Installing Kanzi Figma Importer¶

To install Kanzi Figma Importer:

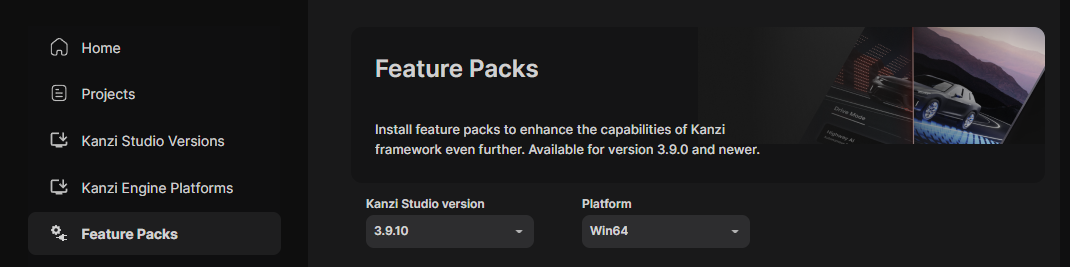

In Kanzi Hub, in the Feature Packs, select your Kanzi Studio version and the Win64 platform.

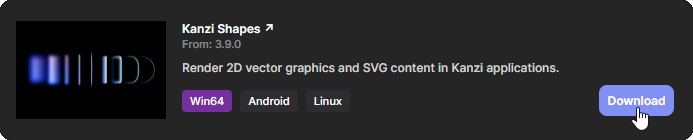

Download Kanzi Shapes and extract the content of the zip file to the <KanziWorkspace>/Engine/plugins directory.

If the <KanziWorkspace>/Engine/plugins directory does not exist, create it.

For more information on how to use Kanzi Shapes, see https://docs.kanzi.com/shapes/1.0.0-beta8/.

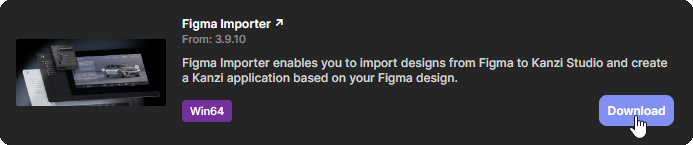

Download Kanzi Figma Importer and extract the content of the zip file to the <KanziWorkspace>/Engine/plugins directory.

Note

Avoid using the File Explorer to extract the Kanzi Figma Importer plugin package. In some cases Windows blocks the DLL files.
In File Explorer, in the <KanziWorkspace>/Engine/plugins/plugins-figma-importer/bin directory, right-click KanziStudioImporter.dll and select Create shortcut.
Move the shortcut file to the %AppData%/Rightware/<KanziVersion>/plugins directory.

If the %AppData%/Rightware/<KanziVersion>/plugins directory does not exist, create it.

When you install Kanzi Figma Importer, you can find it in the Kanzi Studio main menu.

After the installation:

To learn about the Figma concepts and how Kanzi Figma Importer imports a Figma project, see Figma concepts in Kanzi Studio.
To learn how to import a Figma project, see Importing.
To learn how to work with the Kanzi Figma Importer, see Working with ….
