Gradients

A gradient shows transitions between two or more colors. You can fill a shape or the outline of a shape with a gradient.

These gradients are available in Kanzi Shapes:

• Linear gradient shows transitions along a straight line.

  See Using linear gradient.



• Radial gradient shows transitions radiating from an origin.

  See Using radial gradient.



• Sweep gradient shows transitions rotated around a center point.

  See Using sweep gradient.



Gradient color stops

Color stops define the colors in a gradient. A color stop is a combination of a color and a color stop length. Use the CSS color stop syntax to set color stops. See https://www.w3.org/TR/css-images-4/#color-stop-syntax.

This section lists examples of gradient color stops.

Color

To define a color in a gradient, you can use:

• RGB value, where you specify the values of the red, green, and blue color channels in the range from 0 to 255.

• RGBA value, where you specify:

  • Red, green, and blue color channels in the range from 0 to 255.

  • Alpha channel in the range from 0 to 1 as a decimal value or percentage.

    0 is fully transparent and 1 is fully opaque.

• HSL value, where you specify:

  • Hue in the range from 0 to 360.

    For example, 0 is red, 120 is green, and 240 is blue.

  • Saturation in the range from 0 to 1 as a decimal value or percentage.

  • Lightness in the range from 0 to 1 as a decimal value or percentage.

• HSLA value, where you specify:

  • Hue, saturation, and lightness the same way as in an HSL value.

  • Alpha channel in the range from 0 to 1 as a decimal value or percentage.

    0 is fully transparent and 1 is fully opaque.

• CSS color keyword

Gradient Stops value	Result
rgb(255,0,0), rgb(0,128,0), rgb(0,0,255)
rgba(255,0,0,1), rgba(255,0,0,0.2), rgba(255,0,0,100%)
hsl(0, 1, 0.5), hsl(120, 100%, 25%), hsl(240, 1, 50%)
hsla(0, 1, 0.5, 1), hsla(0, 1, 0.5, 0.2), hsla(0, 1, 0.5, 100%)
crimson, seagreen, navy

Color stop length

To define a color stop length, you can use:

• Decimal value in the range from 0 to 1

• Percentage

Gradient Stops value	Result
red 0.2, green 0.8, blue 1

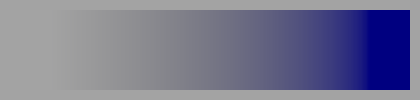

transparent 10%, navy 90%

Midpoint between color stops

To define a position between two color stops that is a halfway blend between the two colors, use a color stop length as a transition hint.

Gradient Stops value	Result
red, 0.15, green, 0.85, blue

Multi-position color stop

To create uniform color areas, use multi-position color stops.

Gradient Stops value	Result
red 0.33, green 0.33 0.67, blue 0.67

See also

Using linear gradient

Using radial gradient

Using sweep gradient
