Metaclass provides type inspection mechanism for Kanzi classes. More...

#include <kanzi/core/metadata/metaclass.hpp>

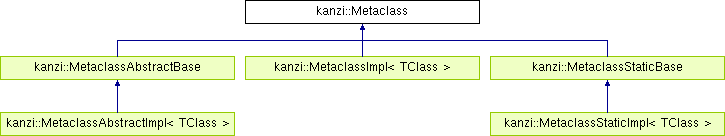

Inheritance diagram for kanzi::Metaclass:

Public Types
typedef MetaclassContainer::const_iterator	MetaclassIterator

typedef PropertyTypeContainer::const_iterator	PropertyTypeIterator

typedef MessageTypeContainer::const_iterator	MessageTypeIterator

typedef MetaMethodContainer::const_iterator	MetaMethodIterator
	Iterator for MetaMethod container. More...

Public Member Functions
virtual bool	isMetaclassOf (const MetaObject &object) const =0
	Checks whether this metaclass describes the class of an object instance. More...

virtual shared_ptr< MetaObject >	create (Domain *domain, string_view name) const =0

template<typename Type >
shared_ptr< Type >	create (Domain *domain, string_view name) const
	Creates an instance of a class this metaclass describes. More...

bool	isAbstract () const
	Returns true if the class described by the metaclass is abstract, false otherwise. More...

bool	isSealed () const
	Internal function. More...

void	seal ()
	Internal function. More...

const Metaclass *	getBase () const
	Returns the metaclass of the base class. More...

bool	isDerivedFrom (const Metaclass *metaclass) const
	Determines whether the class this metaclass describes derives from a class described by specified metaclass. More...

void	addPropertyType (AbstractPropertyType propertyType)

void	addMessageType (AbstractMessageType messageType)

void	addNestedMetaclass (const Metaclass *metaclass)

void	addMixin (const Metaclass *metaclass)

void	addMethod (const MetaMethod *method)
	Registers a method to the metaclass. More...

MetaclassIterator	beginNestedMetaclasses () const

MetaclassIterator	endNestedMetaclasses () const

MetaclassIterator	beginMixinMetaclasses () const

MetaclassIterator	endMixinMetaclasses () const

PropertyTypeIterator	beginPropertyTypes () const

PropertyTypeIterator	endPropertyTypes () const

MessageTypeIterator	beginMessageTypes () const

MessageTypeIterator	endMessageTypes () const

MetaMethodIterator	beginMethod () const
	Creates a const_iterator pointing to the top of the metamethod container. More...

MetaMethodIterator	endMethod () const
	Creates a const_iterator pointing to the end of the metamethod container. More...

const MetaMethod *	findMethod (string_view name) const
	Returns the metamethod registered in the metaclass with the given name. More...

FixedString	getName () const

void	setEditorInfo (PropertyTypeEditorInfoSharedPtr editorInfo)

PropertyTypeEditorInfoSharedPtr	getEditorInfo () const

Protected Member Functions
	Metaclass (const Metaclass *baseClass, FixedString name)

	~Metaclass ()

void	checkSealed () const

void	setAbstract ()

Detailed Description

Metaclass provides type inspection mechanism for Kanzi classes.

Classes deriving from Object can register information about their type, properties, methods, messages by using Metaclass and accompanying macros. Such information is used by serialization, scripting and to display friendly type information in Kanzi Studio.

Use KZ_METACLASS_BEGIN and KZ_METACLASS_END inside your class body to declare a metaclass. Serialization and functions instantiating objects use metaclass name to identify types. Use KZ_METACLASS_PROPERTY_TYPE to register a property type of your class to the metaclass. Use KZ_METACLASS_MESSAGE_TYPE to register a message type of your class to the metaclass. Use KZ_METACLASS_METHOD to register a MetaMethod of your class to the metaclass.

Member Typedef Documentation

typedef MetaclassContainer::const_iterator kanzi::Metaclass::MetaclassIterator

typedef PropertyTypeContainer::const_iterator kanzi::Metaclass::PropertyTypeIterator

typedef MessageTypeContainer::const_iterator kanzi::Metaclass::MessageTypeIterator

typedef MetaMethodContainer::const_iterator kanzi::Metaclass::MetaMethodIterator

Iterator for MetaMethod container.

Constructor & Destructor Documentation

kanzi::Metaclass::Metaclass	(	const Metaclass *	baseClass,
		FixedString	name
	)

inlineexplicitprotected

kanzi::Metaclass::~Metaclass ( )

inlineprotected

Member Function Documentation

virtual bool kanzi::Metaclass::isMetaclassOf ( const MetaObject & object ) const

pure virtual

Checks whether this metaclass describes the class of an object instance.

Implemented in kanzi::MetaclassStaticBase, kanzi::MetaclassAbstractImpl< TClass >, and kanzi::MetaclassImpl< TClass >.

virtual shared_ptr<MetaObject> kanzi::Metaclass::create	(	Domain *	domain,
		string_view	name
	)		const

pure virtual

Implemented in kanzi::MetaclassStaticBase, kanzi::MetaclassAbstractBase, and kanzi::MetaclassImpl< TClass >.

template<typename Type >

shared_ptr<Type> kanzi::Metaclass::create	(	Domain *	domain,
		string_view	name
	)		const

inline

Creates an instance of a class this metaclass describes.

bool kanzi::Metaclass::isAbstract ( ) const

inline

Returns true if the class described by the metaclass is abstract, false otherwise.

bool kanzi::Metaclass::isSealed ( ) const

inline

Internal function.

void kanzi::Metaclass::seal ( )

inline

Internal function.

const Metaclass* kanzi::Metaclass::getBase ( ) const

inline

Returns the metaclass of the base class.

bool kanzi::Metaclass::isDerivedFrom ( const Metaclass * metaclass ) const

inline

Determines whether the class this metaclass describes derives from a class described by specified metaclass.

void kanzi::Metaclass::addPropertyType ( AbstractPropertyType propertyType )

inline

void kanzi::Metaclass::addMessageType ( AbstractMessageType messageType )

inline

void kanzi::Metaclass::addNestedMetaclass ( const Metaclass * metaclass )

inline

void kanzi::Metaclass::addMixin ( const Metaclass * metaclass )

inline

void kanzi::Metaclass::addMethod ( const MetaMethod * method )

Registers a method to the metaclass.

For convenience use KZ_METACLASS_METHOD macro to declare the metamethods.

Parameters

method The address of the MetaMethod instance to be registered.

MetaclassIterator kanzi::Metaclass::beginNestedMetaclasses ( ) const

inline

MetaclassIterator kanzi::Metaclass::endNestedMetaclasses ( ) const

inline

MetaclassIterator kanzi::Metaclass::beginMixinMetaclasses ( ) const

inline

MetaclassIterator kanzi::Metaclass::endMixinMetaclasses ( ) const

inline

PropertyTypeIterator kanzi::Metaclass::beginPropertyTypes ( ) const

inline

PropertyTypeIterator kanzi::Metaclass::endPropertyTypes ( ) const

inline

MessageTypeIterator kanzi::Metaclass::beginMessageTypes ( ) const

inline

MessageTypeIterator kanzi::Metaclass::endMessageTypes ( ) const

inline

MetaMethodIterator kanzi::Metaclass::beginMethod ( ) const

Creates a const_iterator pointing to the top of the metamethod container.

MetaMethodIterator kanzi::Metaclass::endMethod ( ) const

Creates a const_iterator pointing to the end of the metamethod container.

const MetaMethod* kanzi::Metaclass::findMethod ( string_view name ) const

Returns the metamethod registered in the metaclass with the given name.

Parameters

name	The name of the metamethod.

Returns: Pointer to the metamethod, nullptr if none found.

FixedString kanzi::Metaclass::getName ( ) const

inline

void kanzi::Metaclass::setEditorInfo ( PropertyTypeEditorInfoSharedPtr editorInfo )

inline

PropertyTypeEditorInfoSharedPtr kanzi::Metaclass::getEditorInfo ( ) const

inline

void kanzi::Metaclass::checkSealed ( ) const

protected

void kanzi::Metaclass::setAbstract ( )

inlineprotected

The documentation for this class was generated from the following file:

kanzi/core/metadata/metaclass.hpp
