kanzi::ButtonConcept Class Reference

Button concept class. More...

#include <kanzi/ui/node/concept/button.hpp>

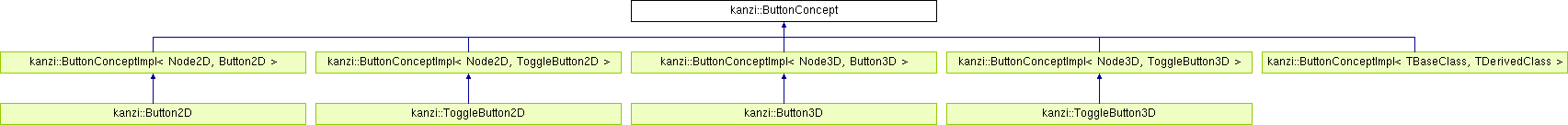

Inheritance diagram for kanzi::ButtonConcept:
kanzi::ButtonConceptImpl< Node2D, Button2D > kanzi::ButtonConceptImpl< Node2D, ToggleButton2D > kanzi::ButtonConceptImpl< Node3D, Button3D > kanzi::ButtonConceptImpl< Node3D, ToggleButton3D > kanzi::ButtonConceptImpl< TBaseClass, TDerivedClass > kanzi::Button2D kanzi::ToggleButton2D kanzi::Button3D kanzi::ToggleButton3D

Classes

class  CanceledMessageArguments

class  ClickedMessageArguments

class  LongPressMessageArguments

class  PointerEnteredMessageArguments

class  PointerLeftMessageArguments

class  PressedMessageArguments

class  ToggledOffMessageArguments

class  ToggledOnMessageArguments

class  ToggleStateChangedMessageArguments


Public Member Functions

optional< int > getEffectiveButtonGroupId () const


Static Public Member Functions

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()


Static Public Attributes

Properties
static PropertyType< bool > IsPressedProperty
 IsPressed property. More...

static PropertyType< float > LongPressIntervalProperty
 LongPressInterval property. More...

static PropertyType< bool > PressOnHoverProperty
 PressOnHover property. More...

static PropertyType< float > AutoClickIntervalProperty
 AutoClickInterval property. More...

static PropertyType< int > ToggleStateProperty
 ToggleState property. More...

static PropertyType< int > ToggleStateCountProperty
 ToggleStateCount property. More...

static PropertyType< int > IndexInGroupProperty
 IndexInGroup property. More...

Messages
static MessageType< ClickedMessageArgumentsClickedMessage

static MessageType< PressedMessageArgumentsPressedMessage

static MessageType< CanceledMessageArgumentsCanceledMessage

static MessageType< PointerEnteredMessageArgumentsPointerEnteredMessage

static MessageType< PointerLeftMessageArgumentsPointerLeftMessage

static MessageType< LongPressMessageArgumentsLongPressMessage

static MessageType< ToggledOnMessageArgumentsToggledOnMessage

static MessageType< ToggledOffMessageArgumentsToggledOffMessage

static MessageType< ToggleStateChangedMessageArgumentsToggleStateChangedMessage


Static Protected Member Functions

static Vector2 measure2D (Node2D *button, Vector2 availableSize)
 Measure function for a Node2D button. More...


Protected Attributes

optional< int > m_effectiveButtonGroupId


Detailed Description

Button concept class.

Member Function Documentation

static PropertyTypeEditorInfoSharedPtr kanzi::ButtonConcept::makeEditorInfo ( )
static
optional<int> kanzi::ButtonConcept::getEffectiveButtonGroupId ( ) const
inline
static Vector2 kanzi::ButtonConcept::measure2D ( Node2D button,
Vector2  availableSize
)
staticprotected

Measure function for a Node2D button.

Member Data Documentation

PropertyType<bool> kanzi::ButtonConcept::IsPressedProperty
static

IsPressed property.

Whether the button is in down state. The default value is false.

See also
setIsPressed(), isIsPressed()
PropertyType<float> kanzi::ButtonConcept::LongPressIntervalProperty
static

LongPressInterval property.

Occurs when the button is in down state for the set amount of milliseconds. Set to 0 to disable. The default value is 0.0f.

See also
setLongPressInterval(), getLongPressInterval()
PropertyType<bool> kanzi::ButtonConcept::PressOnHoverProperty
static

PressOnHover property.

Whether hovering the pointer over the button makes sets it into down state. The default value is false.

See also
setPressOnHover(), isPressOnHover()
PropertyType<float> kanzi::ButtonConcept::AutoClickIntervalProperty
static

AutoClickInterval property.

An interval in milliseconds after which a held down button sends a button click message. Set to 0 to disable. The default value is 0.0f.

See also
setAutoClickInterval(), getAutoClickInterval()
PropertyType<int> kanzi::ButtonConcept::ToggleStateProperty
static

ToggleState property.

The current toggle state of a toggle button. The default value is 0.

See also
setToggleState(), getToggleState()
PropertyType<int> kanzi::ButtonConcept::ToggleStateCountProperty
static

ToggleStateCount property.

The number of toggle states of a toggle button. The default value is 0.

See also
setToggleStateCount(), getToggleStateCount()
PropertyType<int> kanzi::ButtonConcept::IndexInGroupProperty
static

IndexInGroup property.

The default value is -1.

See also
setIndexInGroup(), getIndexInGroup()
MessageType<ClickedMessageArguments> kanzi::ButtonConcept::ClickedMessage
static
MessageType<PressedMessageArguments> kanzi::ButtonConcept::PressedMessage
static
MessageType<CanceledMessageArguments> kanzi::ButtonConcept::CanceledMessage
static
MessageType<PointerEnteredMessageArguments> kanzi::ButtonConcept::PointerEnteredMessage
static
MessageType<PointerLeftMessageArguments> kanzi::ButtonConcept::PointerLeftMessage
static
MessageType<LongPressMessageArguments> kanzi::ButtonConcept::LongPressMessage
static
MessageType<ToggledOnMessageArguments> kanzi::ButtonConcept::ToggledOnMessage
static
MessageType<ToggledOffMessageArguments> kanzi::ButtonConcept::ToggledOffMessage
static
MessageType<ToggleStateChangedMessageArguments> kanzi::ButtonConcept::ToggleStateChangedMessage
static
optional<int> kanzi::ButtonConcept::m_effectiveButtonGroupId
protected

The documentation for this class was generated from the following file:
