kanzi::InputManipulator::InputMessageArguments Class Reference

Message arguments for input manipulator messages. More...

#include <kanzi/core.ui/input/input_manipulator.hpp>

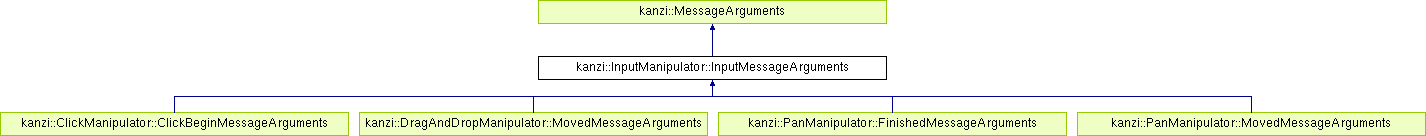

Inheritance diagram for kanzi::InputManipulator::InputMessageArguments:

Public Member Functions
Vector2	getPoint () const
	The position of the primary touch point. More...
void	setPoint (Vector2 value)
Vector3	getRayOrigin () const
	The origin of the pick ray in the local space of the enclosing viewport node. More...
void	setRayOrigin (Vector3 value)
Vector3	getRayDirection () const
	Pick ray direction vector (normalized) in the local space of the enclosing viewport node. More...
void	setRayDirection (Vector3 value)
Vector2	getHitTestPoint () const
	The position of the primary touch point in the object space of the node that generated the hit test. More...
void	setHitTestPoint (Vector2 value)
Vector3	getHitTestRayOrigin () const
	Origin of the hit test ray in the local space of the hit test camera. Provided when hitting a 3D node. More...
void	setHitTestRayOrigin (Vector3 value)
Vector3	getHitTestRayDirection () const
	Hit test ray direction vector (normalized) in the local space of the hit test camera. Provided when hitting a 3D node. More...
void	setHitTestRayDirection (Vector3 value)
Public Member Functions inherited from kanzi::MessageArguments
	MessageArguments ()
	MessageArguments (AbstractMessageType messageType)
	~MessageArguments ()
template<typename TDataType >
TDataType	getArgument (const PropertyType< TDataType > &argumentType) const
bool	getAbstractArgument (AbstractPropertyType argumentType, Variant &variant) const
template<typename TDataType >
void	setArgument (const PropertyType< TDataType > &argumentType, typename PropertyType< TDataType >::DataType value)
void	setAbstractArgument (AbstractPropertyType argumentType, const Variant &variant)
bool	isFrom (const Node &source) const
shared_ptr< Node >	getSource () const
void	setHandled (bool handled)
bool	isHandled () const
chrono::milliseconds	getTimestamp () const
KzuMessageDispatcher *	getDispatcher () const
AbstractMessageType	getType () const
void	setSource (Node *source)
void	setTimestamp (chrono::milliseconds timestamp)
void	setValid (bool valid)
bool	isValid () const
void	setDispatcher_internal (KzuMessageDispatcher *dispatcher)
	Internal function. More...
void	setType_internal (AbstractMessageType type)
	Internal function. More...

Static Public Member Functions
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
Static Public Member Functions inherited from kanzi::MessageArguments
static size_t	getArgumentAllocatorPoolSize ()
	Gets the current size of memory pool of argument entries. More...
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

Static Public Attributes
static PropertyType< Vector2 >	ManipulatorPointProperty
	ManipulatorPoint property. More...
static PropertyType< Vector3 >	ManipulatorRayOriginProperty
	ManipulatorRayOrigin property. More...
static PropertyType< Vector3 >	ManipulatorRayDirectionProperty
	ManipulatorRayDirection property. More...
static PropertyType< Vector2 >	HitTestPointProperty
	HitTestPoint property. More...
static PropertyType< Vector3 >	HitTestRayOriginProperty
	HitTestRayOrigin property. More...
static PropertyType< Vector3 >	HitTestRayDirectionProperty
	HitTestRayDirection property. More...
static PropertyType< void * >	HitTestObjectProperty
	HitTestObject property. More...

Detailed Description

Message arguments for input manipulator messages.

Member Function Documentation

static PropertyTypeEditorInfoSharedPtr kanzi::InputManipulator::InputMessageArguments::makeEditorInfo ( )

static

Vector2 kanzi::InputManipulator::InputMessageArguments::getPoint ( ) const

inline

The position of the primary touch point.

When hitting a 2D node, the value is in local space of the attached node or the provided reference node (see InputManipulator::setReferenceNode) When hitting a 3D node, the value is in local space of the enclosing viewport node.

void kanzi::InputManipulator::InputMessageArguments::setPoint ( Vector2  value )

inline

Vector3 kanzi::InputManipulator::InputMessageArguments::getRayOrigin ( ) const

inline

The origin of the pick ray in the local space of the enclosing viewport node.

ManipulatorRayOriginProperty is Provided when hitting a 3D node.

void kanzi::InputManipulator::InputMessageArguments::setRayOrigin ( Vector3  value )

inline

Vector3 kanzi::InputManipulator::InputMessageArguments::getRayDirection ( ) const

inline

Pick ray direction vector (normalized) in the local space of the enclosing viewport node.

ManipulatorRayDirectionProperty is provided when hitting a 3D node.

void kanzi::InputManipulator::InputMessageArguments::setRayDirection ( Vector3  value )

inline

Vector2 kanzi::InputManipulator::InputMessageArguments::getHitTestPoint ( ) const

inline

The position of the primary touch point in the object space of the node that generated the hit test.

When hitting a 2D node, the value is in screen space. When hitting a 3D node, the value is in local space of the hit test camera.

void kanzi::InputManipulator::InputMessageArguments::setHitTestPoint ( Vector2  value )

inline

Vector3 kanzi::InputManipulator::InputMessageArguments::getHitTestRayOrigin ( ) const

inline

Origin of the hit test ray in the local space of the hit test camera. Provided when hitting a 3D node.

void kanzi::InputManipulator::InputMessageArguments::setHitTestRayOrigin ( Vector3  value )

inline

Vector3 kanzi::InputManipulator::InputMessageArguments::getHitTestRayDirection ( ) const

inline

Hit test ray direction vector (normalized) in the local space of the hit test camera. Provided when hitting a 3D node.

void kanzi::InputManipulator::InputMessageArguments::setHitTestRayDirection ( Vector3  value )

inline

Member Data Documentation

PropertyType<Vector2> kanzi::InputManipulator::InputMessageArguments::ManipulatorPointProperty

static

ManipulatorPoint property.

The default value is Vector2(0.0f, 0.0f).

See also

setManipulatorPoint(), getManipulatorPoint()

PropertyType<Vector3> kanzi::InputManipulator::InputMessageArguments::ManipulatorRayOriginProperty

static

ManipulatorRayOrigin property.

The default value is Vector3(0.0f, 0.0f, 0.0f).

See also

setManipulatorRayOrigin(), getManipulatorRayOrigin()

PropertyType<Vector3> kanzi::InputManipulator::InputMessageArguments::ManipulatorRayDirectionProperty

static

ManipulatorRayDirection property.

The default value is Vector3(0.0f, 0.0f, -1.0f).

See also

setManipulatorRayDirection(), getManipulatorRayDirection()

PropertyType<Vector2> kanzi::InputManipulator::InputMessageArguments::HitTestPointProperty

static

HitTestPoint property.

The default value is Vector2(KZS_NAN, KZS_NAN).

See also

setHitTestPoint(), getHitTestPoint()

PropertyType<Vector3> kanzi::InputManipulator::InputMessageArguments::HitTestRayOriginProperty

static

HitTestRayOrigin property.

The default value is Vector3(0.0f, 0.0f, 0.0f).

See also

setHitTestRayOrigin(), getHitTestRayOrigin()

PropertyType<Vector3> kanzi::InputManipulator::InputMessageArguments::HitTestRayDirectionProperty

static

HitTestRayDirection property.

The default value is Vector3(0.0f, 0.0f, -1.0f).

See also

setHitTestRayDirection(), getHitTestRayDirection()

PropertyType<void*> kanzi::InputManipulator::InputMessageArguments::HitTestObjectProperty

static

HitTestObject property.

The default value is 0.

See also

setHitTestObject(), getHitTestObject()

---

The documentation for this class was generated from the following file:

• kanzi/core.ui/input/input_manipulator.hpp
