kanzi::InputManipulator Class Reference

The base class for the input manipulator. More...

#include <kanzi/core.ui/input/input_manipulator.hpp>

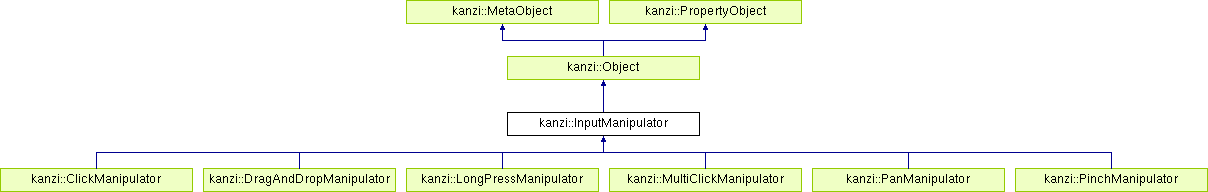

Inheritance diagram for kanzi::InputManipulator:

Classes
class	InputMessageArguments
	Message arguments for input manipulator messages. More...
struct	TouchInfo
	Structure to hold the state of the current touch points. More...

Public Types
enum	State {   StateReady, StatePossible, StateBegin, StateChange,   StateEnd, StateFail, StateDelayed, StateCanceled }
	Enumeration for possible input manipulator states during touch or mouse input sequence. More...
enum	TouchEventRoutingMode { RoutingBubbling, RoutingTunneling }
	Enumeration for the available touch event routing modes. More...
typedef vector< KzuInputTouchPoint * >	TouchPointsContainer
typedef TouchPointsContainer::const_iterator	TouchPointsConstIterator
Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr
typedef vector< PropertyStoragePtr >	PropertyStorageContainer
typedef PropertyStorageContainer::iterator	PropertyStorageIterator
typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator
typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Public Member Functions
virtual	~InputManipulator ()
	Destructor. More...
void	reset ()
	Reset the manipulator. More...
void	cancel ()
	Notify manipulator of touch canceling. More...
State	getState () const
	Get the state of the input manipulator. More...
void	setState (State state)
	Set the state of the input manipulator. More...
Node *	getAttachedNode () const
	Gets the node to which the input manipulator is attached. More...
void	requireToFail (InputManipulatorWeakPtr manipulatorToFail)
	Sets the input manipulator that must fail before Kanzi can recognize this input manipulator. More...
InputManipulatorWeakPtr	getFailManipulator () const
	Gets the fail manipulator. More...
InputManipulator *	getDependManipulator () const
	Gets the dependant input manipulator. More...
bool	isAttached () const
	Tells whether the input manipulator is attached to a node. More...
void	setReferenceNode (NodeWeakPtr referenceNode)
	Override the attached node as the hit test reference node. More...
void	setTouchEventRoutingMode (TouchEventRoutingMode mode)
	Sets the touch event routing mode that you want the input manager to use when distributing the touch points to manipulators. More...
TouchEventRoutingMode	getTouchEventRoutingMode ()
	Returns the current touch event routing mode. More...
Public Member Functions inherited from kanzi::Object
	Object (Domain *domain)
virtual	~Object ()
Domain *	getDomain () const
	Returns the domain the object belongs to. More...
KzuTaskScheduler *	getTaskScheduler () const
	Returns the task scheduler of the object. More...
KzuMessageDispatcher *	getMessageDispatcher () const
	Returns the message dispatcher of the object. More...
ResourceManager *	getResourceManager () const
	Returns the resource manager of the object. More...
virtual const Metaclass *	getDynamicMetaclass () const KZ_OVERRIDE
	Returns the metaclass of the dynamic type of the object. More...
AppliedStyleEntrySharedPtr	applyObjectStyle (kanzi::StyleSharedPtr style)
	Applies a style to an object. More...
void	unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)
void	applyObjectStyles ()
	Apply all styles for an object node. More...
void	unapplyObjectStyles ()
	Unapplies and removes all applied styles. More...
Public Member Functions inherited from kanzi::MetaObject
virtual	~MetaObject ()
bool	isTypeOf (const Metaclass *objectType) const
	Determines if the type of this object is the given type or derived from it. More...
Public Member Functions inherited from kanzi::PropertyObject
	PropertyObject ()
virtual	~PropertyObject ()
template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...
void	removeKzbProperties ()
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...
template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...
template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const
template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const
void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)
bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const
void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)
bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...
bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...
bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...
bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...
void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...
void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...
void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...
virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...
template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)
template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)
template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)
template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)
void	validatePropertyModifiers (AbstractPropertyType propertyType)
template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)
template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)
template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Protected Member Functions
	InputManipulator (Domain *domain)
	Constructor. More...
virtual void	onAttach ()
	Attach function for input manipulators. More...
virtual void	onDetach ()
	Detach function for input manipulators. More...
virtual void	onReset ()
	Reset function for input manipulators. Called when the manipulator is reset. More...
virtual void	onCancel ()
	Cancel function for input manipulators. More...
virtual void	onFail ()
	Fail function for input manipulators. More...
virtual void	notifyTouchInside (const TouchInfo &touchInfo)
	Notify the input manipulator about touch events that occur inside the subtree of the input manipulator. More...
virtual void	notifyTouchOutside (const TouchInfo &touchInfo)
	Notify the input manipulator about touch events that occur outside the subtree of the input manipulator. More...
void	addHitTestArguments (MessageArguments &message, const KzuInputTouchPoint &touchPoint)
	Add hit test information arguments to the message from the touch point. More...
Protected Member Functions inherited from kanzi::Object
void	initialize ()
void	onCopy (const Object &other)
Protected Member Functions inherited from kanzi::MetaObject
	MetaObject ()
void	initialize ()
Protected Member Functions inherited from kanzi::PropertyObject
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)
void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const
AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)
AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const
PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...
PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)
PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)
void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)
void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...
PropertyStorageContainer::iterator	beginPropertyStorage ()
PropertyStorageContainer::iterator	endPropertyStorage ()
virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)
void	onCopy (const PropertyObject &other)

Static Protected Member Functions
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

Friends
class	InputManager
class	InputManipulatorCollection
class	Node
class	PanManipulator

Additional Inherited Members
Static Public Member Functions inherited from kanzi::Object
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...
Static Public Member Functions inherited from kanzi::MetaObject
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...
Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtr >	AppliedStyleContainer
	Applied style container. More...
Protected Attributes inherited from kanzi::Object
AppliedStyleContainer	m_appliedStyles
	Listing of applied styles applied to this object. More...

Detailed Description

The base class for the input manipulator.

Use the input manipulators to recognize gestures, such as click or pinch, from incoming touch events. Kanzi does not differentiate touch events from mouse events.

To use an input manipulator on a node, add it to that node with the Node::addInputManipulator() method. You can add more than one input manipulator to a node, but you can use only one to recognize a gesture. When you want to handle more than one gesture on a node, link the input manipulators to each other in order of importance of the gestures that they recognize.

You can link input manipulators sequentially. For example, if you want a node to recognize the pan, double-click, and click gestures in this order, link the ClickManipulator to the MultiClickManipulator, and the MultiClickManipulator to the PanManipulator.

The linking of the manipulators is directional. The linked manipulator is called the depend manipulator and the manipulator the dependant is linked to is called the fail manipulator. You can link the two manipulators by calling requireToFail() on the fail manipulator, passing the dependant manipulator as argument.

To receive both click and multi-click messages on a node, you need to configure the click manipulator to wait for the failure of the multi-click manipulator:

        ClickManipulatorSharedPtr clickManipulator = ClickManipulator::create(domain);
        node->addInputManipulator(clickManipulator);

        MultiClickManipulatorSharedPtr doubleClickManipulator =
            MultiClickManipulator::create(domain);

        node->addInputManipulator(doubleClickManipulator);
        doubleClickManipulator->setExpectedClicks(2);

        MultiClickManipulatorSharedPtr tripleClickManipulator =
            MultiClickManipulator::create(domain);

        tripleClickManipulator->setExpectedClicks(3);
        node->addInputManipulator(tripleClickManipulator);

        // Configure the click manipulator to wait for the failure of the double-click manipulator.
        clickManipulator->requireToFail(doubleClickManipulator);

        // Configure the double-click manipulator to wait for the failure of the triple-click manipulator
        doubleClickManipulator->requireToFail(tripleClickManipulator);

Gesture recognition

Kanzi dispatches the touch points from the events to manipulators attached to nodes in phases:

1. Kanzi tunnels the touch points to nodes starting from the root node and ending at the hit test node. In this phase only the input manipulators that have the RoutingTunneling routing mode set receive the touch points for recognition.
2. Kanzi continues to bubble the touch points from the hit test node to the root node, updating the nodes with input manipulators that have the RoutingBubbling routing mode set.
3. Kanzi updates the input manipulators that are outside of the hierarchy of the hit test node.

The touch gesture recognition happens in the notifyTouchInside() or notifyTouchOutside() methods of an input manipulator. Every input manipulator attached to a hit test node receives all the touch points occurred in the application. In each input manipulator you must set the correct state to inform Kanzi that the input manipulator recognized a gesture. You do this by calling the setState() method with the apropriate State value.

When an input manipulator recognizes a touch event as a starting action of a gesture:

1. The manipulator enters the StatePossible state. Usually every input manipulator takes the first touch point as a possible starting point of the gesture it recognizes. In this phase, every input manipulator in the StatePossible state receives the touch event.
2. When a manipulator recognizes the incoming touch event as a comprehensive gesture, depending on the type of the gesture, this manipulator sets its state to either StateBegin, StateEnd, or StateFail state.
3. Manipulators which recognize gestures where the touch point location is not changing, such as click or multi-click, and gestures where the touch location is updated, set the state to StateEnd.
4. If the gesture recognition fails, manipulators set the StateFail state value. It is important that you mark the gesture recognition failure in the failing manipulator. This enables Kanzi to continue dispatching the touch event to the dependant manipulators. Kanzi calls onFail() method on the dependant manipulator linked, continuing the gesture recognition in that manipulator.

During and on gesture recognition, input manipulators can dispatch messages to the attached node, to inform the subscribed message handlers about the progress of the gesture.

See also

ClickManipulator, DragAndDropManipulator, LongPressManipulator, MultiClickManipulator, PanManipulator, PinchManipulator

Member Typedef Documentation

typedef vector<KzuInputTouchPoint*> kanzi::InputManipulator::TouchPointsContainer

typedef TouchPointsContainer::const_iterator kanzi::InputManipulator::TouchPointsConstIterator

Member Enumeration Documentation

enum kanzi::InputManipulator::State

Enumeration for possible input manipulator states during touch or mouse input sequence.

Enumerator
StateReady	The manipulator is in initial state.
StatePossible	The manipulator started processing, but has not yet recognized a gesture. The system can fail the manipulator automatically.
StateBegin	The manipulator recognized a continuous gesture.
StateChange	The manipulator recognized changes in a continuous gesture.
StateEnd	The manipulator finished recognizing a gesture.
StateFail	The manipulator failed recognizing a gesture.
StateDelayed	Not in use.
StateCanceled	Not in use.

enum kanzi::InputManipulator::TouchEventRoutingMode

Enumeration for the available touch event routing modes.

Enumerator
RoutingBubbling	Touch points are dispatched to the manipulators from the hit test node to the root node.
RoutingTunneling	Touch points are dispatched to the manipulators from the root node to the hit test node.

Constructor & Destructor Documentation

virtual kanzi::InputManipulator::~InputManipulator ( )

virtual

Destructor.

kanzi::InputManipulator::InputManipulator ( Domain *  domain )

explicitprotected

Constructor.

Member Function Documentation

void kanzi::InputManipulator::reset

(

)

Reset the manipulator.

When you reset a manipulator, you set its state to the initial state (StateReady).

void kanzi::InputManipulator::cancel

(

)

Notify manipulator of touch canceling.

State kanzi::InputManipulator::getState

(

)

const

Get the state of the input manipulator.

Returns

The current state of the input manipulator.

void kanzi::InputManipulator::setState

(

State

state

)

Set the state of the input manipulator.

Parameters

state

The new state of the input manipulator.

Node* kanzi::InputManipulator::getAttachedNode

(

)

const

Gets the node to which the input manipulator is attached.

Returns

The pointer to the node to which the input manipulator is attached. If the input manipulator is not attached to any node, nullptr.

void kanzi::InputManipulator::requireToFail

(

InputManipulatorWeakPtr

manipulatorToFail

)

Sets the input manipulator that must fail before Kanzi can recognize this input manipulator.

Parameters

manipulatorToFail

The manipulator whose failure is required in order for this manipulator to succeed.

InputManipulatorWeakPtr kanzi::InputManipulator::getFailManipulator

(

)

const

Gets the fail manipulator.

Returns

The input manipulator on which this input manipulator depends.

InputManipulator* kanzi::InputManipulator::getDependManipulator

(

)

const

Gets the dependant input manipulator.

When this input manipulator fails, Kanzi notifies the dependant input manipulator.

Returns

The manipulator object this manipulator depends on.

bool kanzi::InputManipulator::isAttached ( ) const

inline

Tells whether the input manipulator is attached to a node.

Returns

True, if the input manipulator is attached, otherwise false.

void kanzi::InputManipulator::setReferenceNode ( NodeWeakPtr  referenceNode )

inline

Override the attached node as the hit test reference node.

Parameters

referenceNode

The pointer to the reference node.

void kanzi::InputManipulator::setTouchEventRoutingMode ( TouchEventRoutingMode  mode )

inline

Sets the touch event routing mode that you want the input manager to use when distributing the touch points to manipulators.

The default mode is RoutingBubbling.

Set the mode to RoutingTunneling when you want Kanzi to recognize an underlying gesture before the gestures in the child nodes of the node with an input manipulator. For example, use the RoutingTunneling routing mode for a node with a two-finger pan input manipulator which has a Scroll View child node. With this setting the input manager recognizes the two-finger pan before the pan in the Scroll View node.

Parameters

mode	The touch event routing mode you want the input manager to use.

See also

TouchEventRoutingMode

TouchEventRoutingMode kanzi::InputManipulator::getTouchEventRoutingMode ( )

inline

Returns the current touch event routing mode.

Returns

The current touch event routing mode that the input manager uses.

virtual void kanzi::InputManipulator::onAttach ( )

protectedvirtual

Attach function for input manipulators.

Called when the manipulator is attached to a node.

virtual void kanzi::InputManipulator::onDetach ( )

protectedvirtual

Detach function for input manipulators.

Called when the manipulator is detached from a node.

virtual void kanzi::InputManipulator::onReset ( )

protectedvirtual

Reset function for input manipulators. Called when the manipulator is reset.

Reimplemented in kanzi::PanManipulator, kanzi::ClickManipulator, kanzi::PinchManipulator, kanzi::MultiClickManipulator, kanzi::DragAndDropManipulator, and kanzi::LongPressManipulator.

virtual void kanzi::InputManipulator::onCancel ( )

protectedvirtual

Cancel function for input manipulators.

Called when the gesture recognition for the manipulator is cancelled.

virtual void kanzi::InputManipulator::onFail ( )

protectedvirtual

Fail function for input manipulators.

Called by the dependant manipulator on gesture recognition failure.

Reimplemented in kanzi::ClickManipulator, and kanzi::MultiClickManipulator.

virtual void kanzi::InputManipulator::notifyTouchInside ( const TouchInfo &  touchInfo )

protectedvirtual

Notify the input manipulator about touch events that occur inside the subtree of the input manipulator.

Parameters

touchInfo

The available touch points, including those that occur over the attached node.

Reimplemented in kanzi::PanManipulator, kanzi::ClickManipulator, kanzi::PinchManipulator, kanzi::MultiClickManipulator, kanzi::DragAndDropManipulator, and kanzi::LongPressManipulator.

virtual void kanzi::InputManipulator::notifyTouchOutside ( const TouchInfo &  touchInfo )

protectedvirtual

Notify the input manipulator about touch events that occur outside the subtree of the input manipulator.

Parameters

touchInfo

The touch points ocurring outside of the subtree.

Reimplemented in kanzi::PanManipulator, kanzi::ClickManipulator, kanzi::PinchManipulator, kanzi::MultiClickManipulator, kanzi::DragAndDropManipulator, and kanzi::LongPressManipulator.

static PropertyTypeEditorInfoSharedPtr kanzi::InputManipulator::makeEditorInfo ( )

inlinestaticprotected

void kanzi::InputManipulator::addHitTestArguments ( MessageArguments &  message, const KzuInputTouchPoint &  touchPoint  )

protected

Add hit test information arguments to the message from the touch point.

Derive local point and manipulator node from touch point.

Parameters

message	Target message.
touchPoint	Current touch point.

Friends And Related Function Documentation

friend class InputManager

friend

friend class InputManipulatorCollection

friend

friend class Node

friend

friend class PanManipulator

friend

---

The documentation for this class was generated from the following file:

• kanzi/core.ui/input/input_manipulator.hpp
