Profiles the execution time of main loop tasks. More...

#include <kanzi/core/profiling/main_loop_task_profiler.hpp>

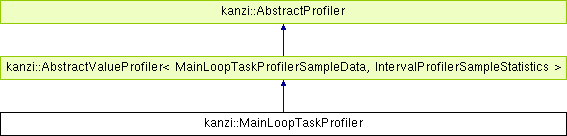

Inheritance diagram for kanzi::MainLoopTaskProfiler:

Public Types
typedef AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >	BaseValueProfiler
	The typedef of the base value profiler class. More...

Public Types inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
typedef function< void(AbstractValueProfiler &)>	FullBufferCallback
	The typedef used for full buffer callback. More...

typedef weak_ptr< void >	FullBufferCallbackHandle
	The typedef used for full buffer callback handle. More...

Public Types inherited from kanzi::AbstractProfiler
enum	DataType { DataTypeNotDefined, DataTypeBoolean, DataTypeUint64, DataTypeFloat, DataTypeString }
	Supported profiling data field value types. More...

typedef variant< monostate, bool, uint64_t, float, string >	Value
	Container for profiling data field value. More...

Public Member Functions
void	addSample (MainLoopTaskProfilerSampleData sample)
	Adds a new profiling data sample to the profiler. More...

void	resetSampleData ()
	Resets sample data. More...

const MainLoopTaskProfilerSampleData &	getSample (size_t index) const
	Accesses a profiling data sample stored in the sample buffer. More...

const IntervalProfilerSampleStatistics &	getProfilingStatistics () const
	Gets a reference to main loop task profiling statistics. More...

Public Member Functions inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
FullBufferCallbackHandle	addFullBufferCallback (FullBufferCallback callback)
	Adds a new full buffer callback. More...

void	removeFullBufferCallback (const FullBufferCallbackHandle &callbackHandle)
	Removes a full buffer callback. More...

void	resetSampleData ()
	Resets the aggregate profiling data and sample buffer. More...

Public Member Functions inherited from kanzi::AbstractProfiler
virtual	~AbstractProfiler ()
	Destructor. More...

string_view	getName () const
	Gets the name of the profiler. More...

const ProfilingCategory &	getCategory () const
	Gets a reference to the profiling category assigned to the profiler. More...

size_t	getAggregateDataFieldCount () const
	Gets the number of aggregate data fields. More...

string	getAggregateDataFieldName (size_t fieldIndex) const
	Gets the name of an aggregate data field. More...

Value	getAggregateDataFieldValue (size_t fieldIndex) const
	Gets the value of an aggregate profiling data field. More...

size_t	getSampleFieldCount () const
	Gets the number of sample data fields. More...

string	getSampleFieldName (size_t fieldIndex) const
	Gets the name of a data sample field. More...

size_t	getSampleCount () const
	Gets the number of collected profiling data samples. More...

Value	getSampleFieldValue (size_t sampleIndex, size_t fieldIndex) const
	Gets the value of a profiling data sample field. More...

void	logAggregateData () const
	Logs aggregate profiling data. More...

void	logAllData () const
	Logs all profiling data. More...

Static Public Member Functions
static MainLoopTaskProfilerSharedPtr	create (string_view name, const ProfilingCategory &category, size_t sampleBufferSize)
	Creates a new main loop task profiler. More...

Static Public Member Functions inherited from kanzi::AbstractProfiler
static DataType	getDataType (const Value &value)
	Gets the type of the data stored in a profiling data field. More...

Protected Member Functions
	MainLoopTaskProfiler (string_view name, const ProfilingCategory &category, size_t sampleBufferSize)
	Constructor. More...

	MainLoopTaskProfiler (const MainLoopTaskProfiler &rhs) KZ_DELETED_FUNCTION
	Deleted copy constructor, preventing copying of the object. More...

MainLoopTaskProfiler &	operator= (const MainLoopTaskProfiler &rhs) KZ_DELETED_FUNCTION
	Deleted assignment operator, preventing assignment of the object. More...

virtual size_t	getAggregateDataFieldCountOverride () const KZ_OVERRIDE
	The override of AbstractProfiler::getAggregateDataFieldCountOverride(). More...

virtual string	getAggregateDataFieldNameOverride (size_t fieldIndex) const KZ_OVERRIDE
	The override of AbstractProfiler::getAggregateDataFieldNameOverride(). More...

virtual size_t	getSampleFieldCountOverride () const KZ_OVERRIDE
	The override of AbstractProfiler::getSampleFieldCountOverride(). More...

virtual string	getSampleFieldNameOverride (size_t fieldIndex) const KZ_OVERRIDE
	The override of AbstractProfiler::getSampleFieldNameOverride(). More...

virtual Value	getAggregateDataFieldValueOverride (size_t fieldIndex) const KZ_OVERRIDE
	The override of AbstractProfiler::getAggregateDataFieldValueOverride(). More...

virtual Value	getSampleFieldValueOverride (size_t sampleIndex, size_t fieldIndex) const KZ_OVERRIDE
	The override of AbstractProfiler::getSampleFieldValueOverride(). More...

Protected Member Functions inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
	AbstractValueProfiler (string_view name, const ProfilingCategory &category, size_t sampleBufferSize)
	Constructor. More...

const MainLoopTaskProfilerSampleData &	getSample (size_t index) const
	Accesses a profiling data sample stored in the sample buffer. More...

void	checkBufferFull ()
	Performs all buffer full callbacks and clears samples if buffer is full. More...

void	addSample (const MainLoopTaskProfilerSampleData &sample)
	Adds a new profiling data sample. More...

void	addSample (KZ_RV_REF(MainLoopTaskProfilerSampleData) sample)
	Adds a new movable profiling data sample to the profiler. More...

virtual size_t	getSampleCountOverride () const KZ_OVERRIDE
	Override of #AbstractProfiler::getSampleCountOverride(). More...

Protected Member Functions inherited from kanzi::AbstractProfiler
	AbstractProfiler (string_view name, const ProfilingCategory &category)
	Constructor. More...

virtual void	logAggregateDataOverride () const
	To implement your own logging of aggregate profiling data, override this function in the derived profiler class. More...

virtual void	logAllDataOverride () const
	To implement your own logging of all profiling data, override this function in the derived profiler class. More...

Additional Inherited Members
Protected Types inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
typedef MainLoopTaskProfilerSampleData	SampleDataType
	The sample data type typedef used in derived classes. More...

typedef IntervalProfilerSampleStatistics	AggregateProfilingDataType
	The aggregate profiling data type typedef used in derived classes. More...

typedef shared_ptr< FullBufferCallback >	FullBufferCallbackSharedPtr
	The typedef used for shared pointer to full buffer callback. More...

typedef vector< FullBufferCallbackSharedPtr >	FullBufferCallbackContainer
	The typedef used for container of full buffer callback shared pointers. More...

Static Protected Member Functions inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
static void	invokeBufferFullCallback (AbstractValueProfiler &profiler, FullBufferCallbackSharedPtr &callback)
	Internal helper function used by checkBufferFull. More...

Protected Attributes inherited from kanzi::AbstractValueProfiler< MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics >
IntervalProfilerSampleStatistics	m_aggregateProfilingData
	The aggregate profiling data. More...

Detailed Description

Profiles the execution time of main loop tasks.

The main loop task profiler collects samples of type MainLoopTaskProfilerSampleData, which include information about interval duration, start point, and main loop counter identifying the main loop iteration when the interval was measured.

For details on the information included in the sample, see MainLoopTaskProfilerSampleData. For an example of how the profiling sample is collected in main loop task profiling, see MainLoopTaskProfilingSampler.

The MainLoopTaskProfilerSampleData keeps samples in a circular sample buffer. Every time a new sample is added to the profiler, the statistics data is updated. To access the statistics data, use getProfilingStatistics().

Member Typedef Documentation

typedef AbstractValueProfiler<MainLoopTaskProfilerSampleData, IntervalProfilerSampleStatistics> kanzi::MainLoopTaskProfiler::BaseValueProfiler

The typedef of the base value profiler class.

Constructor & Destructor Documentation

kanzi::MainLoopTaskProfiler::MainLoopTaskProfiler	(	string_view	name,
		const ProfilingCategory &	category,
		size_t	sampleBufferSize
	)

explicitprotected

Constructor.

Parameters

name	The name of the profiler.
category	The category assigned to the profiler.
sampleBufferSize	The maximum size of the sample buffer.

kanzi::MainLoopTaskProfiler::MainLoopTaskProfiler ( const MainLoopTaskProfiler & rhs )

explicitprotected

Deleted copy constructor, preventing copying of the object.

Member Function Documentation

static MainLoopTaskProfilerSharedPtr kanzi::MainLoopTaskProfiler::create	(	string_view	name,
		const ProfilingCategory &	category,
		size_t	sampleBufferSize
	)

static

Creates a new main loop task profiler.

Parameters

name	The name of the new profiler.
category	The profiling category assigned to the profiler.
sampleBufferSize	The maximum size of the profiling sample buffer.

Returns: The unique pointer to the new profiler.

void kanzi::MainLoopTaskProfiler::addSample ( MainLoopTaskProfilerSampleData sample )

Adds a new profiling data sample to the profiler.

Parameters

sample The profiling data sample.

void kanzi::MainLoopTaskProfiler::resetSampleData ( )

Resets sample data.

Clears sample buffer and resets sample statistics.

const MainLoopTaskProfilerSampleData& kanzi::MainLoopTaskProfiler::getSample ( size_t index ) const

inline

Accesses a profiling data sample stored in the sample buffer.

Parameters

index The index of the sample.

Returns: The profiling data sample.

const IntervalProfilerSampleStatistics& kanzi::MainLoopTaskProfiler::getProfilingStatistics ( ) const

inline

Gets a reference to main loop task profiling statistics.

Returns: The reference to main loop task profiling statistics.

MainLoopTaskProfiler& kanzi::MainLoopTaskProfiler::operator= ( const MainLoopTaskProfiler & rhs )

protected

Deleted assignment operator, preventing assignment of the object.

virtual size_t kanzi::MainLoopTaskProfiler::getAggregateDataFieldCountOverride ( ) const

protectedvirtual

The override of AbstractProfiler::getAggregateDataFieldCountOverride().

Returns: The number of aggregate data fields.

Implements kanzi::AbstractProfiler.

virtual string kanzi::MainLoopTaskProfiler::getAggregateDataFieldNameOverride ( size_t fieldIndex ) const

protectedvirtual

The override of AbstractProfiler::getAggregateDataFieldNameOverride().

Parameters

fieldIndex The index of the field.

Returns: The number of aggregate data fields.

Implements kanzi::AbstractProfiler.

virtual size_t kanzi::MainLoopTaskProfiler::getSampleFieldCountOverride ( ) const

protectedvirtual

The override of AbstractProfiler::getSampleFieldCountOverride().

Returns: The number of sample data fields.

Implements kanzi::AbstractProfiler.

virtual string kanzi::MainLoopTaskProfiler::getSampleFieldNameOverride ( size_t fieldIndex ) const

protectedvirtual

The override of AbstractProfiler::getSampleFieldNameOverride().

Parameters

fieldIndex The index of the sample field.

Returns: The name of the sample field.

Implements kanzi::AbstractProfiler.

virtual Value kanzi::MainLoopTaskProfiler::getAggregateDataFieldValueOverride ( size_t fieldIndex ) const

protectedvirtual

The override of AbstractProfiler::getAggregateDataFieldValueOverride().

Parameters

fieldIndex The index of the aggregate profiling data field.

Returns: The value of the aggregate profiling data field.

Implements kanzi::AbstractProfiler.

virtual Value kanzi::MainLoopTaskProfiler::getSampleFieldValueOverride	(	size_t	sampleIndex,
		size_t	fieldIndex
	)		const

protectedvirtual

The override of AbstractProfiler::getSampleFieldValueOverride().

Parameters

sampleIndex	The index of the profiling data sample.
fieldIndex	The index of the profiling data sample field.

Returns: The value of the profiling data sample field.

Implements kanzi::AbstractProfiler.

The documentation for this class was generated from the following file:

kanzi/core/profiling/main_loop_task_profiler.hpp
