kanzi::PropertyObject Class Reference

PropertyObject is the base class that supports setting and retrieving properties. More...

#include <kanzi/core/property/property_object.hpp>

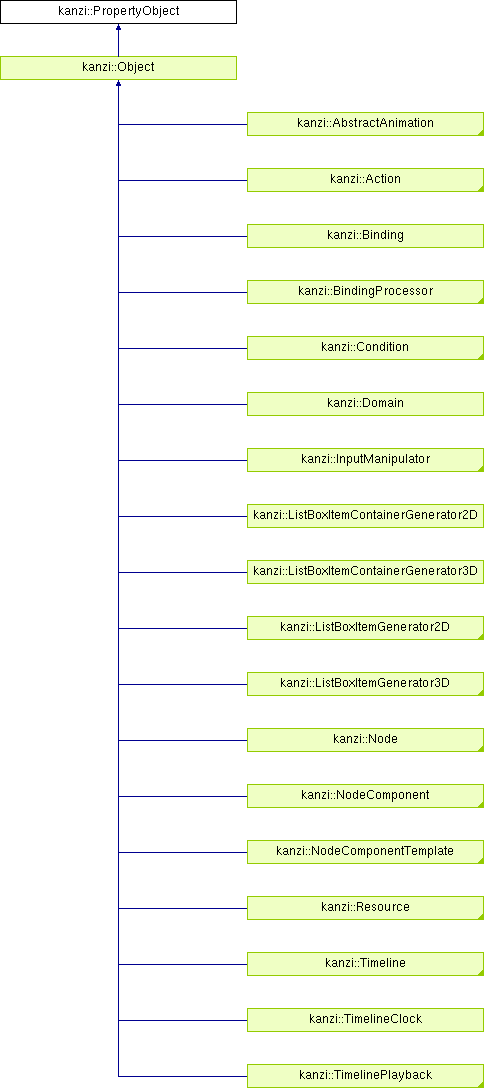

Inheritance diagram for kanzi::PropertyObject:

Public Types
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr
typedef vector< PropertyStoragePtr >	PropertyStorageContainer
typedef PropertyStorageContainer::iterator	PropertyStorageIterator
typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator
typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Public Member Functions
	PropertyObject ()
virtual	~PropertyObject ()
template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...
void	removeKzbProperties ()
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...
template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...
template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const
template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const
template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const
void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)
bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const
void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)
bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...
bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...
bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...
bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...
void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...
void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...
void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...
virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...
template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)
template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)
template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)
template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)
void	validatePropertyModifiers (AbstractPropertyType propertyType)
template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)
template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)
template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Protected Member Functions
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)
void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const
AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const
AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)
AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const
PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...
PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)
PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)
AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)
AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)
void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)
void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...
PropertyStorageContainer::iterator	beginPropertyStorage ()
PropertyStorageContainer::iterator	endPropertyStorage ()
virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)
void	onCopy (const PropertyObject &other)

Detailed Description

PropertyObject is the base class that supports setting and retrieving properties.

See PropertyType, AbstractPropertyType, DynamicPropertyType.

Member Typedef Documentation

typedef intrusive_ptr<AbstractPropertyTypeDescriptor::PropertyStorage> kanzi::PropertyObject::PropertyStoragePtr

typedef vector<PropertyStoragePtr> kanzi::PropertyObject::PropertyStorageContainer

typedef PropertyStorageContainer::iterator kanzi::PropertyObject::PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator kanzi::PropertyObject::PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator kanzi::PropertyObject::PropertyStorageReverseIterator

Constructor & Destructor Documentation

kanzi::PropertyObject::PropertyObject ( )

explicit

virtual kanzi::PropertyObject::~PropertyObject ( )

virtual

Member Function Documentation

template<typename DataType >

void kanzi::PropertyObject::setProperty ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Traits::ParameterType  value  )

inline

Sets the local value of a property.

Parameters

propertyType	The property type identifying the property to set.
value	The value to set.

void kanzi::PropertyObject::removeKzbProperties

(

)

template<typename DataType >

PropertyType<DataType>::Traits::ReturnType kanzi::PropertyObject::getProperty ( const PropertyType< DataType > &  propertyType ) const

inline

Returns the current value of a property.

The value returned by this function is the result of the property system evaluating the inputs that can affect the values of properties. The final value is calculated by determining the base value of the property and applying existing modifiers to it.

Base value is affected by the following inputs where the highest entry in the list determines the base value:

1. Local value set with setProperty or loaded from kzb
2. Value set by a style affecting the property.
3. Value defined by class metadata.

When the base value is determined the system applies modifiers to the value that can change the value or replace it completely. The following is the list of possible modifiers, where the order of evaluation is determined by the order the modifiers were added or applied.

1. Values defined is states of state manager.
2. Animations.

If no inputs to the property value can be established the system returns the value registered in the property type metadata.

Parameters

propertyType

The property type identifying the property to retrieve.

Returns

Returns the evaluated property value.

template<typename DataType >

optional<typename PropertyType<DataType>::Traits::ReturnType> kanzi::PropertyObject::getOptionalProperty ( const PropertyType< DataType > &  propertyType ) const

inline

Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value.

Parameters

propertyType	The property type identifying the property to retrieve.
value	The reference that receives the value the function evaluates. The reference is not modified if there are no inputs to the property value.

Returns

Returns an optional value that is left empty if the property was not found.

template<typename DataType >

PropertyType<DataType>::Traits::ReturnType kanzi::PropertyObject::getPropertyBase ( const PropertyType< DataType > &  propertyType ) const

inline

Returns the current value of a property disregarding modifiers.

Base value is affected by the following inputs where the highest entry in the list determines the base value:

1. Local value set with setProperty or loaded from kzb
2. Value set by a style affecting the property.
3. Value defined by class metadata.

Modifiers are not applied, the highest-priority base value is returned.

If no inputs to the property value can be established the system returns the value default value from property type metadata.

Parameters

propertyType

The property type identifying the property to retrieve.

Returns

Returns the evaluated property value.

template<typename DataType >

void kanzi::PropertyObject::setAbstractProperty ( AbstractPropertyType  abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType  value  )

inline

template<typename DataType >

PropertyType<DataType>::Traits::ReturnType kanzi::PropertyObject::getAbstractProperty ( AbstractPropertyType  abstractPropertyType ) const

inline

template<typename DataType >

PropertyType<DataType>::Traits::ReturnType kanzi::PropertyObject::getAbstractPropertyBase ( AbstractPropertyType  abstractPropertyType ) const

inline

template<typename DataType >

optional<typename PropertyType<DataType>::Traits::ReturnType> kanzi::PropertyObject::getOptionalAbstractProperty ( AbstractPropertyType  abstractPropertyType ) const

inline

void kanzi::PropertyObject::setPropertyFlag	(	AbstractPropertyType	propertyType,
		uint32_t	flag
	)

bool kanzi::PropertyObject::isPropertyFlagSet	(	AbstractPropertyType	propertyType,
		uint32_t	flag
	)		const

void kanzi::PropertyObject::clearPropertyFlag	(	AbstractPropertyType	propertyType,
		uint32_t	flag
	)

bool kanzi::PropertyObject::hasValue

(

AbstractPropertyType

propertyType

)

const

Evaluates whether there are any inputs into the property value.

Both value sources and modifiers are taken into account.

Parameters

propertyType

The property type identifying the property to evaluate.

Returns

Returns true if there are inputs into the property value, false otherwise.

bool kanzi::PropertyObject::hasBaseValue

(

AbstractPropertyType

propertyType

)

const

Evaluates whether there are any inputs into the property value, disregarding modifiers.

Does not take modifiers into account.

Parameters

propertyType

The property type identifying the property to evaluate.

Returns

Returns true if there are inputs into the property value, false otherwise.

bool kanzi::PropertyObject::hasLocalValue

(

AbstractPropertyType

propertyType

)

const

Evaluates whether there is a local value set for the property.

Local values are set with setProperty or loaded from kzb.

Parameters

propertyType

The property type identifying the property to evaluate.

Returns

Returns true if there is a local value for the property.

bool kanzi::PropertyObject::hasNonClassValue

(

AbstractPropertyType

propertyType

)

const

Evaluates whether there is a value of any precedence higher than class default value set for the property.

Parameters

propertyType

The property type identifying the property to evaluate.

Returns

Returns true if there is a non-class value for the property.

void kanzi::PropertyObject::removeLocalValue

(

AbstractPropertyType

propertyType

)

Removes the local value associated with the property.

Parameters

propertyType

The property type identifying the property to evaluate.

void kanzi::PropertyObject::copyLocalValue	(	const PropertyObject &	other,
		AbstractPropertyType	propertyType
	)

Copies local value of single property from another object.

Parameters

other	The object from which to copy the value.
propertyType	Property type to copy.

void kanzi::PropertyObject::copyLocalValues

(

const PropertyObject &

other

)

Copies all local values from another object.

Parameters

other

The object from which to copy the values.

virtual void kanzi::PropertyObject::onPropertyChanged ( AbstractPropertyType  propertyType, PropertyNotificationReason  reason  )

virtual

Virtual function to handle property change notifications.

Classes deriving from Object can override this function to monitor changes of properties.

Parameters

propertyType	The property type identifying the property that has changed.
reason	The reason that caused the property notification to be invoked.

Reimplemented in kanzi::Brush, kanzi::PropertyDrivenAnimationPlayer, kanzi::BlitRenderPass, kanzi::TextureBrush, kanzi::Material, kanzi::ColorBrush, kanzi::MaterialBrush, kanzi::DrawObjectsWithMaterialRenderPass, kanzi::ResourceDictionarySelector, and kanzi::MaterialSetupRenderPass.

template<typename DataType >

void kanzi::PropertyObject::addPropertyValueSource ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *  valueSource, PropertyValuePrecedence  precedence, void *  owner  )

inline

template<typename DataType >

void kanzi::PropertyObject::removePropertyValueSource ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *  valueSource, void *  owner  )

inline

template<typename DataType >

void kanzi::PropertyObject::addPropertyModifier ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback  callback, void *  owner  )

inline

template<typename DataType >

void kanzi::PropertyObject::removePropertyModifier ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback  callback, void *  owner  )

inline

void kanzi::PropertyObject::validatePropertyModifiers

(

AbstractPropertyType

propertyType

)

template<typename DataType >

void kanzi::PropertyObject::addPropertyNotificationHandler ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback  callback, void *  owner  )

inline

template<typename DataType >

void kanzi::PropertyObject::removePropertyNotificationHandler ( const PropertyType< DataType > &  propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback  callback, void *  owner  )

inline

template<typename DataType >

size_t kanzi::PropertyObject::getPropertyNotificationHandlerCount ( const PropertyType< DataType > &  propertyType )

inline

Gets number of current notification handlers for given property type.

void kanzi::PropertyObject::addPropertyValueSource ( AbstractPropertyTypeDescriptor &  descriptor, AbstractPropertyTypeDescriptor::ValueSource *  valueSource, PropertyValuePrecedence  precedence, void *  owner  )

protected

void kanzi::PropertyObject::removePropertyValueSource ( AbstractPropertyTypeDescriptor &  descriptor, AbstractPropertyTypeDescriptor::ValueSource *  valueSource, void *  owner  )

protected

AbstractPropertyTypeDescriptor::ValueSourceEntry* kanzi::PropertyObject::getTopValueSourceEntry ( AbstractPropertyTypeDescriptor::PropertyStorage &  propertyStorage ) const

protected

AbstractPropertyTypeDescriptor::ValueSourceEntry* kanzi::PropertyObject::getTopValueSourceEntry ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

AbstractPropertyTypeDescriptor::ValueSource* kanzi::PropertyObject::getTopValueSource ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

AbstractPropertyTypeDescriptor::ValueSource* kanzi::PropertyObject::getFinalValueSource ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

AbstractPropertyTypeDescriptor::ValueSource* kanzi::PropertyObject::getNonClassValueSource ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

AbstractPropertyTypeDescriptor::ValueSource* kanzi::PropertyObject::getClassValueSource ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

AbstractPropertyTypeDescriptor::ValueSourceEntry* kanzi::PropertyObject::findLocalValueSourceEntry ( AbstractPropertyTypeDescriptor::PropertyStorage &  propertyStorage )

protected

AbstractPropertyTypeDescriptor::ValueSourceEntry* kanzi::PropertyObject::constructLocalValueSourceEntry ( AbstractPropertyTypeDescriptor &  descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &  propertyStorage  )

protected

AbstractPropertyTypeDescriptor::ValueSourceEntry* kanzi::PropertyObject::acquireLocalValueSourceEntry ( AbstractPropertyTypeDescriptor &  descriptor, PropertyStoragePtr &  propertyStorage  )

protected

AbstractPropertyTypeDescriptor::PropertyStorage* kanzi::PropertyObject::findPropertyStorage ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

PropertyStoragePtr kanzi::PropertyObject::findPropertyStoragePtr ( AbstractPropertyTypeDescriptor &  descriptor ) const

protected

Gets property storage intrusive pointer that can be used to hold a reference until end of operation.

Parameters

descriptor

Descriptor to look with.

Returns

Intrusive pointer to property storage.

PropertyStoragePtr kanzi::PropertyObject::constructPropertyStorage ( AbstractPropertyTypeDescriptor &  descriptor )

protected

PropertyStoragePtr kanzi::PropertyObject::acquirePropertyStorage ( AbstractPropertyTypeDescriptor &  descriptor )

protected

AbstractPropertyTypeDescriptor::ModifierStorage* kanzi::PropertyObject::acquireModifierStorage ( AbstractPropertyTypeDescriptor &  descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &  propertyStorage  )

protected

AbstractPropertyTypeDescriptor::ModifierStorage* kanzi::PropertyObject::findModifierStorage ( AbstractPropertyTypeDescriptor &  descriptor )

protected

AbstractPropertyTypeDescriptor::NotificationStorage* kanzi::PropertyObject::acquireNotificationStorage ( AbstractPropertyTypeDescriptor &  descriptor )

protected

AbstractPropertyTypeDescriptor::NotificationStorage* kanzi::PropertyObject::findNotificationStorage ( AbstractPropertyTypeDescriptor &  descriptor )

protected

AbstractPropertyTypeDescriptor* kanzi::PropertyObject::findPropertyTypeDescriptorByUnqualifiedNameAndDataType ( string_view  unqualifiedName, PropertyDataType  dataType  )

protected

void kanzi::PropertyObject::validatePropertyModifiersAndNotifyHandlers ( PropertyStoragePtr &  propertyStorage )

protected

void kanzi::PropertyObject::copyLocalValue ( const AbstractPropertyTypeDescriptor::PropertyStorage &  otherPropertyStorage )

protected

Copy local value from property storage.

Parameters

propertyStorage

Property storage to copy from.

PropertyStorageContainer::iterator kanzi::PropertyObject::beginPropertyStorage ( )

inlineprotected

PropertyStorageContainer::iterator kanzi::PropertyObject::endPropertyStorage ( )

inlineprotected

virtual void kanzi::PropertyObject::notifyPropertyHandlers ( PropertyStoragePtr &  propertyStorage, PropertyNotificationReason  reason  )

protectedvirtual

Reimplemented in kanzi::Node.

void kanzi::PropertyObject::onCopy ( const PropertyObject &  other )

protected

---

The documentation for this class was generated from the following file:

• kanzi/core/property/property_object.hpp
