kanzi::Slider2D Class Reference

Examples

More...

#include <kanzi/ui/node/slider2d.hpp>

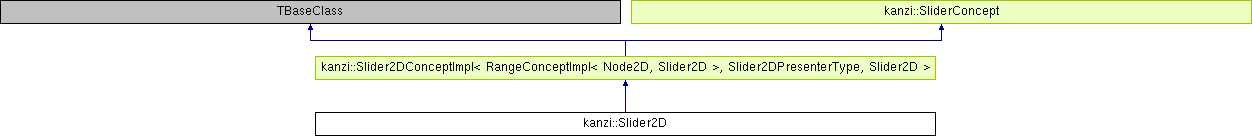

Inheritance diagram for kanzi::Slider2D:

Public Types
typedef Slider2DConceptImplType	ConceptClass
	Slider concept implementation, defining the base class (Component) and presenter (TrajectoryLayout2D). More...
typedef Slider2DPresenterType	PresenterClass
Public Types inherited from kanzi::Slider2DConceptImpl< TBaseClass, TPresenterClass, TDerivedClass >
typedef shared_ptr< TPresenterClass >	PresenterSharedPtr
typedef TPresenterClass	PresenterClass

Static Public Member Functions
static Slider2DSharedPtr	create (Domain *domain, string_view name)
	Creates a Slider3D node. More...
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
Static Public Member Functions inherited from kanzi::Slider2DConceptImpl< TBaseClass, TPresenterClass, TDerivedClass >
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
Static Public Member Functions inherited from kanzi::SliderConcept
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

Protected Member Functions
	Slider2D (Domain *domain, string_view name)
	Constructor. More...
Protected Member Functions inherited from kanzi::Slider2DConceptImpl< TBaseClass, TPresenterClass, TDerivedClass >
virtual void	onNodePropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason) KZ_OVERRIDE
void	findLayout ()
virtual void	onAttached () KZ_OVERRIDE
virtual Vector2	measureOverride (Vector2 availableSize) KZ_OVERRIDE
	Node2D::measureOverride() implementation. More...
virtual void	arrangeOverride (Vector2 actualSize) KZ_OVERRIDE
	Node2D::arrangeOverride() implementation. More...

Additional Inherited Members
Public Member Functions inherited from kanzi::Slider2DConceptImpl< TBaseClass, TPresenterClass, TDerivedClass >
void	hitPointChanged ()
void	initialize ()
const PresenterSharedPtr &	getPresenter () const
	Slider2DConceptImpl (Domain *domain, string_view name)
float	getMaxDistanceFromCurve () const
	Gets the value of MaxDistanceFromCurveProperty. More...
void	setMaxDistanceFromCurve (float value)
	Sets the value of MaxDistanceFromCurveProperty. More...
Static Public Attributes inherited from kanzi::SliderConcept
static PropertyType< float >	MaxDistanceFromCurveProperty
	MaxDistanceFromCurve property. More...

Detailed Description

Examples

To create a Slider 2D node with a custom appearance:

        // Create a Slider 2D node named Custom 2D slider.
        Slider2DSharedPtr slider = Slider2D::create(domain, "Custom 2D slider");
        // Set the size of the Slider 2D node to be 400 pixels wide and 200 pixels high.
        slider->setSize(400.0f, 200.0f);

        // Use the Trajectory Layout 2D node to define the rail along which the knob of the slider moves.
        // Create a Trajectory Layout 2D node named Slider rail.
        TrajectoryLayout2DSharedPtr trajectoryLayout = TrajectoryLayout2D::create(domain, "Slider rail");

        // Use the Image node to define the look of the knob that moves on the slider rail.
        // Create an Image node named Slider knob.
        Image2DSharedPtr knob = Image2D::create(domain, "Slider knob");
        // Set the Image node to be the child of the trajectoryLayout Trajectory Layout 2D node.
        trajectoryLayout->addChild(knob);

        // Create an alias pointing to the Trajectory Layout 2D node that defines the slider rail.
        ResourceID alias("$layout");
        string path("obj:///" + trajectoryLayout->getName());
        // Add the alias to the resource dictionary of the Slider 2D node.
        slider->addResource(alias, path);

        // Add the layout as a child node of the Slider 2D node.
        // You can place the Trajectory Layout 2D node that defines the rail anywhere
        // in the scene graph and it does not have to be the direct child of the Slider 2D node.
        slider->addChild(trajectoryLayout);

        // Create the trajectory of the Trajectory Layout 2D node that is used as the rail of the Slider 2D node.
        // Create a line trajectory on the x axis, that is 350 pixels long, and name it Line trajectory.
        TrajectorySharedPtr trajectory = Trajectory::createLine(Vector3(), Vector3(1.0f, 0.0f, 0.0f), 350.0f, domain, "Line trajectory");
        // Set the Trajectory Layout 2D node to use the line trajectory.
        trajectoryLayout->setTrajectory(trajectory);

        // Set the Trajectory Layout 2D node so that it sets its size
        // based on the size of its parent node (in this case the Slider 2D node).
        trajectoryLayout->setHorizontalAlignment(Node::HorizontalAlignmentStretch);
        trajectoryLayout->setVerticalAlignment(Node::VerticalAlignmentStretch);

        // The knob movement on the rail is based on modifying the TrajectoryLayout2D::StaticTrajectoryOffsetProperty
        // which is set based on the Slider2D::ValueProperty.
        // "../.." is the path from the knob (Image node) to the Slider 2D node.
        BindingSharedPtr binding = Binding::create(domain, "../..", Slider2D::ValueProperty,
                                                                   PropertyFieldWhole,
                                                                   TrajectoryLayout2D::OverrideOffsetProperty,
                                                                   PropertyFieldWhole);

        // Add the Slider 2D node to the Viewport 2D node.
        viewportNode->addChild(slider);

        // Get the knob instance from the instance of the prefab template.
        Node2DSharedPtr knobInstance = slider->getPresenter()->getLayout()->getChild(0);
        // Add to the knob the binding that enables the knob to move on the rail.
        knobInstance->addBinding(binding);

Member Typedef Documentation

typedef Slider2DConceptImplType kanzi::Slider2D::ConceptClass

Slider concept implementation, defining the base class (Component) and presenter (TrajectoryLayout2D).

typedef Slider2DPresenterType kanzi::Slider2D::PresenterClass

Constructor & Destructor Documentation

kanzi::Slider2D::Slider2D ( Domain *  domain, string_view  name  )

explicitprotected

Constructor.

Parameters

domain	The UI domain the new node belongs to.
name	The name of the node.

Member Function Documentation

static Slider2DSharedPtr kanzi::Slider2D::create ( Domain *  domain, string_view  name  )

static

Creates a Slider3D node.

Parameters

domain	The UI domain the new node belongs to.
name	The name of the stack layout.

static PropertyTypeEditorInfoSharedPtr kanzi::Slider2D::makeEditorInfo ( )

static

---

The documentation for this class was generated from the following file:

• kanzi/ui/node/slider2d.hpp
