kanzi::MessageTrigger Class Reference

Message handler trigger. More...

#include <kanzi/core.ui/trigger/message_trigger.hpp>

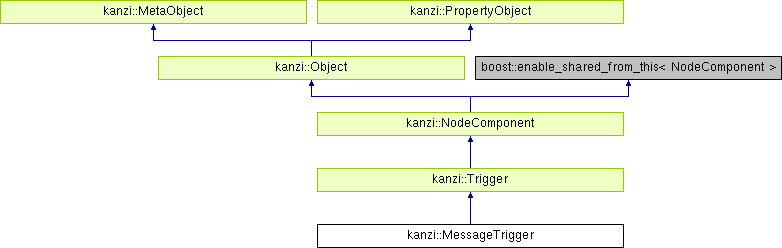

Inheritance diagram for kanzi::MessageTrigger:
kanzi::Trigger kanzi::NodeComponent kanzi::Object kanzi::MetaObject kanzi::PropertyObject

Static Public Member Functions

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()

static MessageTriggerSharedPtr create (Domain *domain, string_view name)

- Static Public Member Functions inherited from kanzi::NodeComponent
static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()

- Static Public Member Functions inherited from kanzi::Object
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Static Public Member Functions inherited from kanzi::MetaObject
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...


Protected Member Functions

 MessageTrigger (Domain *domain, string_view name)

virtual void attachOverride () KZ_OVERRIDE
 NodeComponent::attachOverride() implementation. More...

virtual void detachOverride () KZ_OVERRIDE
 NodeComponent::detachOverride() implementation. More...

void messageNotification (MessageArguments &)

- Protected Member Functions inherited from kanzi::Trigger
 Trigger (Domain *domain, string_view name)

- Protected Member Functions inherited from kanzi::NodeComponent
 NodeComponent (Domain *domain, string_view name)
 Constructor. More...

template<typename TMessageType , typename TClass , typename TMethod >
Node::MessageSubscriptionToken addNodeComponentMessageHandler (TMessageType &messageType, TClass *nodeComponent, TMethod method)
 Kanzi calls the message handler that you add using this function when the target name of the incoming message matches the name of the node component, or if the message is broadcast to all node components with an empty target name. More...

void removeNodeComponentMessageFilter (Node::MessageSubscriptionToken subscriptionToken)
 Removes message handler added via addNodeComponentMessageHandler function. More...

template<typename TArgumentsType >
void dispatchMessage (const MessageType< TArgumentsType > &messageType, typename MessageType< TArgumentsType >::ArgumentsType &messageArguments)
 Adds the name of the node component to the message arguments and dispatches the message to the node of the node component. More...

- Protected Member Functions inherited from kanzi::Object
void initialize ()

void onCopy (const Object &other)

- Protected Member Functions inherited from kanzi::MetaObject
 MetaObject ()

void initialize ()

- Protected Member Functions inherited from kanzi::PropertyObject
void addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

void removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntryfindLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryconstructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryacquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStoragefindPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
 Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorageacquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStoragefindModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorageacquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStoragefindNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptorfindPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
 Copy local value from property storage. More...

PropertyStorageContainer::iterator beginPropertyStorage ()

PropertyStorageContainer::iterator endPropertyStorage ()

virtual void notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void onCopy (const PropertyObject &other)


Properties

static PropertyType< string > MessageTypeProperty
 MessageType property. More...

static PropertyType< bool > SetHandledProperty
 SetHandled property. More...

static PropertyType< MessageRoutingRoutingModeProperty
 RoutingMode property. More...

static PropertyType< string > MessageSourceProperty
 MessageSource property. More...

string getMessageType () const
 Gets the value of MessageTypeProperty. More...

void setMessageType (string value)
 Sets the value of MessageTypeProperty. More...

bool isSetHandled () const
 Gets the value of SetHandledProperty. More...

void setSetHandled (bool value)
 Sets the value of SetHandledProperty. More...

MessageRouting getRoutingMode () const
 Gets the value of RoutingModeProperty. More...

void setRoutingMode (MessageRouting value)
 Sets the value of RoutingModeProperty. More...

string getMessageSource () const
 Gets the value of MessageSourceProperty. More...

void setMessageSource (string value)
 Sets the value of MessageSourceProperty. More...


Additional Inherited Members

- Public Types inherited from kanzi::Trigger
typedef vector< ActionSharedPtrActionContainer

typedef ActionContainer::const_iterator ActionIterator

typedef vector< ConditionSharedPtrConditionContainer

typedef ConditionContainer::const_iterator ConditionIterator

- Public Types inherited from kanzi::NodeComponent
enum  State { StateDetached, StateDetaching, StateAttaching, StateAttached }
 State indicating if component is attached to a node, detached from any node or in process of attaching/detaching. More...

typedef NodeComponentTargetMessageArguments NodeComponentMessageArguments
 Legacy name for NodeComponentTargetMessageArguments. More...

- Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStoragePropertyStoragePtr

typedef vector< PropertyStoragePtrPropertyStorageContainer

typedef PropertyStorageContainer::iterator PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator PropertyStorageReverseIterator

- Public Member Functions inherited from kanzi::Trigger
TriggerSharedPtr copy () const
 Creates a copy of trigger. More...

void addAction (ActionSharedPtr action)
 Adds an action to the trigger. More...

void invokeActions () const
 Invokes actions in the trigger. More...

ActionIterator beginActions () const

ActionIterator endActions () const

void addCondition (ConditionSharedPtr condition)
 Adds a condition to the trigger. More...

bool checkConditions () const
 Checks against all conditions in the trigger. More...

ConditionIterator beginConditions () const

ConditionIterator endConditions () const

void * getForwardedMessage () const
 Gets the value of ForwardedMessageProperty. More...

void setForwardedMessage (void *value)
 Sets the value of ForwardedMessageProperty. More...

- Public Member Functions inherited from kanzi::NodeComponent
virtual ~NodeComponent ()
 Destructor. More...

void setName (string_view name)
 Sets the name of node component. More...

string getName () const
 Gets the name of node component. More...

NodeSharedPtr getNode () const
 Returns the node the node component is attached to or null pointer if node component is not attached to a node. More...

void attach (NodeWeakPtr node)
 Attaches node component to node. More...

void detach ()
 Detaches node component from the node it was attached to. More...

State getState () const
 Gets the state of node component indicating if component is attached to a node, detached from any node or in process of attaching/detaching. More...

bool isAttaching () const
 Indicates whether node component is in the process of attaching to a node. More...

bool isAttached () const
 Indicates whether node component is attached to a node. More...

bool isAttachingOrAttached () const
 Indicates whether node component is in the process of attaching to a node or already attached. More...

bool isDetaching () const
 Indicates whether node component currently detaching from the node. More...

bool isDetached () const
 Indicates whether node component is detached from any node. More...

bool isDetachingOrDetached () const
 Indicates whether node component is in the process of detaching from the node or already detached. More...

- Public Member Functions inherited from kanzi::Object
 Object (Domain *domain)

virtual ~Object ()

DomaingetDomain () const
 Returns the domain the object belongs to. More...

KzuTaskSchedulergetTaskScheduler () const
 Returns the task scheduler of the object. More...

KzuMessageDispatchergetMessageDispatcher () const
 Returns the message dispatcher of the object. More...

ResourceManagergetResourceManager () const
 Returns the resource manager of the object. More...

virtual const MetaclassgetDynamicMetaclass () const KZ_OVERRIDE
 Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr applyObjectStyle (kanzi::StyleSharedPtr style)
 Applies a style to an object. More...

void unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void applyObjectStyles ()
 Apply all styles for an object node. More...

void unapplyObjectStyles ()
 Unapplies and removes all applied styles. More...

- Public Member Functions inherited from kanzi::MetaObject
virtual ~MetaObject ()

bool isTypeOf (const Metaclass *objectType) const
 Determines if the type of this object is the given type or derived from it. More...

- Public Member Functions inherited from kanzi::PropertyObject
 PropertyObject ()

virtual ~PropertyObject ()

template<typename DataType >
void setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
 Sets the local value of a property. More...

void removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getProperty (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalProperty (const PropertyType< DataType > &propertyType) const
 Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getPropertyBase (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool hasValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value. More...

bool hasBaseValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool hasLocalValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a local value set for the property. More...

bool hasNonClassValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void removeLocalValue (AbstractPropertyType propertyType)
 Removes the local value associated with the property. More...

void copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
 Copies local value of single property from another object. More...

void copyLocalValues (const PropertyObject &other)
 Copies all local values from another object. More...

virtual void onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
 Virtual function to handle property change notifications. More...

template<typename DataType >
void addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

template<typename DataType >
void removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)

template<typename DataType >
void addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
 Gets number of current notification handlers for given property type. More...

- Static Public Attributes inherited from kanzi::Trigger
static PropertyType< void * > ForwardedMessageProperty
 ForwardedMessage property. More...

- Static Public Attributes inherited from kanzi::NodeComponent
static PropertyType< string > NameProperty
 Name property specifies the name of node component. More...

- Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtrAppliedStyleContainer
 Applied style container. More...

- Static Protected Member Functions inherited from kanzi::Trigger
static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()

- Static Protected Member Functions inherited from kanzi::NodeComponent
template<typename TMessageType , typename TClass , typename TMethod >
static void nodeComponentMessageHandler (TClass *nodeComponent, TMethod method, typename TMessageType::ArgumentsType &messageArguments)
 Handler function for node component messages. More...

- Protected Attributes inherited from kanzi::Object
AppliedStyleContainer m_appliedStyles
 Listing of applied styles applied to this object. More...


Detailed Description

Message handler trigger.

Constructor & Destructor Documentation

kanzi::MessageTrigger::MessageTrigger ( Domain domain,
string_view  name
)
explicitprotected

Member Function Documentation

string kanzi::MessageTrigger::getMessageType ( ) const
inline

Gets the value of MessageTypeProperty.

See also
setMessageType()
void kanzi::MessageTrigger::setMessageType ( string  value)
inline

Sets the value of MessageTypeProperty.

See also
getMessageType()
bool kanzi::MessageTrigger::isSetHandled ( ) const
inline

Gets the value of SetHandledProperty.

See also
setSetHandled()
void kanzi::MessageTrigger::setSetHandled ( bool  value)
inline

Sets the value of SetHandledProperty.

See also
isSetHandled()
MessageRouting kanzi::MessageTrigger::getRoutingMode ( ) const
inline

Gets the value of RoutingModeProperty.

See also
setRoutingMode()
void kanzi::MessageTrigger::setRoutingMode ( MessageRouting  value)
inline

Sets the value of RoutingModeProperty.

See also
getRoutingMode()
string kanzi::MessageTrigger::getMessageSource ( ) const
inline

Gets the value of MessageSourceProperty.

See also
setMessageSource()
void kanzi::MessageTrigger::setMessageSource ( string  value)
inline

Sets the value of MessageSourceProperty.

See also
getMessageSource()
static PropertyTypeEditorInfoSharedPtr kanzi::MessageTrigger::makeEditorInfo ( )
static
static MessageTriggerSharedPtr kanzi::MessageTrigger::create ( Domain domain,
string_view  name
)
inlinestatic
virtual void kanzi::MessageTrigger::attachOverride ( )
protectedvirtual

NodeComponent::attachOverride() implementation.

Reimplemented from kanzi::Trigger.

virtual void kanzi::MessageTrigger::detachOverride ( )
protectedvirtual

NodeComponent::detachOverride() implementation.

Reimplemented from kanzi::Trigger.

void kanzi::MessageTrigger::messageNotification ( MessageArguments )
protected

Member Data Documentation

PropertyType<string> kanzi::MessageTrigger::MessageTypeProperty
static

MessageType property.

The default value is "".

See also
setMessageType(), getMessageType()
PropertyType<bool> kanzi::MessageTrigger::SetHandledProperty
static

SetHandled property.

The default value is true.

See also
setSetHandled(), isSetHandled()
PropertyType<MessageRouting> kanzi::MessageTrigger::RoutingModeProperty
static

RoutingMode property.

The default value is MessageRoutingBubbling.

See also
setRoutingMode(), getRoutingMode()
PropertyType<string> kanzi::MessageTrigger::MessageSourceProperty
static

MessageSource property.

The default value is ".".

See also
setMessageSource(), getMessageSource()

The documentation for this class was generated from the following file:
