kanzi::ParallelTimeline Class Reference

The Kanzi animation system consists of animations and timelines: animations define how to animate a property, and timelines map the animations to time and to objects you want to animate. More...

#include <kanzi/core.ui/animation/parallel_timeline.hpp>

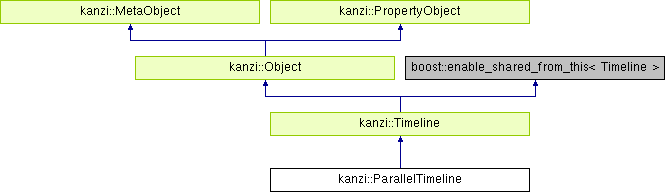

Inheritance diagram for kanzi::ParallelTimeline:
kanzi::Timeline kanzi::Object kanzi::MetaObject kanzi::PropertyObject

Public Types

typedef ChildContainer::const_iterator ChildConstIterator

- Public Types inherited from kanzi::Timeline
enum  DirectionBehavior { DirectionBehaviorNormal, DirectionBehaviorReverse, DirectionBehaviorPingPong }
 Specifies the direction behavior for a timeline. More...

- Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStoragePropertyStoragePtr

typedef vector< PropertyStoragePtrPropertyStorageContainer

typedef PropertyStorageContainer::iterator PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator PropertyStorageReverseIterator


Public Member Functions

void addChild (TimelineSharedPtr childTimeline)
 Adds child timeline to the parallel timeline. More...

size_t getChildCount () const

ChildConstIterator beginChildren () const

ChildConstIterator endChildren () const

string_view getObjectPath () const

- Public Member Functions inherited from kanzi::Timeline
chrono::milliseconds getStartTime () const
 Gets the start time of the timeline (in milliseconds). More...

void setStartTime (chrono::milliseconds startTime)
 Gets the start time of the timeline (in milliseconds). More...

chrono::milliseconds getClipStartTime () const
 Gets the clip start time of the timeline (in milliseconds). More...

void setClipStartTime (chrono::milliseconds clipStartTime)
 Sets the clip start time of the timeline (in milliseconds). More...

optional< chrono::milliseconds > getClipDuration () const
 Gets the clip duration of the timeline (in milliseconds). More...

void setClipDuration (optional< chrono::milliseconds > duration)
 Sets the clip duration of the timeline (in milliseconds). More...

unsigned int getRepeatCount () const
 Gets the repeat count of the timeline (zero indicates infinite repeats). More...

void setRepeatCount (unsigned int repeatCount)
 Sets the repeat count of the timeline (zero indicates infinite repeats). More...

DirectionBehavior getDirectionBehavior () const
 Gets the direction behavior of a timeline. More...

void setDirectionBehavior (DirectionBehavior directionBehavior)
 Sets the direction behavior of a timeline. More...

float getDurationScale () const
 Gets the duration scale of timeline. More...

void setDurationScale (float scale)
 Sets the duration scale of timeline. More...

float getMinimumDurationScale () const
 Gets minimum duration scale. More...

TimeInterval calculateClipInterval ()
 Calculates clip interval of timeline. More...

unsigned int calculateIterationCount ()
 Calculates number of iterations in timeline. More...

optional< chrono::milliseconds > calculateIterationDuration ()
 Calculates iteration duration. More...

optional< chrono::milliseconds > calculateDuration ()
 Calculates the duration of the timeline. More...

TimelinePlaybackSharedPtr createPlayback (TimelinePlaybackContext &context)
 Creates playback for timeline. More...

- Public Member Functions inherited from kanzi::Object
 Object (Domain *domain)

virtual ~Object ()

DomaingetDomain () const
 Returns the domain the object belongs to. More...

KzuTaskSchedulergetTaskScheduler () const
 Returns the task scheduler of the object. More...

KzuMessageDispatchergetMessageDispatcher () const
 Returns the message dispatcher of the object. More...

ResourceManagergetResourceManager () const
 Returns the resource manager of the object. More...

virtual const MetaclassgetDynamicMetaclass () const KZ_OVERRIDE
 Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr applyObjectStyle (kanzi::StyleSharedPtr style)
 Applies a style to an object. More...

void unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void applyObjectStyles ()
 Apply all styles for an object node. More...

void unapplyObjectStyles ()
 Unapplies and removes all applied styles. More...

- Public Member Functions inherited from kanzi::MetaObject
virtual ~MetaObject ()

bool isTypeOf (const Metaclass *objectType) const
 Determines if the type of this object is the given type or derived from it. More...

- Public Member Functions inherited from kanzi::PropertyObject
 PropertyObject ()

virtual ~PropertyObject ()

template<typename DataType >
void setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
 Sets the local value of a property. More...

void removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getProperty (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalProperty (const PropertyType< DataType > &propertyType) const
 Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getPropertyBase (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool hasValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value. More...

bool hasBaseValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool hasLocalValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a local value set for the property. More...

bool hasNonClassValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void removeLocalValue (AbstractPropertyType propertyType)
 Removes the local value associated with the property. More...

void copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
 Copies local value of single property from another object. More...

void copyLocalValues (const PropertyObject &other)
 Copies all local values from another object. More...

virtual void onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
 Virtual function to handle property change notifications. More...

template<typename DataType >
void addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

template<typename DataType >
void removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)

template<typename DataType >
void addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
 Gets number of current notification handlers for given property type. More...


Static Public Member Functions

static TimelineSharedPtr create (Domain *domain, string_view)

static ParallelTimelineSharedPtr create (Domain *domain)
 Creates parallel timeline. More...

static ObjectSharedPtr load (Domain *domain, string_view name, KzbFile &kzbFile, KzbMemoryParser &parser)
 Loads timeline from KZB file. More...

- Static Public Member Functions inherited from kanzi::Object
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Static Public Member Functions inherited from kanzi::MetaObject
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...


Protected Member Functions

 ParallelTimeline (Domain *domain)
 Constructor. More...

virtual TimelinePlaybackSharedPtr createPlaybackOverride (TimelinePlaybackContext &context) KZ_OVERRIDE
 Timeline::createPlaybackOverride() implementation. More...

virtual optional< chrono::milliseconds > calculateContentDuration () KZ_OVERRIDE
 Timeline::calculateContentDuration() implementation. More...

virtual void loadOverride (Domain *domain, string_view name, KzbFile &kzbFile, KzbMemoryParser &parser) KZ_OVERRIDE
 Timeline::loadOverride() implementation. More...

- Protected Member Functions inherited from kanzi::Timeline
 Timeline (Domain *domain)
 Constructor. More...

- Protected Member Functions inherited from kanzi::Object
void initialize ()

void onCopy (const Object &other)

- Protected Member Functions inherited from kanzi::MetaObject
 MetaObject ()

void initialize ()

- Protected Member Functions inherited from kanzi::PropertyObject
void addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

void removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntryfindLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryconstructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryacquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStoragefindPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
 Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorageacquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStoragefindModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorageacquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStoragefindNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptorfindPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
 Copy local value from property storage. More...

PropertyStorageContainer::iterator beginPropertyStorage ()

PropertyStorageContainer::iterator endPropertyStorage ()

virtual void notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void onCopy (const PropertyObject &other)


Friends

class ParallelTimelinePlayback


Additional Inherited Members

- Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtrAppliedStyleContainer
 Applied style container. More...

- Protected Attributes inherited from kanzi::Object
AppliedStyleContainer m_appliedStyles
 Listing of applied styles applied to this object. More...


Detailed Description

The Kanzi animation system consists of animations and timelines: animations define how to animate a property, and timelines map the animations to time and to objects you want to animate.

Parallel timeline allows you to group timelines which Kanzi plays at the same time. Use this timeline to organize collections of timelines and create a composition of timelines.

To add child timelines to parallel timeline call the addChild() function of parallel timeline. To adjust the position of a child timeline inside parallel timeline set the start time of the child timeline. Start time of child timeline as well as its global time is defined in content time space of parallel timeline. It is possible to set negative start time to child timeline. In this case the portion of timeline which is going before the zero time is clipped and will not be played.

It is not allowed to add child timelines after any playback of parallel timeline is added to a clock. Doing so will result in undefined behavior.

Since the content of parallel timeline is a group of its child timelines, the content duration of parallel timeline is defined as union of timeline durations of child timelines affected by their start times. For example, if a single timeline with a duration of 10 milliseconds and a start time of 5 milliseconds is added as a child to a parallel timeline, then the content duration of the parallel timeline is 15 milliseconds. Parallel timeline has its content duration set to 0 milliseconds if no child timelines were added to it.

Timeline properties affecting playback such as start time, repeat count, duration scale factor, direction behavior, clip start and clip duration, which are specified in parallel timeline, affect its child timelines. For example, if direction behavior of parallel timeline is set to reverse, then all its child timelines are played in reverse manner, from the end to beginning. In this case the time for child timelines will appear as going backwards.

Examples

To create a parallel timeline:

// Create a parallel timeline.
// Add propertyTimeline and propertyFieldTimeline timelines to the parallel timeline. Parallel timeline plays
// both timelines at the same time.
parallelTimeline->addChild(propertyTimeline);
parallelTimeline->addChild(propertyFieldTimeline);

To play an animation regardless of the timeline type:

// Create the playback context and the timeline playback for the node defined in the item2d.
SceneGraphTimelinePlaybackContext context(*item2d);
// Create the playback for the timeline defined in the propertyFieldTimeline.
TimelinePlaybackSharedPtr playback = propertyFieldTimeline->createPlayback(context);
// Start the animation.
domain->getRootTimelineClock()->addTimelinePlayback(playback);

Member Typedef Documentation

typedef ChildContainer::const_iterator kanzi::ParallelTimeline::ChildConstIterator

Constructor & Destructor Documentation

kanzi::ParallelTimeline::ParallelTimeline ( Domain domain)
explicitprotected

Constructor.

Parameters
domainDomain.

Member Function Documentation

static TimelineSharedPtr kanzi::ParallelTimeline::create ( Domain domain,
string_view
)
inlinestatic
void kanzi::ParallelTimeline::addChild ( TimelineSharedPtr  childTimeline)

Adds child timeline to the parallel timeline.

This function should not be called after playback of the parallel timeline has been added to a timeline clock.

Parameters
childTimelineTimeline to add to the parallel timeline.
static ParallelTimelineSharedPtr kanzi::ParallelTimeline::create ( Domain domain)
static

Creates parallel timeline.

Parameters
domainDomain.
Returns
Parallel timeline.
size_t kanzi::ParallelTimeline::getChildCount ( ) const
inline
ChildConstIterator kanzi::ParallelTimeline::beginChildren ( ) const
inline
ChildConstIterator kanzi::ParallelTimeline::endChildren ( ) const
inline
string_view kanzi::ParallelTimeline::getObjectPath ( ) const
inline
static ObjectSharedPtr kanzi::ParallelTimeline::load ( Domain domain,
string_view  name,
KzbFile kzbFile,
KzbMemoryParser parser
)
static

Loads timeline from KZB file.

Parameters
domainDomain.
nameTimeline name.
kzbFileKZB file to load timeline data from.
parserParser to parse timeline data.
Returns
Loaded timeline.
virtual TimelinePlaybackSharedPtr kanzi::ParallelTimeline::createPlaybackOverride ( TimelinePlaybackContext context)
protectedvirtual
virtual optional<chrono::milliseconds> kanzi::ParallelTimeline::calculateContentDuration ( )
protectedvirtual

Timeline::calculateContentDuration() implementation.

Reimplemented from kanzi::Timeline.

virtual void kanzi::ParallelTimeline::loadOverride ( Domain domain,
string_view  name,
KzbFile kzbFile,
KzbMemoryParser parser
)
protectedvirtual

Timeline::loadOverride() implementation.

Reimplemented from kanzi::Timeline.

Friends And Related Function Documentation

friend class ParallelTimelinePlayback
friend

The documentation for this class was generated from the following file:
