Preview timeline playback controls child timeline playbacks based on preview instructions. More...

#include <kanzi/core.ui/animation/preview_timeline_playback.hpp>

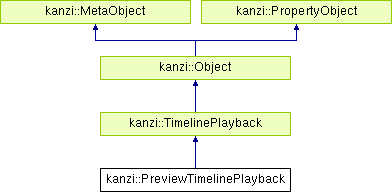

Inheritance diagram for kanzi::PreviewTimelinePlayback:

Public Member Functions
void	addTimelinePlayback (TimelinePlaybackSharedPtr timelinePlayback)
	Adds timeline playback to preview timeline playback. More...

void	removeTimelinePlayback (TimelinePlayback &timelinePlayback)
	Removes timeline playback from preview timeline playback. More...

void	enableScrubbing ()
	Turns on scrubbing. More...

void	disableScrubbing ()
	Disables scrubbing. More...

Public Member Functions inherited from kanzi::TimelinePlayback
	TimelinePlayback (Domain *domain, TimelineSharedPtr timeline)
	Constructor. More...

virtual	~TimelinePlayback ()
	Destructor. More...

void	setParent (TimelinePlayback *playback)
	Sets parent playback. More...

void	setCompleteCallback (CompleteCallback callback)
	Sets complete callback. More...

State	getState () const
	Gets current state of playback. More...

void	tick (chrono::milliseconds deltaTime)
	Advances TimelinePlayback's global time by delta time and calculates new progress time from it as well as other parameters such as current iteration index, etc. More...

chrono::milliseconds	getGlobalTime () const
	Gets current global time of TimelinePlayback. More...

void	setGlobalTime (chrono::milliseconds time)
	Sets global time of playback and calculates new global time from it as well as other parameters such as current iteration index, etc. More...

chrono::milliseconds	getProgressTime () const
	Gets current progress time of TimelinePlayback. More...

bool	isApplied () const
	Indicates whether TimelinePlayback is applied. More...

void	onParentAppliedStateChanged ()
	Notifies TimelinePlayback whether the applied state of its parent playback has changed. More...

void	onParentCompleted ()
	Notifies TimelinePlayback whether its parent playback has completed. More...

void	stop ()
	Stops playback. More...

Public Member Functions inherited from kanzi::Object
	Object (Domain *domain)

virtual	~Object ()

Domain *	getDomain () const
	Returns the domain the object belongs to. More...

KzuTaskScheduler *	getTaskScheduler () const
	Returns the task scheduler of the object. More...

KzuMessageDispatcher *	getMessageDispatcher () const
	Returns the message dispatcher of the object. More...

ResourceManager *	getResourceManager () const
	Returns the resource manager of the object. More...

virtual const Metaclass *	getDynamicMetaclass () const KZ_OVERRIDE
	Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr	applyObjectStyle (kanzi::StyleSharedPtr style)
	Applies a style to an object. More...

void	unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void	applyObjectStyles ()
	Apply all styles for an object node. More...

void	unapplyObjectStyles ()
	Unapplies and removes all applied styles. More...

Public Member Functions inherited from kanzi::MetaObject
virtual	~MetaObject ()

bool	isTypeOf (const Metaclass *objectType) const
	Determines if the type of this object is the given type or derived from it. More...

Public Member Functions inherited from kanzi::PropertyObject
	PropertyObject ()

virtual	~PropertyObject ()

template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...

void	removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...

bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...

bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...

void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...

void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...

virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...

template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, PropertyValuePrecedence precedence, void owner)

template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, void owner)

template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void	validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Static Public Member Functions
static PreviewTimelinePlaybackSharedPtr	create (PreviewTimelineSharedPtr previewTimeline)
	Creates preview timeline playback. More...

Static Public Member Functions inherited from kanzi::Object
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Static Public Member Functions inherited from kanzi::MetaObject
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Protected Member Functions
	PreviewTimelinePlayback (PreviewTimelineSharedPtr previewTimeline)
	Constructor. More...

virtual void	tickOverride (chrono::milliseconds deltaTime) KZ_OVERRIDE
	TimelinePlayback::tickOverride() implementation. More...

virtual void	onProgressTimeResetOverride () KZ_OVERRIDE
	TimelinePlayback::onProgressTimeResetOverride() implementation. More...

void	eraseCompletedTimelinePlaybacks ()
	Erases timeline playbacks that have been completed or stopped. More...

Protected Member Functions inherited from kanzi::TimelinePlayback
virtual void	onAppliedStateChangedOverride ()
	TimelinePlayback calls this function after its applied state has changed. More...

virtual void	onPlaybackCompletedOverride ()
	TimelinePlayback calls this function after it has become complete. More...

void	notifyPlaybackCompleted ()
	Calls completion callback if it is available. More...

Protected Member Functions inherited from kanzi::Object
void	initialize ()

void	onCopy (const Object &other)

Protected Member Functions inherited from kanzi::MetaObject
	MetaObject ()

void	initialize ()

Protected Member Functions inherited from kanzi::PropertyObject
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, PropertyValuePrecedence precedence, void owner)

void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, void owner)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...

PropertyStorageContainer::iterator	beginPropertyStorage ()

PropertyStorageContainer::iterator	endPropertyStorage ()

virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void	onCopy (const PropertyObject &other)

Additional Inherited Members
Public Types inherited from kanzi::TimelinePlayback
enum	State { StateNotStarted, StateOngoing, StateCompleted, StateStopped }
	Status of the playback. More...

typedef function< void(TimelinePlayback &)>	CompleteCallback
	Callback for complete timeline. More...

Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr

typedef vector< PropertyStoragePtr >	PropertyStorageContainer

typedef PropertyStorageContainer::iterator	PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtr >	AppliedStyleContainer
	Applied style container. More...

Protected Attributes inherited from kanzi::Object
AppliedStyleContainer	m_appliedStyles
	Listing of applied styles applied to this object. More...

Detailed Description

Preview timeline playback controls child timeline playbacks based on preview instructions.

Constructor & Destructor Documentation

kanzi::PreviewTimelinePlayback::PreviewTimelinePlayback ( PreviewTimelineSharedPtr previewTimeline )

explicitprotected

Constructor.

Parameters

previewTimeline Preview timeline to create playback for.

Member Function Documentation

static PreviewTimelinePlaybackSharedPtr kanzi::PreviewTimelinePlayback::create ( PreviewTimelineSharedPtr previewTimeline )

static

Creates preview timeline playback.

Parameters

previewTimeline Preview timeline to create playback for.

void kanzi::PreviewTimelinePlayback::addTimelinePlayback ( TimelinePlaybackSharedPtr timelinePlayback )

Adds timeline playback to preview timeline playback.

Parameters

timelinePlayback Timeline playback to add.

void kanzi::PreviewTimelinePlayback::removeTimelinePlayback ( TimelinePlayback & timelinePlayback )

Removes timeline playback from preview timeline playback.

Parameters

timelinePlayback Timeline playback to remove.

void kanzi::PreviewTimelinePlayback::enableScrubbing ( )

Turns on scrubbing.

When scrubbing is turned on, the preview timeline playback does not tick timeline playbacks added to it. The time of timeline playbacks is modified when global time of preview timeline playback is adjusted.

void kanzi::PreviewTimelinePlayback::disableScrubbing ( )

Disables scrubbing.

virtual void kanzi::PreviewTimelinePlayback::tickOverride ( chrono::milliseconds deltaTime )

protectedvirtual

TimelinePlayback::tickOverride() implementation.

Implements kanzi::TimelinePlayback.

virtual void kanzi::PreviewTimelinePlayback::onProgressTimeResetOverride ( )

protectedvirtual

TimelinePlayback::onProgressTimeResetOverride() implementation.

Reimplemented from kanzi::TimelinePlayback.

void kanzi::PreviewTimelinePlayback::eraseCompletedTimelinePlaybacks ( )

protected
