kanzi::CompositionTargetRenderPass Class Reference

Use the Composition Target Render Pass to set a composition target and render all descendant render passes to the composition target that the Composition Target Render Pass created. More...

#include <kanzi/core.ui/graphics3d/composition_target_render_pass.hpp>

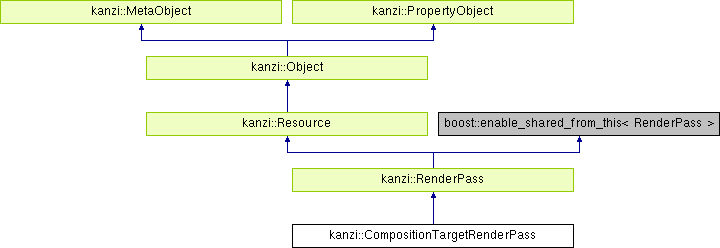

Inheritance diagram for kanzi::CompositionTargetRenderPass:
kanzi::RenderPass kanzi::Resource kanzi::Object kanzi::MetaObject kanzi::PropertyObject

Static Public Member Functions

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()

static CompositionTargetRenderPassSharedPtr create (Domain *domain, string_view name)
 Create a Composition Target Render Pass. More...

- Static Public Member Functions inherited from kanzi::RenderPass
static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()

static RenderPassSharedPtr create (Domain *domain, string_view name)
 Create a render pass. More...

static ResourceManager::LoadTaskSharedPtr createLoadTask (string_view name, KzbFile *kzbFile, unique_ptr< ReadOnlyMemoryFile > file)
 Factory function for RenderPass Load Task, which loads a RenderPass from a kzb file. More...

- Static Public Member Functions inherited from kanzi::Object
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Static Public Member Functions inherited from kanzi::MetaObject
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...


Protected Member Functions

 CompositionTargetRenderPass (Domain *domain, string_view name)
 Constructor. More...

virtual void renderOverride (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack) KZ_OVERRIDE
 RenderPass::renderOverride() implementation. More...

virtual TextureSharedPtr getCompositionResultOverride (Framebuffer::AttachmentPoint attachmentPoint) KZ_OVERRIDE
 RenderPass::getCompositionTarget() implementation. More...

virtual void restoreResources () KZ_OVERRIDE
 RenderPass::restoreResources() implementation. More...

virtual CompositionRequirements getCompositionRequirements () const KZ_OVERRIDE
 RenderPass::requiresDepthBuffer() implementation. More...

void updateMultisampleDrawTarget (unsigned int width, unsigned int height, bool requiresDepth, bool requiresStencil, unsigned int samples)
 Update temporary multisample draw target allocated. More...

void updateResultTarget (unsigned int width, unsigned int height, bool requiresDepth, bool requiresStencil, unsigned int samples)
 Update persistent result target allocated. More...

- Protected Member Functions inherited from kanzi::RenderPass
 RenderPass (Domain *domain, string_view name)
 Constructor. More...

virtual void onLoaded ()
 Override function called by createLoadTask(), after loading render pass. More...

void loadChildRenderPassesFromKZB (ResourceManager &resourceManager, KzbMemoryParser &parser)
 Load child render passes from a kzb file. More...

void loadProperties (KzbMemoryParser &parser)
 Reimplementation of the loadProperties from parser to accommodate paths in properties. More...

kzsError readProperties (struct KzcInputStream *inputStream, const struct KzuBinaryFileInfo *file, ResourceManager *resourceManager)
 Reimplementation of the property reading to accommodate paths in properties. More...

kzsError readProperty (struct KzcInputStream *inputStream, const struct KzuBinaryFileInfo *file, ResourceManager *resourceManager)
 Reimplementation of reading a single property to accommodate paths in properties. More...

void renderChildren (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
 Render all child render passes of a render pass. More...

CompositionRequirements combineChildCompositionRequirements (CompositionRequirements requirements) const
 Iterates the children for composition requirements. More...

CompositionRequirements getChildCompositionRequirements () const
 Iterates the children for composition requirements. More...

virtual void renderMeshOverride (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer)
 Mesh rendering that is specific for a render pass. More...

- Protected Member Functions inherited from kanzi::Resource
virtual void reloadOverride ()

virtual void reloadFromKzbOverride (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

virtual void reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void reloadFromFileOverride (string_view filePath)

virtual unsigned int getCPUMemoryUsageOverride () const

- Protected Member Functions inherited from kanzi::Object
void initialize ()

void onCopy (const Object &other)

- Protected Member Functions inherited from kanzi::MetaObject
 MetaObject ()

void initialize ()

- Protected Member Functions inherited from kanzi::PropertyObject
void addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

void removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntryfindLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryconstructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryacquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStoragefindPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
 Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorageacquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStoragefindModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorageacquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStoragefindNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptorfindPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
 Copy local value from property storage. More...

PropertyStorageContainer::iterator beginPropertyStorage ()

PropertyStorageContainer::iterator endPropertyStorage ()

virtual void notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void onCopy (const PropertyObject &other)


Properties

static PropertyType< ResourceSharedPtrCompositionTargetProperty
 Use the Composition Target property to set the target to which you want to render the result of this render pass. More...

static PropertyType< int > ResolutionMultiplierProperty
 Use the Resolution Multiplier property to set the resolution multiplier for the automatically created composition target textures, which together with the ResolutionDivisorProperty property, sets the size of the composition target in relation to the size of the current Viewport 2D node. More...

static PropertyType< int > ResolutionDivisorProperty
 Use the Resolution Divisor property to set the resolution divisor for the automatically created composition target textures, which together with the ResolutionMultiplierProperty property, sets the size of the composition target in relation to the size of the current Viewport 2D node. More...

static PropertyType< GraphicsFormatPixelFormatProperty
 Use the Pixel Format property to set on the GPU the target pixel format of the automatically created composition target textures. More...

static PropertyType< GraphicsFormatDepthTextureFormatProperty
 DepthTextureFormat property. More...

static PropertyType< Sampler::AddressingModeAddressingModeProperty
 Use the Addressing Mode property to set how Kanzi handles the texture coordinates the automatically generated composition target textures outside of the [0, 0] - [1, 1] rectangle: More...

static PropertyType< Sampler::FilterFilterModeProperty
 Use the Filter Mode property to set how texels are sampled when using the composition target as a texture. More...

static PropertyType< Sampler::MipmapModeMipmapModeProperty
 MipmapMode property. More...

static PropertyType< int > MultisampleLevelProperty
 Use the Multisample Level property to set the number of samples you want to use for each output pixel of the automatically generated composition target textures. More...

static PropertyType< bool > ResolveImmediatelyProperty
 Use the Resolve Immediately property to instruct the composition target render pass to resolve multisampling and generate mipmaps immediately after rendering as opposed to delaying resolve operations until the result composition target is referenced. More...

static PropertyType< GraphicsCompareFunctionDepthCompareFunctionProperty
 Use the Depth Compare Function property to determine which function is used when comparing depth values with comparison samplers. More...

TextureSharedPtr getCompositionTarget () const
 Gets the value of the CompositionTargetProperty property. More...

void setCompositionTarget (TextureSharedPtr value)
 Sets the value of the CompositionTargetProperty property. More...

int getResolutionMultiplier () const
 Gets the value of the ResolutionMultiplierProperty property. More...

void setResolutionMultiplier (int value)
 Sets the value of the ResolutionMultiplierProperty property. More...

int getResolutionDivisor () const
 Gets the value of the ResolutionDivisorProperty property. More...

void setResolutionDivisor (int value)
 Sets the value of the ResolutionDivisorProperty property. More...

GraphicsFormat getPixelFormat () const
 Gets the value of the PixelFormatProperty property. More...

void setPixelFormat (GraphicsFormat value)
 Sets value of the PixelFormatProperty property. More...

GraphicsFormat getDepthTextureFormat () const
 Gets value of DepthTextureFormatProperty. More...

void setDepthTextureFormat (GraphicsFormat value)
 Sets value of DepthTextureFormatProperty. More...

Sampler::Filter getFilterMode () const
 Gets value of FilterModeProperty. More...

void setFilterMode (Sampler::Filter value)
 Sets value of FilterModeProperty. More...

Sampler::MipmapMode getMipmapMode () const
 Gets value of MipmapModeProperty. More...

void setMipmapMode (Sampler::MipmapMode value)
 Sets value of MipmapModeProperty. More...

int getMultisampleLevel () const
 Gets value of MultisampleLevelProperty. More...

void setMultisampleLevel (int value)
 Sets value of MultisampleLevelProperty. More...

bool isResolveImmediately () const
 Gets value of ResolveImmediatelyProperty. More...

void setResolveImmediately (bool value)
 Sets value of ResolveImmediatelyProperty. More...

GraphicsCompareFunction getDepthCompareFunction () const
 Gets the value of DepthCompareFunctionProperty. More...

void setDepthCompareFunction (GraphicsCompareFunction value)
 Sets the value of the DepthCompareFunctionProperty. More...


Additional Inherited Members

- Public Types inherited from kanzi::RenderPass
typedef vector< RenderPassSharedPtrChildContainer

- Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStoragePropertyStoragePtr

typedef vector< PropertyStoragePtrPropertyStorageContainer

typedef PropertyStorageContainer::iterator PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator PropertyStorageReverseIterator

- Public Member Functions inherited from kanzi::RenderPass
RenderPassSharedPtr lookupRenderPass (string_view path)
 Resolve a render pass by path. More...

void render (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
 Recursively render RenderPass and all of its child render passes. More...

void renderMesh (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer)
 Use this function to render a mesh owned by a node using the material renderer that the node owns. More...

void addChild (RenderPassSharedPtr childRenderPass)
 Adds a render pass as the last child of the render pass you set. More...

void insertChild (size_t index, RenderPassSharedPtr childRenderPass)
 Adds a render pass as a child render pass at given index of the render pass you set. More...

void removeChild (RenderPass &childRenderPass)
 Removes a child render pass. More...

void removeAllChildren ()
 Removes all child render passes from a render pass. More...

RenderPassSharedPtr getParent () const
 Gets the parent of a render pass. More...

void setParent (RenderPassSharedPtr parent)
 Sets the parent of a render pass. More...

RenderPassSharedPtr getChild (size_t index)
 Gets a child render pass at the given index. More...

size_t getChildCount () const
 Returns the number of child render passes. More...

ChildContainer::const_iterator beginChildren () const
 Returns an iterator to the beginning of the container of child render passes. More...

ChildContainer::const_iterator endChildren () const
 Returns an iterator to the end of the container of child render passes. More...

TextureSharedPtr getCompositionResult (Framebuffer::AttachmentPoint attachmentPoint)
 Gets color composition target that was used for rendering. More...

size_t getTextureBindingCount () const
 Gets the number of texture bindings. More...

ResourceBinding getTextureBinding (size_t index) const
 Gets a texture binding by index. More...

void addTextureBinding (AbstractPropertyType propertyType, string_view path, bool fromKzb)
 Adds a texture binding. More...

void addTextureBinding (AbstractPropertyType propertyType, string_view path)
 Adds a texture binding. More...

bool removeTextureBinding (AbstractPropertyType propertyType)
 Removes the texture binding. More...

void removeKzbTextureBindings ()
 Removes the resource bindings loaded from kzb files. More...

void restoreResourcesRecursive ()
 Recursively calls restoreResources for a RenderPass and all its children. More...

virtual void loadFromKZB (const ResourceLoaderThreadContext *threadContext, KzcInputStream *inputStream, const KzuBinaryFileInfo *file) KZ_OVERRIDE
 Resource::loadFromKZB() implementation. More...

- Public Member Functions inherited from kanzi::Resource
KzcMemoryManagergetMemoryManager () const

 Resource (Domain *domain, string_view name)

virtual ~Resource ()

virtual void unloadOverride ()
 Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int getCPUMemoryUsage () const
 Function for getting the memory usage of a resource. More...

void setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
 Set the binary directory and path of the resource. More...

const string & getName () const
 Gets the resource name. More...

const string & getUrl () const
 Gets the resource URL. More...

void setUrl (string_view url)
 Sets the resource URL. More...

void setNotLoaded ()

bool isFromKZB () const

void reload ()

void reloadFromKzb (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

void reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void reloadFromFile (string_view filePath)

void load ()

void unload ()

bool isLoaded () const

void kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
 Private function for kzuResourceLoad() with specified thread context. More...

void kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
 Private function for finishing the loading of the resource. More...

bool isKeepAlive () const
 Tells if the resource has keep alive flag set. More...

void setKeepAlive (bool keepAlive)
 Sets the keep alive flag. More...

- Public Member Functions inherited from kanzi::Object
 Object (Domain *domain)

virtual ~Object ()

DomaingetDomain () const
 Returns the domain the object belongs to. More...

KzuTaskSchedulergetTaskScheduler () const
 Returns the task scheduler of the object. More...

KzuMessageDispatchergetMessageDispatcher () const
 Returns the message dispatcher of the object. More...

ResourceManagergetResourceManager () const
 Returns the resource manager of the object. More...

virtual const MetaclassgetDynamicMetaclass () const KZ_OVERRIDE
 Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr applyObjectStyle (kanzi::StyleSharedPtr style)
 Applies a style to an object. More...

void unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void applyObjectStyles ()
 Apply all styles for an object node. More...

void unapplyObjectStyles ()
 Unapplies and removes all applied styles. More...

- Public Member Functions inherited from kanzi::MetaObject
virtual ~MetaObject ()

bool isTypeOf (const Metaclass *objectType) const
 Determines if the type of this object is the given type or derived from it. More...

- Public Member Functions inherited from kanzi::PropertyObject
 PropertyObject ()

virtual ~PropertyObject ()

template<typename DataType >
void setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
 Sets the local value of a property. More...

void removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getProperty (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalProperty (const PropertyType< DataType > &propertyType) const
 Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getPropertyBase (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool hasValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value. More...

bool hasBaseValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool hasLocalValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a local value set for the property. More...

bool hasNonClassValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void removeLocalValue (AbstractPropertyType propertyType)
 Removes the local value associated with the property. More...

void copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
 Copies local value of single property from another object. More...

void copyLocalValues (const PropertyObject &other)
 Copies all local values from another object. More...

virtual void onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
 Virtual function to handle property change notifications. More...

template<typename DataType >
void addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

template<typename DataType >
void removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)

template<typename DataType >
void addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
 Gets number of current notification handlers for given property type. More...

- Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtrAppliedStyleContainer
 Applied style container. More...

- Protected Attributes inherited from kanzi::Object
AppliedStyleContainer m_appliedStyles
 Listing of applied styles applied to this object. More...


Detailed Description

Use the Composition Target Render Pass to set a composition target and render all descendant render passes to the composition target that the Composition Target Render Pass created.

After Kanzi renders the descendant render passes of a Composition Target Render Pass, the Composition Target Render Pass restores the earlier composition settings.

Configuring the composition target

Composition Target Render Pass by default creates a composition target whose size is the same as the size of the current Viewport 2D node using the RGBA pixel format and depth buffer. To configure the composition target, you can:

  • Set the pixel format of the composition target with the PixelFormatProperty.
    // Set the Pixel Format property to RGB (without alpha).
    compositionTargetRenderPass->setPixelFormat(GraphicsFormatR8G8B8_UNORM);
  • Set the size of the composition target in relation to the size of the current Viewport 2D node with the ResolutionMultiplierProperty and ResolutionDivisorProperty properties. These properties set a fractional number (rational number) which Kanzi uses to multiply the size of the current Viewport 2D node.
    // Use 2/3 of the size of the Viewport 2D area.
    compositionTargetRenderPass->setResolutionMultiplier(2);
    compositionTargetRenderPass->setResolutionDivisor(3);
  • Set the addressing mode of the composition target with the AddressingModeProperty property.
  • Set the number of samples for each pixel or disable multisampling with the MultisampleLevelProperty.

Using custom render target textures

You can set a Composition Target Render Pass to use a composition target texture that you create somwhere else with the CompositionTargetProperty. The render pass for which you set the composition target texture with this property does not create its own render target.

// Create a render target texture.
TextureSharedPtr compositionTarget = Texture::create(domain, createInfo, "Composition Target");
// Assign a composition target to the Composition Target Render Pass.
compositionTargetRenderPass->setCompositionTarget(compositionTarget);

For example, to use a custom render target texture, bind the CompositionTargetProperty property of a Composition Target Render Pass to properties of other render passes. See #BlitRenderPass.

Accessing the composition target result

You can access the result of a Composition Target Render Pass:

// Access the composition target result.
TextureSharedPtr resultCompositionTarget = compositionTargetRenderPass->getCompositionResult(Framebuffer::AttachmentPointColor0);

The texture that the getCompositionResult() method returns is not necessarily the texture that a Composition Target Render Pass rendered, or the texture set to the CompositionTargetProperty. For example, if you use multisampling, the getCompositionResult() method returns the target, where it resolves multiple samples into a 2D texture.

If a Composition Target Render Pass was not executed, the result of the getCompositionResult() method is undefined.

Examples

To use a Composition Target Render Pass with a custom render target with automatic size:

// This example shows how to create a Texture and use it as a render target for a 2D node.
//
// Kanzi determines the size of the render target automatically from the size of the 2D node
// and renders the node:
// - To texture as specified with Node2D::setRenderTarget().
// - Only to texture as specified with Node2D::setOffscreenRendering().
//
// \see Node2D::RenderTargetProperty
// \see Node2D::OffscreenRenderingProperty
// \see Texture::CreateInfoNode2DRenderTarget
// \see Texture::create()
// Create a scene graph.
ScreenSharedPtr screen = Screen::create(domain, "screen");
screen->attach();
// Create a node.
// Set a size to the node to determine the size that Kanzi uses to set the size of the render target.
EmptyNode2DSharedPtr node = EmptyNode2D::create(domain, "node");
node->setWidth(static_cast<float>(width));
node->setHeight(static_cast<float>(height));
screen->addChild(node);
// Create a background brush for the node.
ColorBrushSharedPtr brush = ColorBrush::create(domain, "brush", ColorRGBA(0.4f, 0.4f, 0.9f, 1.0f));
node->setBackgroundBrush(brush);
// Create a render target texture for the node.
// To create a texture with the same size as the node to which you assign it, set width divisor and height divisor to 1.
textureCreateInfo.widthDivisor = 1;
textureCreateInfo.heightDivisor = 1;
TextureSharedPtr renderTarget = Texture::create(domain, textureCreateInfo, "texture");
node->setRenderTarget(renderTarget);
// Render only to render target texture.
node->setOffscreenRendering(true);
// Render the scene graph.
{
CompositionStack& compositionStack = renderer->getCompositionStack();
screen->setAllocatedSize(Vector2(static_cast<float>(width), static_cast<float>(height)));
screen->setArrangeTransform(Matrix3x3());
screen->layout();
screen->extract();
compositionStack.pushComposition(0, screen->getAllocatedSize());
screen->render(*renderer, compositionStack);
compositionStack.popComposition();
}
screen->detach();

Constructor & Destructor Documentation

kanzi::CompositionTargetRenderPass::CompositionTargetRenderPass ( Domain domain,
string_view  name
)
explicitprotected

Constructor.

Parameters
domainThe domain to use.
nameThe name of the Composition Target Render Pass.

Member Function Documentation

TextureSharedPtr kanzi::CompositionTargetRenderPass::getCompositionTarget ( ) const
inline

Gets the value of the CompositionTargetProperty property.

Returns
The value of the Composition Target property.
See also
setCompositionTarget()
void kanzi::CompositionTargetRenderPass::setCompositionTarget ( TextureSharedPtr  value)
inline

Sets the value of the CompositionTargetProperty property.

Parameters
valueThe new value of the Composition Target property.
See also
getCompositionTarget()
int kanzi::CompositionTargetRenderPass::getResolutionMultiplier ( ) const
inline

Gets the value of the ResolutionMultiplierProperty property.

Returns
The value of the Resolution Multiplier property.
See also
setResolutionMultiplier()
void kanzi::CompositionTargetRenderPass::setResolutionMultiplier ( int  value)
inline

Sets the value of the ResolutionMultiplierProperty property.

Parameters
valueThe new value of the Resolution Multiplier property.
See also
getResolutionMultiplier()
int kanzi::CompositionTargetRenderPass::getResolutionDivisor ( ) const
inline

Gets the value of the ResolutionDivisorProperty property.

Returns
The value of the Resolution Divisor property.
See also
setResolutionDivisor
void kanzi::CompositionTargetRenderPass::setResolutionDivisor ( int  value)
inline

Sets the value of the ResolutionDivisorProperty property.

Parameters
valueThe new value of the Resolution Divisor property.
See also
getResolutionDivisor
GraphicsFormat kanzi::CompositionTargetRenderPass::getPixelFormat ( ) const
inline

Gets the value of the PixelFormatProperty property.

Returns
The value of the Pixel Format property.
See also
setPixelFormat()
void kanzi::CompositionTargetRenderPass::setPixelFormat ( GraphicsFormat  value)
inline

Sets value of the PixelFormatProperty property.

Parameters
valueThe new value of the Pixel Format property.
See also
getPixelFormat()
GraphicsFormat kanzi::CompositionTargetRenderPass::getDepthTextureFormat ( ) const
inline

Gets value of DepthTextureFormatProperty.

Returns
Property value.
void kanzi::CompositionTargetRenderPass::setDepthTextureFormat ( GraphicsFormat  value)
inline

Sets value of DepthTextureFormatProperty.

Parameters
valueNew property value.
Sampler::Filter kanzi::CompositionTargetRenderPass::getFilterMode ( ) const
inline

Gets value of FilterModeProperty.

Returns
Property value.
void kanzi::CompositionTargetRenderPass::setFilterMode ( Sampler::Filter  value)
inline

Sets value of FilterModeProperty.

Parameters
valueNew property value.
Sampler::MipmapMode kanzi::CompositionTargetRenderPass::getMipmapMode ( ) const
inline

Gets value of MipmapModeProperty.

Returns
Property value.
void kanzi::CompositionTargetRenderPass::setMipmapMode ( Sampler::MipmapMode  value)
inline

Sets value of MipmapModeProperty.

Parameters
valueNew property value.
int kanzi::CompositionTargetRenderPass::getMultisampleLevel ( ) const
inline

Gets value of MultisampleLevelProperty.

Returns
Property value.
void kanzi::CompositionTargetRenderPass::setMultisampleLevel ( int  value)
inline

Sets value of MultisampleLevelProperty.

Parameters
valueNew property value.
bool kanzi::CompositionTargetRenderPass::isResolveImmediately ( ) const
inline

Gets value of ResolveImmediatelyProperty.

Returns
Property value.
void kanzi::CompositionTargetRenderPass::setResolveImmediately ( bool  value)
inline

Sets value of ResolveImmediatelyProperty.

Parameters
valueNew property value.
GraphicsCompareFunction kanzi::CompositionTargetRenderPass::getDepthCompareFunction ( ) const
inline

Gets the value of DepthCompareFunctionProperty.

Returns
The value of the Depth Compare Function property.
void kanzi::CompositionTargetRenderPass::setDepthCompareFunction ( GraphicsCompareFunction  value)
inline

Sets the value of the DepthCompareFunctionProperty.

Parameters
valueThe value of the Depth Compare Function property.
static PropertyTypeEditorInfoSharedPtr kanzi::CompositionTargetRenderPass::makeEditorInfo ( )
static
static CompositionTargetRenderPassSharedPtr kanzi::CompositionTargetRenderPass::create ( Domain domain,
string_view  name
)
static

Create a Composition Target Render Pass.

Parameters
domainThe domain to use.
nameThe name of the Composition Target Render Pass.
Returns
The created Composition Target Render Pass.
virtual void kanzi::CompositionTargetRenderPass::renderOverride ( Renderer3D renderer,
TransformedScene3D transformedScene,
CompositionStack compositionStack
)
protectedvirtual

RenderPass::renderOverride() implementation.

Reimplemented from kanzi::RenderPass.

virtual TextureSharedPtr kanzi::CompositionTargetRenderPass::getCompositionResultOverride ( Framebuffer::AttachmentPoint  attachmentPoint)
protectedvirtual

RenderPass::getCompositionTarget() implementation.

Reimplemented from kanzi::RenderPass.

virtual void kanzi::CompositionTargetRenderPass::restoreResources ( )
protectedvirtual

RenderPass::restoreResources() implementation.

Reimplemented from kanzi::RenderPass.

virtual CompositionRequirements kanzi::CompositionTargetRenderPass::getCompositionRequirements ( ) const
protectedvirtual

RenderPass::requiresDepthBuffer() implementation.

Reimplemented from kanzi::RenderPass.

void kanzi::CompositionTargetRenderPass::updateMultisampleDrawTarget ( unsigned int  width,
unsigned int  height,
bool  requiresDepth,
bool  requiresStencil,
unsigned int  samples
)
protected

Update temporary multisample draw target allocated.

Parameters
widthRequired width.
heightRequired height.
requiresDepthTrue if depth buffer is required, otherwise false.
requiresStencilTrue if stencil buffer is required, otherwise false.
samplesThe number of multisampling samples.
void kanzi::CompositionTargetRenderPass::updateResultTarget ( unsigned int  width,
unsigned int  height,
bool  requiresDepth,
bool  requiresStencil,
unsigned int  samples
)
protected

Update persistent result target allocated.

Parameters
widthRequired width.
heightRequired height.
requiresDepthTrue if depth buffer is required, otherwise false.
requiresStencilTrue if stencil buffer is required, otherwise false.
samplesThe number of multisampling samples. Mostly 0, unless using multisample extensions that do not need a separate resolve target.

Member Data Documentation

PropertyType<ResourceSharedPtr> kanzi::CompositionTargetRenderPass::CompositionTargetProperty
static

Use the Composition Target property to set the target to which you want to render the result of this render pass.

The default value is ResourceSharedPtr().

See also
setCompositionTarget(), getCompositionTarget()
PropertyType<int> kanzi::CompositionTargetRenderPass::ResolutionMultiplierProperty
static

Use the Resolution Multiplier property to set the resolution multiplier for the automatically created composition target textures, which together with the ResolutionDivisorProperty property, sets the size of the composition target in relation to the size of the current Viewport 2D node.

The default value is 1.

See also
getResolutionMultiplier(), getResolutionMultiplier(), ResolutionDivisorProperty
PropertyType<int> kanzi::CompositionTargetRenderPass::ResolutionDivisorProperty
static

Use the Resolution Divisor property to set the resolution divisor for the automatically created composition target textures, which together with the ResolutionMultiplierProperty property, sets the size of the composition target in relation to the size of the current Viewport 2D node.

The default value is 1.

See also
setResolutionDivisor(), getResolutionDivisor(), ResolutionMultiplierProperty
PropertyType<GraphicsFormat> kanzi::CompositionTargetRenderPass::PixelFormatProperty
static

Use the Pixel Format property to set on the GPU the target pixel format of the automatically created composition target textures.

The default value is RGBA.

See also
getPixelFormat(), setPixelFormat()
PropertyType<GraphicsFormat> kanzi::CompositionTargetRenderPass::DepthTextureFormatProperty
static

DepthTextureFormat property.

If set, defines the format for the depth texture. If not set, depth texture will not be used and depth renderbuffer will be used if necessary.

PropertyType<Sampler::AddressingMode> kanzi::CompositionTargetRenderPass::AddressingModeProperty
static

Use the Addressing Mode property to set how Kanzi handles the texture coordinates the automatically generated composition target textures outside of the [0, 0] - [1, 1] rectangle:

  • #AddressingModeClamp confines the texture to the these coordinates and outside of these texture coordinates repeats the edge texels of the texture. This is the default value.
  • #AddressingModeWrap sets the texture to repeat outside of these coordinates.
PropertyType<Sampler::Filter> kanzi::CompositionTargetRenderPass::FilterModeProperty
static

Use the Filter Mode property to set how texels are sampled when using the composition target as a texture.

  • #FilterNearest means the color is taken from nearest texture sample.
  • #FilterLinear means the color is interpolated from neighboring texture samples.
PropertyType<Sampler::MipmapMode> kanzi::CompositionTargetRenderPass::MipmapModeProperty
static

MipmapMode property.

The default value is #MipmapModeBase.

PropertyType<int> kanzi::CompositionTargetRenderPass::MultisampleLevelProperty
static

Use the Multisample Level property to set the number of samples you want to use for each output pixel of the automatically generated composition target textures.

To disable multisampling, remove the property or set the property value to 1. The default value is 1.

PropertyType<bool> kanzi::CompositionTargetRenderPass::ResolveImmediatelyProperty
static

Use the Resolve Immediately property to instruct the composition target render pass to resolve multisampling and generate mipmaps immediately after rendering as opposed to delaying resolve operations until the result composition target is referenced.

The default value is false.

PropertyType<GraphicsCompareFunction> kanzi::CompositionTargetRenderPass::DepthCompareFunctionProperty
static

Use the Depth Compare Function property to determine which function is used when comparing depth values with comparison samplers.

The default value is GraphicsCompareFunctionDisabled.


The documentation for this class was generated from the following file:
