kanzi::Resource Class Reference

Represents the base class for all resources. More...

#include <kanzi/core.ui/resource/resource.hpp>

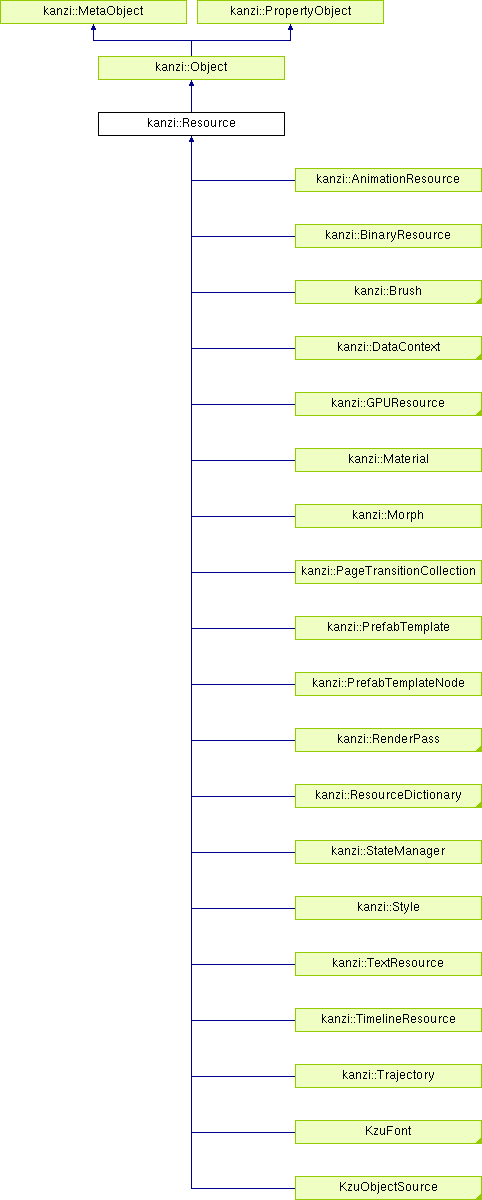

Inheritance diagram for kanzi::Resource:
kanzi::Object kanzi::MetaObject kanzi::PropertyObject kanzi::AnimationResource kanzi::BinaryResource kanzi::Brush kanzi::DataContext kanzi::GPUResource kanzi::Material kanzi::Morph kanzi::PageTransitionCollection kanzi::PrefabTemplate kanzi::PrefabTemplateNode kanzi::RenderPass kanzi::ResourceDictionary kanzi::StateManager kanzi::Style kanzi::TextResource kanzi::TimelineResource kanzi::Trajectory KzuFont KzuObjectSource

Public Member Functions

KzcMemoryManagergetMemoryManager () const

 Resource (Domain *domain, string_view name)

virtual ~Resource ()

virtual void loadFromKZB (const ResourceLoaderThreadContext *threadContext, KzcInputStream *inputStream, const KzuBinaryFileInfo *file)
 Function for loading the resource from .KZB. More...

virtual void unloadOverride ()
 Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int getCPUMemoryUsage () const
 Function for getting the memory usage of a resource. More...

void setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
 Set the binary directory and path of the resource. More...

const string & getName () const
 Gets the resource name. More...

const string & getUrl () const
 Gets the resource URL. More...

void setUrl (string_view url)
 Sets the resource URL. More...

void setNotLoaded ()

bool isFromKZB () const

void reload ()

void reloadFromKzb (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

void reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void reloadFromFile (string_view filePath)

void load ()

void unload ()

bool isLoaded () const

void kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
 Private function for kzuResourceLoad() with specified thread context. More...

void kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
 Private function for finishing the loading of the resource. More...

bool isKeepAlive () const
 Tells if the resource has keep alive flag set. More...

void setKeepAlive (bool keepAlive)
 Sets the keep alive flag. More...

- Public Member Functions inherited from kanzi::Object
 Object (Domain *domain)

virtual ~Object ()

DomaingetDomain () const
 Returns the domain the object belongs to. More...

KzuTaskSchedulergetTaskScheduler () const
 Returns the task scheduler of the object. More...

KzuMessageDispatchergetMessageDispatcher () const
 Returns the message dispatcher of the object. More...

ResourceManagergetResourceManager () const
 Returns the resource manager of the object. More...

virtual const MetaclassgetDynamicMetaclass () const KZ_OVERRIDE
 Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr applyObjectStyle (kanzi::StyleSharedPtr style)
 Applies a style to an object. More...

void unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void applyObjectStyles ()
 Apply all styles for an object node. More...

void unapplyObjectStyles ()
 Unapplies and removes all applied styles. More...

- Public Member Functions inherited from kanzi::MetaObject
virtual ~MetaObject ()

bool isTypeOf (const Metaclass *objectType) const
 Determines if the type of this object is the given type or derived from it. More...

- Public Member Functions inherited from kanzi::PropertyObject
 PropertyObject ()

virtual ~PropertyObject ()

template<typename DataType >
void setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
 Sets the local value of a property. More...

void removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getProperty (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalProperty (const PropertyType< DataType > &propertyType) const
 Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getPropertyBase (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool hasValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value. More...

bool hasBaseValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool hasLocalValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a local value set for the property. More...

bool hasNonClassValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void removeLocalValue (AbstractPropertyType propertyType)
 Removes the local value associated with the property. More...

void copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
 Copies local value of single property from another object. More...

void copyLocalValues (const PropertyObject &other)
 Copies all local values from another object. More...

virtual void onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
 Virtual function to handle property change notifications. More...

template<typename DataType >
void addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

template<typename DataType >
void removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)

template<typename DataType >
void addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
 Gets number of current notification handlers for given property type. More...


Protected Member Functions

virtual void reloadOverride ()

virtual void reloadFromKzbOverride (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

virtual void reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void reloadFromFileOverride (string_view filePath)

virtual unsigned int getCPUMemoryUsageOverride () const

- Protected Member Functions inherited from kanzi::Object
void initialize ()

void onCopy (const Object &other)

- Protected Member Functions inherited from kanzi::MetaObject
 MetaObject ()

void initialize ()

- Protected Member Functions inherited from kanzi::PropertyObject
void addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

void removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntryfindLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryconstructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryacquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStoragefindPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
 Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorageacquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStoragefindModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorageacquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStoragefindNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptorfindPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
 Copy local value from property storage. More...

PropertyStorageContainer::iterator beginPropertyStorage ()

PropertyStorageContainer::iterator endPropertyStorage ()

virtual void notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void onCopy (const PropertyObject &other)


Friends

class ResourceManager


Additional Inherited Members

- Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStoragePropertyStoragePtr

typedef vector< PropertyStoragePtrPropertyStorageContainer

typedef PropertyStorageContainer::iterator PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator PropertyStorageReverseIterator

- Static Public Member Functions inherited from kanzi::Object
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Static Public Member Functions inherited from kanzi::MetaObject
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtrAppliedStyleContainer
 Applied style container. More...

- Protected Attributes inherited from kanzi::Object
AppliedStyleContainer m_appliedStyles
 Listing of applied styles applied to this object. More...


Detailed Description

Represents the base class for all resources.

This base class contains information related to the type of the resource and the loading status of the resource data. The actual resource data is specific to the sub-classes.

Constructor & Destructor Documentation

kanzi::Resource::Resource ( Domain domain,
string_view  name
)
virtual kanzi::Resource::~Resource ( )
virtual

Member Function Documentation

KzcMemoryManager* kanzi::Resource::getMemoryManager ( ) const
virtual void kanzi::Resource::loadFromKZB ( const ResourceLoaderThreadContext threadContext,
KzcInputStream inputStream,
const KzuBinaryFileInfo file
)
virtual

Function for loading the resource from .KZB.

This function is called when loading the data from .KZB file. Implementations should call super class loadFromKZB before reading anything else from inputStream. This function is called from arbitrary loading threads. The parameter threadContext contains thread safe memory manager and a thread specific Property manager which can be locked with the threadLock in the threadContext. This function may not access resource manager or the UIDomain due to race conditions.

Reimplemented in kanzi::StateManager, kanzi::RenderPass, kanzi::Framebuffer, kanzi::PageTransitionCollection, kanzi::LegacyRenderPass, kanzi::PrefabTemplate, kanzi::Trajectory, kanzi::Style, kanzi::Material, kanzi::DataSource, and kanzi::Morph.

virtual void kanzi::Resource::unloadOverride ( )
virtual

Unload function for resource. Releases all CPU memory taken by the resource except the resource loader.

virtual unsigned int kanzi::Resource::getCPUMemoryUsage ( ) const
virtual

Function for getting the memory usage of a resource.

void kanzi::Resource::setKZB ( const KzuBinaryDirectory binaryDirectory,
string_view  path
)

Set the binary directory and path of the resource.

Used for old KZB loading path only. Will construct url from binary directory and path.

const string& kanzi::Resource::getName ( ) const
inline

Gets the resource name.

const string& kanzi::Resource::getUrl ( ) const
inline

Gets the resource URL.

Note that the URL is not necessarily in URL form if resource has been just created.

Returns
URL string.
void kanzi::Resource::setUrl ( string_view  url)

Sets the resource URL.

Parameters
urlNew URL.
void kanzi::Resource::setNotLoaded ( )
inline
bool kanzi::Resource::isFromKZB ( ) const
inline
void kanzi::Resource::reload ( )
void kanzi::Resource::reloadFromKzb ( KzcInputStream inputStream,
const KzuBinaryFileInfo file
)
void kanzi::Resource::reloadFromKzb ( KzbFile kzbFile,
ReadOnlyMemoryFile file,
KzbMemoryParser parser
)
void kanzi::Resource::reloadFromFile ( string_view  filePath)
void kanzi::Resource::load ( )
void kanzi::Resource::unload ( )
bool kanzi::Resource::isLoaded ( ) const
void kanzi::Resource::kzuResourceLoad_private ( const ResourceLoaderThreadContext threadContext)

Private function for kzuResourceLoad() with specified thread context.

void kanzi::Resource::kzuResourceFinishLoading_private ( const ResourceLoaderThreadContext threadContext)

Private function for finishing the loading of the resource.

bool kanzi::Resource::isKeepAlive ( ) const

Tells if the resource has keep alive flag set.

Resource manager keeps resources with keep alive flag alive even if ResourceManager::purge() is called.

Returns
True if the flag is set.
void kanzi::Resource::setKeepAlive ( bool  keepAlive)

Sets the keep alive flag.

Can be set only before the resource is registered to the resource manager. Normally set by loadFromKZB.

Parameters
keepAliveValue for the keep alive flag.
virtual void kanzi::Resource::reloadOverride ( )
protectedvirtual
virtual void kanzi::Resource::reloadFromKzbOverride ( KzcInputStream inputStream,
const KzuBinaryFileInfo file
)
protectedvirtual
virtual void kanzi::Resource::reloadFromKzbOverride ( KzbFile kzbFile,
ReadOnlyMemoryFile file,
KzbMemoryParser parser
)
protectedvirtual
virtual void kanzi::Resource::reloadFromFileOverride ( string_view  filePath)
protectedvirtual

Reimplemented in kanzi::Texture.

virtual unsigned int kanzi::Resource::getCPUMemoryUsageOverride ( ) const
protectedvirtual

Reimplemented in kanzi::Texture.

Friends And Related Function Documentation

friend class ResourceManager
friend

The documentation for this class was generated from the following file:
