Use the Pipeline State Render Pass to set for its child render passes the depth and stencil testing, transparency, and culling. More...

#include <kanzi/core.ui/graphics3d/pipeline_state_render_pass.hpp>

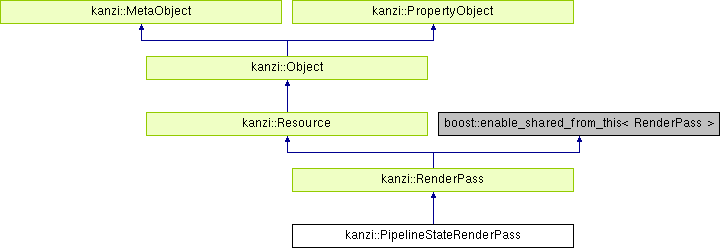

Inheritance diagram for kanzi::PipelineStateRenderPass:

Public Types
enum	ViewportMode { ViewportModeAbsolute, ViewportModeRelative }

Public Types inherited from kanzi::RenderPass
typedef vector< RenderPassSharedPtr >	ChildContainer

Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr

typedef vector< PropertyStoragePtr >	PropertyStorageContainer

typedef PropertyStorageContainer::iterator	PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Static Public Member Functions
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

static PipelineStateRenderPassSharedPtr	create (Domain *domain, string_view name)
	Create a Pipeline State Render Pass. More...

Static Public Member Functions inherited from kanzi::RenderPass
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

static RenderPassSharedPtr	create (Domain *domain, string_view name)
	Create a render pass. More...

static ResourceManager::LoadTaskSharedPtr	createLoadTask (string_view name, KzbFile *kzbFile, unique_ptr< ReadOnlyMemoryFile > file)
	Factory function for RenderPass Load Task, which loads a RenderPass from a kzb file. More...

Static Public Member Functions inherited from kanzi::Object
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Static Public Member Functions inherited from kanzi::MetaObject
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Protected Member Functions
	PipelineStateRenderPass (Domain *domain, string_view name)
	Constructor. More...

bool	pushColorBlend (CompositionStack &compositionStack)
	Push the color or blend state into the composition stack. More...

bool	pushDepthStencil (CompositionStack &compositionStack)
	Push the depth or stencil state into the composition stack. More...

bool	pushRasterization (CompositionStack &compositionStack)
	Push the rasterization state into the composition stack. More...

bool	pushViewportScissor (CompositionStack &compositionStack)
	Push the Viewport 2D scissor state into the composition stack. More...

virtual void	renderOverride (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack) KZ_OVERRIDE
	RenderPass::renderOverride() implementation. More...

virtual CompositionRequirements	getCompositionRequirements () const KZ_OVERRIDE
	RenderPass::requiresDepthBuffer() implementation. More...

Protected Member Functions inherited from kanzi::RenderPass
	RenderPass (Domain *domain, string_view name)
	Constructor. More...

virtual void	onLoaded ()
	Override function called by createLoadTask(), after loading render pass. More...

void	loadChildRenderPassesFromKZB (ResourceManager &resourceManager, KzbMemoryParser &parser)
	Load child render passes from a kzb file. More...

void	loadProperties (KzbMemoryParser &parser)
	Reimplementation of the loadProperties from parser to accommodate paths in properties. More...

kzsError	readProperties (struct KzcInputStream inputStream, const struct KzuBinaryFileInfo file, ResourceManager *resourceManager)
	Reimplementation of the property reading to accommodate paths in properties. More...

kzsError	readProperty (struct KzcInputStream inputStream, const struct KzuBinaryFileInfo file, ResourceManager *resourceManager)
	Reimplementation of reading a single property to accommodate paths in properties. More...

void	renderChildren (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
	Render all child render passes of a render pass. More...

CompositionRequirements	combineChildCompositionRequirements (CompositionRequirements requirements) const
	Iterates the children for composition requirements. More...

CompositionRequirements	getChildCompositionRequirements () const
	Iterates the children for composition requirements. More...

virtual void	renderMeshOverride (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer)
	Mesh rendering that is specific for a render pass. More...

virtual TextureSharedPtr	getCompositionResultOverride (Framebuffer::AttachmentPoint attachmentPoint)
	Acquiring of composition target specific to the RenderPass class. More...

Protected Member Functions inherited from kanzi::Resource
virtual void	reloadOverride ()

virtual void	reloadFromKzbOverride (KzcInputStream inputStream, const KzuBinaryFileInfo file)

virtual void	reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void	reloadFromFileOverride (string_view filePath)

virtual unsigned int	getCPUMemoryUsageOverride () const

Protected Member Functions inherited from kanzi::Object
void	initialize ()

void	onCopy (const Object &other)

Protected Member Functions inherited from kanzi::MetaObject
	MetaObject ()

void	initialize ()

Protected Member Functions inherited from kanzi::PropertyObject
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, PropertyValuePrecedence precedence, void owner)

void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, void owner)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...

PropertyStorageContainer::iterator	beginPropertyStorage ()

PropertyStorageContainer::iterator	endPropertyStorage ()

virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void	onCopy (const PropertyObject &other)

Properties
static PropertyType< GraphicsBlendMode >	BlendModeProperty
	Use the Blend Mode property to override the blend mode set in each node that this render pass renders. More...

static PropertyType< GraphicsColorWriteMode >	ColorWriteModeProperty
	Use the Color Write Mode property to set which channels the render pass writes to the color buffer. More...

static PropertyType< GraphicsCompareFunction >	DepthTestFunctionProperty
	Use the Depth Test Function property to control whether the depth test discards a fragment. More...

static PropertyType< bool >	DepthWriteEnabledProperty
	Use the Depth Write Enabled property to set whether the render pass writes to the depth buffer. More...

static PropertyType< GraphicsCompareFunction >	StencilTestFunctionProperty
	Use the Stencil Test Function property to control whether the stencil test discards a fragment. More...

static PropertyType< int >	StencilReferenceValueProperty
	Use the Stencil Reference Value property to set the reference value for the stencil test. More...

static PropertyType< int >	StencilMaskProperty
	Use the Stencil Mask property to set a mask on which the AND operation is executed with both the reference value and the stored stencil value when the test is done. More...

static PropertyType< GraphicsStencilOperation >	StencilFailOperationProperty
	Use the Stencil Fail Operation property to set the operation that the render pass performs when the stencil test fails. More...

static PropertyType< GraphicsStencilOperation >	StencilPassDepthFailOperationProperty
	Use the Stencil Pass Depth Fail Operation property to set the operation that the render pass performs when the stencil test passes, but the depth test fails. More...

static PropertyType< GraphicsStencilOperation >	StencilPassDepthPassOperationProperty
	Use the Stencil Pass Depth Pass Operation property to set the operation that the render pass performs when both, the stencil and the depth test, pass. More...

static PropertyType< bool >	StencilWriteEnabledProperty
	Use the Stencil Write Enabled property to set whether to enable writing to the stencil buffer. More...

static PropertyType< GraphicsCullMode >	CullModeProperty
	Use the Cull Mode property to set the culling of the triangle faces in the rendered meshes. More...

static PropertyType< Vector4 >	ViewportProperty
	Use the Viewport property to modify the current rendering Viewport 2D node. More...

static PropertyType< ViewportMode >	ViewportModeProperty
	Use the Viewport Mode property to set the coordinate type for the Viewport 2D node. More...

static PropertyType< Vector4 >	ScissorProperty
	Use the Scissor property to set the scissor test within the current rendering Viewport 2D node. More...

static PropertyType< ViewportMode >	ScissorModeProperty
	Use the Scissor Mode property to set the scissor test coordinate mode. More...

GraphicsBlendMode	getBlendMode () const
	Gets the value of the BlendModeProperty property. More...

void	setBlendMode (GraphicsBlendMode value)
	Sets the value of the BlendModeProperty property. More...

GraphicsColorWriteMode	getColorWriteMode () const
	Gets the value of the ColorWriteModeProperty property. More...

void	setColorWriteMode (GraphicsColorWriteMode value)
	Sets the value of the ColorWriteModeProperty property. More...

GraphicsCompareFunction	getDepthTestFunction () const
	Gets the value of the DepthTestFunctionProperty property. More...

void	setDepthTestFunction (GraphicsCompareFunction value)
	Sets the value of the DepthTestFunctionProperty property. More...

bool	isDepthWriteEnabled () const
	Gets the value of the DepthWriteEnabledProperty property. More...

void	setDepthWriteEnabled (bool value)
	Sets the value of the DepthWriteEnabledProperty property. More...

GraphicsCompareFunction	getStencilTestFunction () const
	Gets the value of the StencilTestFunctionProperty property. More...

void	setStencilTestFunction (GraphicsCompareFunction value)
	Sets the value of the StencilTestFunctionProperty property. More...

int	getStencilReferenceValue () const
	Gets the value of the StencilReferenceValueProperty property. More...

void	setStencilReferenceValue (int value)
	Sets the value of the StencilReferenceValueProperty property. More...

int	getStencilMask () const
	Gets the value of the StencilMaskProperty property. More...

void	setStencilMask (int value)
	Sets the value of the StencilMaskProperty property. More...

GraphicsStencilOperation	getStencilFailOperation () const
	Gets the value of the StencilFailOperationProperty property. More...

void	setStencilFailOperation (GraphicsStencilOperation value)
	Sets the value of the StencilFailOperationProperty property. More...

GraphicsStencilOperation	getStencilPassDepthFailOperation () const
	Gets the value of the StencilPassDepthFailOperationProperty property. More...

void	setStencilPassDepthFailOperation (GraphicsStencilOperation value)
	Sets the value of the StencilPassDepthFailOperationProperty property. More...

GraphicsStencilOperation	getStencilPassDepthPassOperation () const
	Gets the value of the StencilPassDepthPassOperationProperty property. More...

void	setStencilPassDepthPassOperation (GraphicsStencilOperation value)
	Sets the value of the StencilPassDepthPassOperationProperty property. More...

bool	isStencilWriteEnabled () const
	Gets the value of the StencilWriteEnabledProperty property. More...

void	setStencilWriteEnabled (bool value)
	Sets the value of the StencilWriteEnabledProperty property. More...

GraphicsCullMode	getCullMode () const
	Gets the value of the CullModeProperty property. More...

void	setCullMode (GraphicsCullMode value)
	Sets the value of the CullModeProperty property. More...

Vector4	getViewport () const
	Gets the value of the ViewportProperty property. More...

void	setViewport (Vector4 value)
	Sets the value of the ViewportProperty property. More...

ViewportMode	getViewportMode () const
	Gets the value of the ViewportModeProperty property. More...

void	setViewportMode (ViewportMode value)
	Sets the value of the ViewportModeProperty property. More...

Vector4	getScissor () const
	Gets the value of the ScissorProperty property. More...

void	setScissor (Vector4 value)
	Sets the value of the ScissorProperty property. More...

ViewportMode	getScissorMode () const
	Gets the value of the ScissorModeProperty property. More...

void	setScissorMode (ViewportMode value)
	Sets the value of the ScissorModeProperty property. More...

Additional Inherited Members
Public Member Functions inherited from kanzi::RenderPass
RenderPassSharedPtr	lookupRenderPass (string_view path)
	Resolve a render pass by path. More...

void	render (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
	Recursively render RenderPass and all of its child render passes. More...

void	renderMesh (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer)
	Use this function to render a mesh owned by a node using the material renderer that the node owns. More...

void	addChild (RenderPassSharedPtr childRenderPass)
	Adds a render pass as the last child of the render pass you set. More...

void	insertChild (size_t index, RenderPassSharedPtr childRenderPass)
	Adds a render pass as a child render pass at given index of the render pass you set. More...

void	removeChild (RenderPass &childRenderPass)
	Removes a child render pass. More...

void	removeAllChildren ()
	Removes all child render passes from a render pass. More...

RenderPassSharedPtr	getParent () const
	Gets the parent of a render pass. More...

void	setParent (RenderPassSharedPtr parent)
	Sets the parent of a render pass. More...

RenderPassSharedPtr	getChild (size_t index)
	Gets a child render pass at the given index. More...

size_t	getChildCount () const
	Returns the number of child render passes. More...

ChildContainer::const_iterator	beginChildren () const
	Returns an iterator to the beginning of the container of child render passes. More...

ChildContainer::const_iterator	endChildren () const
	Returns an iterator to the end of the container of child render passes. More...

TextureSharedPtr	getCompositionResult (Framebuffer::AttachmentPoint attachmentPoint)
	Gets color composition target that was used for rendering. More...

size_t	getTextureBindingCount () const
	Gets the number of texture bindings. More...

ResourceBinding	getTextureBinding (size_t index) const
	Gets a texture binding by index. More...

void	addTextureBinding (AbstractPropertyType propertyType, string_view path, bool fromKzb)
	Adds a texture binding. More...

void	addTextureBinding (AbstractPropertyType propertyType, string_view path)
	Adds a texture binding. More...

bool	removeTextureBinding (AbstractPropertyType propertyType)
	Removes the texture binding. More...

void	removeKzbTextureBindings ()
	Removes the resource bindings loaded from kzb files. More...

void	restoreResourcesRecursive ()
	Recursively calls restoreResources for a RenderPass and all its children. More...

virtual void	restoreResources ()
	Restore resources after suspend. More...

virtual void	loadFromKZB (const ResourceLoaderThreadContext threadContext, KzcInputStream inputStream, const KzuBinaryFileInfo *file) KZ_OVERRIDE
	Resource::loadFromKZB() implementation. More...

Public Member Functions inherited from kanzi::Resource
KzcMemoryManager *	getMemoryManager () const

	Resource (Domain *domain, string_view name)

virtual	~Resource ()

virtual void	unloadOverride ()
	Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int	getCPUMemoryUsage () const
	Function for getting the memory usage of a resource. More...

void	setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
	Set the binary directory and path of the resource. More...

const string &	getName () const
	Gets the resource name. More...

const string &	getUrl () const
	Gets the resource URL. More...

void	setUrl (string_view url)
	Sets the resource URL. More...

void	setNotLoaded ()

bool	isFromKZB () const

void	reload ()

void	reloadFromKzb (KzcInputStream inputStream, const KzuBinaryFileInfo file)

void	reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void	reloadFromFile (string_view filePath)

void	load ()

void	unload ()

bool	isLoaded () const

void	kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
	Private function for kzuResourceLoad() with specified thread context. More...

void	kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
	Private function for finishing the loading of the resource. More...

bool	isKeepAlive () const
	Tells if the resource has keep alive flag set. More...

void	setKeepAlive (bool keepAlive)
	Sets the keep alive flag. More...

Public Member Functions inherited from kanzi::Object
	Object (Domain *domain)

virtual	~Object ()

Domain *	getDomain () const
	Returns the domain the object belongs to. More...

KzuTaskScheduler *	getTaskScheduler () const
	Returns the task scheduler of the object. More...

KzuMessageDispatcher *	getMessageDispatcher () const
	Returns the message dispatcher of the object. More...

ResourceManager *	getResourceManager () const
	Returns the resource manager of the object. More...

virtual const Metaclass *	getDynamicMetaclass () const KZ_OVERRIDE
	Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr	applyObjectStyle (kanzi::StyleSharedPtr style)
	Applies a style to an object. More...

void	unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void	applyObjectStyles ()
	Apply all styles for an object node. More...

void	unapplyObjectStyles ()
	Unapplies and removes all applied styles. More...

Public Member Functions inherited from kanzi::MetaObject
virtual	~MetaObject ()

bool	isTypeOf (const Metaclass *objectType) const
	Determines if the type of this object is the given type or derived from it. More...

Public Member Functions inherited from kanzi::PropertyObject
	PropertyObject ()

virtual	~PropertyObject ()

template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...

void	removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...

bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...

bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...

void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...

void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...

virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...

template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, PropertyValuePrecedence precedence, void owner)

template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, void owner)

template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void	validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtr >	AppliedStyleContainer
	Applied style container. More...

Protected Attributes inherited from kanzi::Object
AppliedStyleContainer	m_appliedStyles
	Listing of applied styles applied to this object. More...

Detailed Description

Use the Pipeline State Render Pass to set for its child render passes the depth and stencil testing, transparency, and culling.

This render pass sets the rendering state before passing the control to its descendants. After the descendant render passes of a Pipeline State Render Pass execute, Kanzi restores the rendering state. If a Pipeline State Render Pass does not have any descendants, Kanzi does not apply the rendering state you set in that render pass.

You change the rendering state by setting the properties in a Pipeline State Render Pass. The default settings in a Pipeline State Render Pass that you can set are:

BlendModeProperty property is set to Premultiplied alpha
ColorWriteModeProperty property is set to RGBA
Depth test is enabled and set to Less
DepthWriteEnabledProperty property is enabled
CullModeProperty property is enabled and set to Back
StencilTestFunctionProperty property is disabled
ViewportProperty property is set to the complete size of #Viewport2D node or of the current composition target set by a #CompositionTargetRenderPass
ScissorProperty property is disabled, unless the current Viewport 2D node does not fill the whole composition target area

Kanzi groups the rendering state combinations that a Pipeline State Render Pass applies into these state stacks:

Color and blend state
Depth and stencil state
Composition (viewport and scissor) state
Rasterization state

If you do not set a property, Kanzi uses the default or previously set value. See CompositionStack.

Examples

To turn on stencil test and only render where stencil buffer value is not 0:

        // Enable stencil test and set the test function to not equal.
        pipelineStateRenderPass->setStencilTestFunction(GraphicsCompareFunctionNotEqual);
        // Set everything except 0 to pass. Set the reference value to 0 and mask to 0xFF (255).
        pipelineStateRenderPass->setStencilReferenceValue(0);
        pipelineStateRenderPass->setStencilMask(255);
        // Do not change the stencil buffer state.
        pipelineStateRenderPass->setStencilFailOperation(GraphicsStencilOperationKeep);
        pipelineStateRenderPass->setStencilPassDepthFailOperation(GraphicsStencilOperationKeep);
        pipelineStateRenderPass->setStencilPassDepthPassOperation(GraphicsStencilOperationKeep);

To render only the back faces of objects:

// Cull the front faces instead of the back faces.

pipelineStateRenderPass->setCullMode(GraphicsCullModeFront);

To turn off alpha blending:

// Disable blending.

pipelineStateRenderPass->setBlendMode(GraphicsBlendModeOpaque);

Member Enumeration Documentation

enum kanzi::PipelineStateRenderPass::ViewportMode

Enumerator
ViewportModeAbsolute	Absolute viewport - pixel coordinates.
ViewportModeRelative	Relative viewport - percentage of current render context size.

Constructor & Destructor Documentation

kanzi::PipelineStateRenderPass::PipelineStateRenderPass	(	Domain *	domain,
		string_view	name
	)

explicitprotected

Constructor.

Parameters

domain	Domain.
name	Name of the Pipeline State Render Pass.

Member Function Documentation

GraphicsBlendMode kanzi::PipelineStateRenderPass::getBlendMode ( ) const

inline

Gets the value of the BlendModeProperty property.

See also: setBlendMode()

void kanzi::PipelineStateRenderPass::setBlendMode ( GraphicsBlendMode value )

inline

Sets the value of the BlendModeProperty property.

See also: getBlendMode()

GraphicsColorWriteMode kanzi::PipelineStateRenderPass::getColorWriteMode ( ) const

inline

Gets the value of the ColorWriteModeProperty property.

See also: setColorWriteMode()

void kanzi::PipelineStateRenderPass::setColorWriteMode ( GraphicsColorWriteMode value )

inline

Sets the value of the ColorWriteModeProperty property.

See also: getColorWriteMode()

GraphicsCompareFunction kanzi::PipelineStateRenderPass::getDepthTestFunction ( ) const

inline

Gets the value of the DepthTestFunctionProperty property.

See also: setDepthTestFunction()

void kanzi::PipelineStateRenderPass::setDepthTestFunction ( GraphicsCompareFunction value )

inline

Sets the value of the DepthTestFunctionProperty property.

See also: getDepthTestFunction()

bool kanzi::PipelineStateRenderPass::isDepthWriteEnabled ( ) const

inline

Gets the value of the DepthWriteEnabledProperty property.

See also: setDepthWriteEnabled()

void kanzi::PipelineStateRenderPass::setDepthWriteEnabled ( bool value )

inline

Sets the value of the DepthWriteEnabledProperty property.

See also: isDepthWriteEnabled()

GraphicsCompareFunction kanzi::PipelineStateRenderPass::getStencilTestFunction ( ) const

inline

Gets the value of the StencilTestFunctionProperty property.

See also: setStencilTestFunction()

void kanzi::PipelineStateRenderPass::setStencilTestFunction ( GraphicsCompareFunction value )

inline

Sets the value of the StencilTestFunctionProperty property.

See also: getStencilTestFunction()

int kanzi::PipelineStateRenderPass::getStencilReferenceValue ( ) const

inline

Gets the value of the StencilReferenceValueProperty property.

See also: setStencilReferenceValue()

void kanzi::PipelineStateRenderPass::setStencilReferenceValue ( int value )

inline

Sets the value of the StencilReferenceValueProperty property.

See also: getStencilReferenceValue()

int kanzi::PipelineStateRenderPass::getStencilMask ( ) const

inline

Gets the value of the StencilMaskProperty property.

See also: setStencilMask()

void kanzi::PipelineStateRenderPass::setStencilMask ( int value )

inline

Sets the value of the StencilMaskProperty property.

See also: getStencilMask()

GraphicsStencilOperation kanzi::PipelineStateRenderPass::getStencilFailOperation ( ) const

inline

Gets the value of the StencilFailOperationProperty property.

See also: setStencilFailOperation()

void kanzi::PipelineStateRenderPass::setStencilFailOperation ( GraphicsStencilOperation value )

inline

Sets the value of the StencilFailOperationProperty property.

See also: getStencilFailOperation()

GraphicsStencilOperation kanzi::PipelineStateRenderPass::getStencilPassDepthFailOperation ( ) const

inline

Gets the value of the StencilPassDepthFailOperationProperty property.

See also: setStencilPassDepthFailOperation()

void kanzi::PipelineStateRenderPass::setStencilPassDepthFailOperation ( GraphicsStencilOperation value )

inline

Sets the value of the StencilPassDepthFailOperationProperty property.

See also: getStencilPassDepthFailOperation()

GraphicsStencilOperation kanzi::PipelineStateRenderPass::getStencilPassDepthPassOperation ( ) const

inline

Gets the value of the StencilPassDepthPassOperationProperty property.

See also: setStencilPassDepthPassOperation()

void kanzi::PipelineStateRenderPass::setStencilPassDepthPassOperation ( GraphicsStencilOperation value )

inline

Sets the value of the StencilPassDepthPassOperationProperty property.

See also: getStencilPassDepthPassOperation()

bool kanzi::PipelineStateRenderPass::isStencilWriteEnabled ( ) const

inline

Gets the value of the StencilWriteEnabledProperty property.

See also: setStencilWriteEnabled()

void kanzi::PipelineStateRenderPass::setStencilWriteEnabled ( bool value )

inline

Sets the value of the StencilWriteEnabledProperty property.

See also: isStencilWriteEnabled()

GraphicsCullMode kanzi::PipelineStateRenderPass::getCullMode ( ) const

inline

Gets the value of the CullModeProperty property.

See also: setCullMode()

void kanzi::PipelineStateRenderPass::setCullMode ( GraphicsCullMode value )

inline

Sets the value of the CullModeProperty property.

See also: getCullMode()

Vector4 kanzi::PipelineStateRenderPass::getViewport ( ) const

inline

Gets the value of the ViewportProperty property.

void kanzi::PipelineStateRenderPass::setViewport ( Vector4 value )

inline

Sets the value of the ViewportProperty property.

ViewportMode kanzi::PipelineStateRenderPass::getViewportMode ( ) const

inline

Gets the value of the ViewportModeProperty property.

void kanzi::PipelineStateRenderPass::setViewportMode ( ViewportMode value )

inline

Sets the value of the ViewportModeProperty property.

Vector4 kanzi::PipelineStateRenderPass::getScissor ( ) const

inline

Gets the value of the ScissorProperty property.

void kanzi::PipelineStateRenderPass::setScissor ( Vector4 value )

inline

Sets the value of the ScissorProperty property.

ViewportMode kanzi::PipelineStateRenderPass::getScissorMode ( ) const

inline

Gets the value of the ScissorModeProperty property.

void kanzi::PipelineStateRenderPass::setScissorMode ( ViewportMode value )

inline

Sets the value of the ScissorModeProperty property.

static PropertyTypeEditorInfoSharedPtr kanzi::PipelineStateRenderPass::makeEditorInfo ( )

static

static PipelineStateRenderPassSharedPtr kanzi::PipelineStateRenderPass::create	(	Domain *	domain,
		string_view	name
	)

static

Create a Pipeline State Render Pass.

Parameters

domain	The domain to use.
name	The name of the Pipeline State Render Pass.

Returns: The created Pipeline State Render Pass.

bool kanzi::PipelineStateRenderPass::pushColorBlend ( CompositionStack & compositionStack )

protected

Push the color or blend state into the composition stack.

Parameters

compositionStack Composition stack to use.

Returns: True if state was pushed.

bool kanzi::PipelineStateRenderPass::pushDepthStencil ( CompositionStack & compositionStack )

protected

Push the depth or stencil state into the composition stack.

Parameters

compositionStack Composition stack to use.

Returns: True if state was pushed.

bool kanzi::PipelineStateRenderPass::pushRasterization ( CompositionStack & compositionStack )

protected

Push the rasterization state into the composition stack.

Parameters

compositionStack Composition stack to use.

Returns: True if state was pushed.

bool kanzi::PipelineStateRenderPass::pushViewportScissor ( CompositionStack & compositionStack )

protected

Push the Viewport 2D scissor state into the composition stack.

Effectively pushes new composition area.

Parameters

compositionStack Composition stack to use.

Returns: True if state was pushed.

virtual void kanzi::PipelineStateRenderPass::renderOverride	(	Renderer3D &	renderer,
		TransformedScene3D &	transformedScene,
		CompositionStack &	compositionStack
	)

protectedvirtual

RenderPass::renderOverride() implementation.

Reimplemented from kanzi::RenderPass.

virtual CompositionRequirements kanzi::PipelineStateRenderPass::getCompositionRequirements ( ) const

protectedvirtual

RenderPass::requiresDepthBuffer() implementation.

Reimplemented from kanzi::RenderPass.

Member Data Documentation

PropertyType<GraphicsBlendMode> kanzi::PipelineStateRenderPass::BlendModeProperty

static

Use the Blend Mode property to override the blend mode set in each node that this render pass renders.

The default value is GraphicsBlendModeOpaque.

See also: setBlendMode(), getBlendMode()

PropertyType<GraphicsColorWriteMode> kanzi::PipelineStateRenderPass::ColorWriteModeProperty

static

Use the Color Write Mode property to set which channels the render pass writes to the color buffer.

To disable the color write, set the property to None. The default value is GraphicsColorWriteModeRGBA.

See also: setColorWriteMode(), getColorWriteMode()

PropertyType<GraphicsCompareFunction> kanzi::PipelineStateRenderPass::DepthTestFunctionProperty

static

Use the Depth Test Function property to control whether the depth test discards a fragment.

The default value is GraphicsCompareFunctionLess.

See also: setDepthTestFunction(), getDepthTestFunction()

PropertyType<bool> kanzi::PipelineStateRenderPass::DepthWriteEnabledProperty

static

Use the Depth Write Enabled property to set whether the render pass writes to the depth buffer.

The default value is True.

See also: setDepthWriteEnabled(), isDepthWriteEnabled()

PropertyType<GraphicsCompareFunction> kanzi::PipelineStateRenderPass::StencilTestFunctionProperty

static

Use the Stencil Test Function property to control whether the stencil test discards a fragment.

The default value is GraphicsCompareFunctionDisabled.

See also: setStencilTestFunction(), getStencilTestFunction(), StencilReferenceValueProperty

PropertyType<int> kanzi::PipelineStateRenderPass::StencilReferenceValueProperty

static

Use the Stencil Reference Value property to set the reference value for the stencil test.

The default value is 0.

See also: setStencilReferenceValue(), getStencilReferenceValue(), StencilTestFunctionProperty

PropertyType<int> kanzi::PipelineStateRenderPass::StencilMaskProperty

static

Use the Stencil Mask property to set a mask on which the AND operation is executed with both the reference value and the stored stencil value when the test is done.

The default value is 255.

See also: setStencilMask(), getStencilMask()

PropertyType<GraphicsStencilOperation> kanzi::PipelineStateRenderPass::StencilFailOperationProperty

static

Use the Stencil Fail Operation property to set the operation that the render pass performs when the stencil test fails.

The default value is GraphicsStencilOperationKeep.

See also: setStencilFailOperation(), getStencilFailOperation()

PropertyType<GraphicsStencilOperation> kanzi::PipelineStateRenderPass::StencilPassDepthFailOperationProperty

static

Use the Stencil Pass Depth Fail Operation property to set the operation that the render pass performs when the stencil test passes, but the depth test fails.

The default value is GraphicsStencilOperationKeep.

See also: setStencilPassDepthFailOperation(), getStencilPassDepthFailOperation()

PropertyType<GraphicsStencilOperation> kanzi::PipelineStateRenderPass::StencilPassDepthPassOperationProperty

static

Use the Stencil Pass Depth Pass Operation property to set the operation that the render pass performs when both, the stencil and the depth test, pass.

The default value is GraphicsStencilOperationKeep.

See also: setStencilPassDepthPassOperation(), getStencilPassDepthPassOperation()

PropertyType<bool> kanzi::PipelineStateRenderPass::StencilWriteEnabledProperty

static

Use the Stencil Write Enabled property to set whether to enable writing to the stencil buffer.

The default value is True.

See also: setStencilWriteEnabled(), isStencilWriteEnabled()

PropertyType<GraphicsCullMode> kanzi::PipelineStateRenderPass::CullModeProperty

static

Use the Cull Mode property to set the culling of the triangle faces in the rendered meshes.

Set to:

Back to render the triangles whose normal points towards a Camera node
Front to render the triangles whose normal points away from a Camera node The default value is GraphicsCullModeBack.
See also
setCullMode(), getCullMode()

PropertyType<Vector4> kanzi::PipelineStateRenderPass::ViewportProperty

static

Use the Viewport property to modify the current rendering Viewport 2D node.

You can define the Viewport 2D node in either relative or absolute coordinates, the default is relative. Use the ViewportModeProperty property to set the coordinate type.

See also: setViewport(), getViewport(), ViewportModeProperty

PropertyType<ViewportMode> kanzi::PipelineStateRenderPass::ViewportModeProperty

static

Use the Viewport Mode property to set the coordinate type for the Viewport 2D node.

See also: setViewportMode(), getViewportMode(), ViewportProperty

PropertyType<Vector4> kanzi::PipelineStateRenderPass::ScissorProperty

static

Use the Scissor property to set the scissor test within the current rendering Viewport 2D node.

You can define the scissor in either relative or absolute coordinates, the default is relative. Use the ScissorModeProperty property to set the coordinate type.

See also: setScissor(), getScissor(), ScissorModeProperty

PropertyType<ViewportMode> kanzi::PipelineStateRenderPass::ScissorModeProperty

static

Use the Scissor Mode property to set the scissor test coordinate mode.

See also: setScissorMode(), getScissorMode(), ScissorProperty

The documentation for this class was generated from the following file:

kanzi/core.ui/graphics3d/pipeline_state_render_pass.hpp

Public Types

Static Public Member Functions

Protected Member Functions

Properties

Additional Inherited Members

Detailed Description

Examples

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
