kanzi::Renderbuffer Class Reference

Renderbuffers provide the images that can be rendered to by attaching them to the framebuffer as color or depth stencil images. More...

#include <kanzi/core.ui/platform/graphics_backend/gl/renderbuffer.hpp>

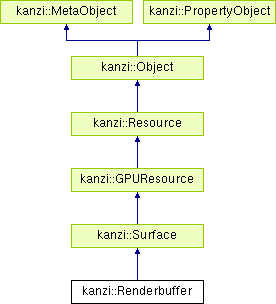

Inheritance diagram for kanzi::Renderbuffer:
kanzi::Surface kanzi::GPUResource kanzi::Resource kanzi::Object kanzi::MetaObject kanzi::PropertyObject

Classes

struct  CreateInfo
 Renderbuffer creation parameters. More...


Public Member Functions

 Renderbuffer (Domain *domain, const CreateInfo &createInfo, string_view name)
 Construct a Renderbuffer with specified creation parameters. More...

unsigned int getNativeHandle () const
 Query the graphics device handle of the Renderbuffer. More...

- Public Member Functions inherited from kanzi::Surface
void attach (Usage usage, APIAttachment apiAttachment, Face face, unsigned int mipmapLevel)
 Attach surface to framebuffer. More...

GraphicsFormat getFormat () const
 Get GraphicsFormat of Surface. More...

unsigned int getFeatures () const
 Get features for Surface. More...

unsigned int getRenderTargetSampleCount () const
 Get number of multisample samples for Surface. More...

unsigned int getWidth () const
 Get width in pixels. More...

unsigned int getHeight () const
 Get height in pixels. More...

unsigned int getSliceCount () const
 Get number of slices. More...

unsigned int getFaceCount () const
 Get number of faces. This should be six for cubemaps and one for everything else. More...

unsigned int getMipmapLevelCount () const
 Get number of mipmap levels. More...

- Public Member Functions inherited from kanzi::GPUResource
virtual ~GPUResource () KZ_OVERRIDE

void invalidate ()
 Notify resource that graphics context was lost and all GPU resources are invalid. More...

unsigned int getGPUMemoryUsage () const

RenderergetRenderer () const

bool isDeployed () const

- Public Member Functions inherited from kanzi::Resource
KzcMemoryManagergetMemoryManager () const

 Resource (Domain *domain, string_view name)

virtual ~Resource ()

virtual void loadFromKZB (const ResourceLoaderThreadContext *threadContext, KzcInputStream *inputStream, const KzuBinaryFileInfo *file)
 Function for loading the resource from .KZB. More...

virtual void unloadOverride ()
 Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int getCPUMemoryUsage () const
 Function for getting the memory usage of a resource. More...

void setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
 Set the binary directory and path of the resource. More...

const string & getName () const
 Gets the resource name. More...

const string & getUrl () const
 Gets the resource URL. More...

void setUrl (string_view url)
 Sets the resource URL. More...

void setNotLoaded ()

bool isFromKZB () const

void reload ()

void reloadFromKzb (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

void reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void reloadFromFile (string_view filePath)

void load ()

void unload ()

bool isLoaded () const

void kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
 Private function for kzuResourceLoad() with specified thread context. More...

void kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
 Private function for finishing the loading of the resource. More...

bool isKeepAlive () const
 Tells if the resource has keep alive flag set. More...

void setKeepAlive (bool keepAlive)
 Sets the keep alive flag. More...

- Public Member Functions inherited from kanzi::Object
 Object (Domain *domain)

virtual ~Object ()

DomaingetDomain () const
 Returns the domain the object belongs to. More...

KzuTaskSchedulergetTaskScheduler () const
 Returns the task scheduler of the object. More...

KzuMessageDispatchergetMessageDispatcher () const
 Returns the message dispatcher of the object. More...

ResourceManagergetResourceManager () const
 Returns the resource manager of the object. More...

virtual const MetaclassgetDynamicMetaclass () const KZ_OVERRIDE
 Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr applyObjectStyle (kanzi::StyleSharedPtr style)
 Applies a style to an object. More...

void unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void applyObjectStyles ()
 Apply all styles for an object node. More...

void unapplyObjectStyles ()
 Unapplies and removes all applied styles. More...

- Public Member Functions inherited from kanzi::MetaObject
virtual ~MetaObject ()

bool isTypeOf (const Metaclass *objectType) const
 Determines if the type of this object is the given type or derived from it. More...

- Public Member Functions inherited from kanzi::PropertyObject
 PropertyObject ()

virtual ~PropertyObject ()

template<typename DataType >
void setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
 Sets the local value of a property. More...

void removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getProperty (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalProperty (const PropertyType< DataType > &propertyType) const
 Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getPropertyBase (const PropertyType< DataType > &propertyType) const
 Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType > getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool hasValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value. More...

bool hasBaseValue (AbstractPropertyType propertyType) const
 Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool hasLocalValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a local value set for the property. More...

bool hasNonClassValue (AbstractPropertyType propertyType) const
 Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void removeLocalValue (AbstractPropertyType propertyType)
 Removes the local value associated with the property. More...

void copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
 Copies local value of single property from another object. More...

void copyLocalValues (const PropertyObject &other)
 Copies all local values from another object. More...

virtual void onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
 Virtual function to handle property change notifications. More...

template<typename DataType >
void addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

template<typename DataType >
void removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource *valueSource, void *owner)

template<typename DataType >
void addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
 Gets number of current notification handlers for given property type. More...


Static Public Member Functions

static RenderbufferSharedPtr create (Domain *domain, const CreateInfo &createInfo, string_view name)
 Create a Renderbuffer with the provided creation parameters. More...

static RenderbufferSharedPtr create (Domain *domain, const CreateInfo &createInfo)
 Create a Renderbuffer with the provided creation parameters. More...

- Static Public Member Functions inherited from kanzi::Object
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...

- Static Public Member Functions inherited from kanzi::MetaObject
static const MetaclassgetStaticMetaclass ()
 Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr makeEditorInfo ()
 Default implementation that returns empty editor info. More...


Protected Member Functions

virtual void invalidateOverride () KZ_OVERRIDE
 Notify resource that graphics context was lost and all GPU resources are invalid. Called by invalidate() More...

virtual void attachOverride (Usage usage, APIAttachment apiAttachment, Face face, unsigned int mipmapLevel) KZ_OVERRIDE

virtual GraphicsFormat getFormatOverride () const KZ_OVERRIDE

virtual unsigned int getFeaturesOverride () const KZ_OVERRIDE

virtual unsigned int getRenderTargetSampleCountOverride () const KZ_OVERRIDE

virtual unsigned int getWidthOverride () const KZ_OVERRIDE

virtual unsigned int getHeightOverride () const KZ_OVERRIDE

virtual unsigned int getSliceCountOverride () const KZ_OVERRIDE

virtual unsigned int getFaceCountOverride () const KZ_OVERRIDE

virtual unsigned int getMipmapLevelCountOverride () const KZ_OVERRIDE

virtual bool isDeployedOverride () const KZ_OVERRIDE

virtual void reloadOverride () KZ_OVERRIDE
 Resource::reloadOverride() implementation. More...

virtual unsigned int getGPUMemoryUsageOverride () const KZ_OVERRIDE

- Protected Member Functions inherited from kanzi::Surface
 Surface (Domain *domain, string_view name)

- Protected Member Functions inherited from kanzi::GPUResource
 GPUResource (Domain *domain, string_view name="")

- Protected Member Functions inherited from kanzi::Resource
virtual void reloadFromKzbOverride (KzcInputStream *inputStream, const KzuBinaryFileInfo *file)

virtual void reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void reloadFromFileOverride (string_view filePath)

virtual unsigned int getCPUMemoryUsageOverride () const

- Protected Member Functions inherited from kanzi::Object
void initialize ()

void onCopy (const Object &other)

- Protected Member Functions inherited from kanzi::MetaObject
 MetaObject ()

void initialize ()

- Protected Member Functions inherited from kanzi::PropertyObject
void addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, PropertyValuePrecedence precedence, void *owner)

void removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource *valueSource, void *owner)

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntrygetTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourcegetClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntryfindLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryconstructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntryacquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStoragefindPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
 Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorageacquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStoragefindModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorageacquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStoragefindNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptorfindPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
 Copy local value from property storage. More...

PropertyStorageContainer::iterator beginPropertyStorage ()

PropertyStorageContainer::iterator endPropertyStorage ()

virtual void notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void onCopy (const PropertyObject &other)


Friends

void swap (Renderbuffer &buffer1, Renderbuffer &buffer2)


Additional Inherited Members

- Public Types inherited from kanzi::Surface
enum  Usage { UsageRenderTarget, UsageMultisampleResolveBlitDestination }

enum  APIAttachment {
  APIAttachmentColor0, APIAttachmentColor1, APIAttachmentColor2, APIAttachmentColor3,
  APIAttachmentDepth, APIAttachmentStencil, APIAttachmentCount, APIAttachmentInvalid
}

enum  Face {
  FacePositiveX, FaceNegativeX, FacePositiveY, FaceNegativeY,
  FacePositiveZ, FaceNegativeZ, FaceDefault
}
 Texture face enumeration. More...

- Public Types inherited from kanzi::GPUResource
enum  MemoryType { GpuOnly, GpuAndRam, RamOnly }
 Memory upload and RAM preservation strategy for GPU resources. More...

- Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStoragePropertyStoragePtr

typedef vector< PropertyStoragePtrPropertyStorageContainer

typedef PropertyStorageContainer::iterator PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator PropertyStorageReverseIterator

- Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtrAppliedStyleContainer
 Applied style container. More...

- Protected Attributes inherited from kanzi::Object
AppliedStyleContainer m_appliedStyles
 Listing of applied styles applied to this object. More...


Detailed Description

Renderbuffers provide the images that can be rendered to by attaching them to the framebuffer as color or depth stencil images.

Unlike textures, you cannot access renderbuffers using the samplers from shaders. When you direct rendering to a framebuffer, the depth and stencil tests require either renderbuffer or texture attached to the framebuffer.

You can read the content of renderbuffers with the ReadPixels() function.

Constructor & Destructor Documentation

kanzi::Renderbuffer::Renderbuffer ( Domain domain,
const CreateInfo createInfo,
string_view  name
)
explicit

Construct a Renderbuffer with specified creation parameters.

Parameters
domainDomain
createInfoRenderbuffer creation parameters.
nameName

Member Function Documentation

static RenderbufferSharedPtr kanzi::Renderbuffer::create ( Domain domain,
const CreateInfo createInfo,
string_view  name
)
static

Create a Renderbuffer with the provided creation parameters.

Parameters
domainDomain
createInfoRenderbuffer creation parameters.
name
Returns
Newly created Renderbuffer
static RenderbufferSharedPtr kanzi::Renderbuffer::create ( Domain domain,
const CreateInfo createInfo
)
static

Create a Renderbuffer with the provided creation parameters.

Parameters
domainDomain
createInfoRenderbuffer creation parameters.
Returns
Newly created Renderbuffer
unsigned int kanzi::Renderbuffer::getNativeHandle ( ) const

Query the graphics device handle of the Renderbuffer.

Returns
Graphics device handle of the Renderbuffer.
virtual void kanzi::Renderbuffer::invalidateOverride ( )
protectedvirtual

Notify resource that graphics context was lost and all GPU resources are invalid. Called by invalidate()

Reimplemented from kanzi::GPUResource.

virtual void kanzi::Renderbuffer::attachOverride ( Usage  usage,
APIAttachment  apiAttachment,
Face  face,
unsigned int  mipmapLevel
)
protectedvirtual

Implements kanzi::Surface.

virtual GraphicsFormat kanzi::Renderbuffer::getFormatOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getFeaturesOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getRenderTargetSampleCountOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getWidthOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getHeightOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getSliceCountOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getFaceCountOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual unsigned int kanzi::Renderbuffer::getMipmapLevelCountOverride ( ) const
protectedvirtual

Implements kanzi::Surface.

virtual bool kanzi::Renderbuffer::isDeployedOverride ( ) const
protectedvirtual

Implements kanzi::GPUResource.

virtual void kanzi::Renderbuffer::reloadOverride ( )
protectedvirtual

Resource::reloadOverride() implementation.

Reimplemented from kanzi::Resource.

virtual unsigned int kanzi::Renderbuffer::getGPUMemoryUsageOverride ( ) const
protectedvirtual

Reimplemented from kanzi::GPUResource.

Friends And Related Function Documentation

void swap ( Renderbuffer buffer1,
Renderbuffer buffer2
)
friend

The documentation for this class was generated from the following file:
