A resource dictionary is a container that maps resource IDs to resources. More...

#include <kanzi/core.ui/resource/resource_dictionary.hpp>

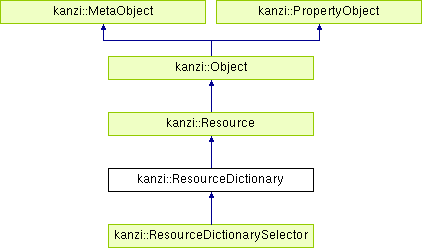

Inheritance diagram for kanzi::ResourceDictionary:

Public Types
typedef vector< ResourceDictionarySharedPtr >	DictionaryContainer
	The type used for container of nested resource dictionaries. More...

typedef DictionaryContainer::const_iterator	DictionaryConstIterator
	The type used for iterators of nested resource dictionary containers. More...

typedef DictionaryContainer::const_reverse_iterator	DictionaryConstReverseIterator
	The type used for reverse iterators of nested resource dictionary containers. More...

typedef unordered_map< ResourceID, string >	URLMap
	The type used for mapping resource IDs to URLs. More...

typedef URLMap::const_iterator	URLConstIterator
	The type used for iterators of the mapping of resource IDs to URLs. More...

typedef unordered_map< ResourceID, ResourceSharedPtr >	ResourceMap
	The type used for mapping resource IDs to resources. More...

typedef ResourceMap::const_iterator	ResourceConstIterator
	The type used for iterators of the mapping of resource IDs to resources. More...

typedef vector< ResourceSharedPtr >	AnonymousResourceContainer
	The type used for the container of anonymous resources. More...

typedef AnonymousResourceContainer::const_iterator	AnonymousResourceConstIterator
	The type used for iterators of the anonymous resource container. More...

Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr

typedef vector< PropertyStoragePtr >	PropertyStorageContainer

typedef PropertyStorageContainer::iterator	PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Public Member Functions
void	add (const ResourceID &key, string_view url)
	Adds a resource ID to a resource URL mapping to the resource dictionary. More...

void	add (const ResourceID &key, ResourceSharedPtr resource)
	Adds a resource ID to a resource pointer mapping to the resource dictionary. More...

void	remove (const ResourceID &key)
	Removes a resource ID mapping from the resource dictionary. More...

bool	contains (const ResourceID &key) const
	Tells whether the resource dictionary contains a mapping for the resource ID you pass to the function. More...

optional< string >	find (const ResourceID &key) const
	Resolves the mapping from the resource ID you pass to the function to the URL of the resource. More...

virtual optional< string >	findOverride (const ResourceID &key) const
	Implementation for find(). More...

URLConstIterator	beginUrls () const
	Returns an iterator pointing to the first element of the URL mappings container. More...

URLConstIterator	endUrls () const
	Returns an iterator pointing to the element following the last element of the URL mappings container. More...

AnonymousResourceConstIterator	beginAnonymousResources () const
	Returns an iterator pointing to the first element of the anonymous resources container. More...

AnonymousResourceConstIterator	endAnonymousResources () const
	Returns an iterator pointing to the element following the last element of the anonymous resources container. More...

void	addAnonymousResource (ResourceSharedPtr resource)
	Adds an anonymous resource to the resource dictionary. More...

void	removeAnonymousResource (const Resource &resource)
	Removes an anonymous resource from the resource dictionary. More...

void	add (ResourceDictionarySharedPtr resourceDictionary)
	Adds a nested resource dictionary to the resource dictionary. More...

size_t	getDictionaryCount () const
	Gets the number of nested resource dictionaries in the resource dictionary. More...

void	removeDictionary (size_t index)
	Removes a nested resource dictionary from the resource dictionary. More...

DictionaryConstReverseIterator	crbeginDictionaries () const
	Returns a reverse iterator to the first element of the reversed nested resource dictionary container. More...

DictionaryConstReverseIterator	crendDictionaries () const
	Returns a reverse iterator to the element following the last element of the reversed nested resource dictionary container. More...

ResourceDictionarySharedPtr	findDictionary (string_view name) const
	Searches for a nested dictionary with the specified name and returns a pointer to it. More...

ResourceSharedPtr	findStoredResource (const ResourceID &key) const
	Find explicitly stored resource pointer from the dictionary. More...

ResourceSharedPtr	acquire (const ResourceID &key) const
	Gets from the resource dictionary the resource with the resource ID you pass to the function. More...

template<typename Type >
shared_ptr< Type >	acquire (const ResourceID &key) const
	Gets from the resource dictionary the resource with the resource ID you pass to the function and casts the resource to the type you specify. More...

ResourceSharedPtr	tryAcquire (const ResourceID &key) const
	Gets from the resource dictionary the resource with the resource ID you pass to the function. More...

template<typename Type >
shared_ptr< Type >	tryAcquire (const ResourceID &key) const
	Gets from the resource dictionary the resource with the resource ID you pass to the function and casts the resource to the type you specify. More...

ResourceManager::AcquireTaskSharedPtr	acquireAsync (const ResourceID &key, ResourceManager::AsyncAcquireFinishedCallback func) const
	Acquire resource asynchronously. More...

void	merge (const ResourceDictionary &preferredDictionary)
	Modifies this resource dictionary by copying into this resource dictionary the contents of the resource dictionary you pass to the function. More...

ResourceDictionarySharedPtr	clone () const
	Duplicates a resource dictionary. More...

void	load (KzcInputStream inputStream, const KzuBinaryFileInfo fileInfo)
	Loads a resource dictionary from input stream. More...

Public Member Functions inherited from kanzi::Resource
KzcMemoryManager *	getMemoryManager () const

	Resource (Domain *domain, string_view name)

virtual	~Resource ()

virtual void	loadFromKZB (const ResourceLoaderThreadContext threadContext, KzcInputStream inputStream, const KzuBinaryFileInfo *file)
	Function for loading the resource from .KZB. More...

virtual void	unloadOverride ()
	Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int	getCPUMemoryUsage () const
	Function for getting the memory usage of a resource. More...

void	setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
	Set the binary directory and path of the resource. More...

const string &	getName () const
	Gets the resource name. More...

const string &	getUrl () const
	Gets the resource URL. More...

void	setUrl (string_view url)
	Sets the resource URL. More...

void	setNotLoaded ()

bool	isFromKZB () const

void	reload ()

void	reloadFromKzb (KzcInputStream inputStream, const KzuBinaryFileInfo file)

void	reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void	reloadFromFile (string_view filePath)

void	load ()

void	unload ()

bool	isLoaded () const

void	kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
	Private function for kzuResourceLoad() with specified thread context. More...

void	kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
	Private function for finishing the loading of the resource. More...

bool	isKeepAlive () const
	Tells if the resource has keep alive flag set. More...

void	setKeepAlive (bool keepAlive)
	Sets the keep alive flag. More...

Public Member Functions inherited from kanzi::Object
	Object (Domain *domain)

virtual	~Object ()

Domain *	getDomain () const
	Returns the domain the object belongs to. More...

KzuTaskScheduler *	getTaskScheduler () const
	Returns the task scheduler of the object. More...

KzuMessageDispatcher *	getMessageDispatcher () const
	Returns the message dispatcher of the object. More...

ResourceManager *	getResourceManager () const
	Returns the resource manager of the object. More...

virtual const Metaclass *	getDynamicMetaclass () const KZ_OVERRIDE
	Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr	applyObjectStyle (kanzi::StyleSharedPtr style)
	Applies a style to an object. More...

void	unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void	applyObjectStyles ()
	Apply all styles for an object node. More...

void	unapplyObjectStyles ()
	Unapplies and removes all applied styles. More...

Public Member Functions inherited from kanzi::MetaObject
virtual	~MetaObject ()

bool	isTypeOf (const Metaclass *objectType) const
	Determines if the type of this object is the given type or derived from it. More...

Public Member Functions inherited from kanzi::PropertyObject
	PropertyObject ()

virtual	~PropertyObject ()

template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...

void	removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...

bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...

bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...

void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...

void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...

virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...

template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, PropertyValuePrecedence precedence, void owner)

template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, void owner)

template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void	validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Static Public Member Functions
static ResourceDictionarySharedPtr	create (Domain *domain, string_view name)
	Creates a resource dictionary. More...

static ResourceDictionarySharedPtr	loadFromKZB (Domain *domain, string_view name, KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)
	Loads a resource dictionary from a file. More...

Static Public Member Functions inherited from kanzi::Object
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Static Public Member Functions inherited from kanzi::MetaObject
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Protected Member Functions
void	loadFromKZB (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)
	Loads a resource dictionary from a file. More...

	ResourceDictionary (Domain *domain, string_view name)
	Constructor. More...

virtual ResourceSharedPtr	acquireOverride (const ResourceID &key) const
	Implements resource lookup described in acquire. More...

virtual ResourceSharedPtr	tryAcquireOverride (const ResourceID &key) const
	Implements resource lookup described in tryAcquire. More...

virtual ResourceManager::AcquireTaskSharedPtr	acquireAsyncOverride (const ResourceID &key, ResourceManager::AsyncAcquireFinishedCallback func) const
	Implements asynchronous resource acquire described in #acquireResourceAsync. More...

virtual ResourceDictionarySharedPtr	cloneOverride () const
	Implements cloning of the object in clone. More...

Protected Member Functions inherited from kanzi::Resource
virtual void	reloadOverride ()

virtual void	reloadFromKzbOverride (KzcInputStream inputStream, const KzuBinaryFileInfo file)

virtual void	reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void	reloadFromFileOverride (string_view filePath)

virtual unsigned int	getCPUMemoryUsageOverride () const

Protected Member Functions inherited from kanzi::Object
void	initialize ()

void	onCopy (const Object &other)

Protected Member Functions inherited from kanzi::MetaObject
	MetaObject ()

void	initialize ()

Protected Member Functions inherited from kanzi::PropertyObject
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, PropertyValuePrecedence precedence, void owner)

void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, void owner)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...

PropertyStorageContainer::iterator	beginPropertyStorage ()

PropertyStorageContainer::iterator	endPropertyStorage ()

virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void	onCopy (const PropertyObject &other)

Static Protected Member Functions
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

Additional Inherited Members
Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtr >	AppliedStyleContainer
	Applied style container. More...

Protected Attributes inherited from kanzi::Object
AppliedStyleContainer	m_appliedStyles
	Listing of applied styles applied to this object. More...

Detailed Description

A resource dictionary is a container that maps resource IDs to resources.

A node can refer to resources by setting resource IDs to resource ID properties. You can set a resource dictionary to the node or to any of its parent nodes to define which resources the node will use. You can use resource dictionary to group similar resources to logical entities like themes or locales, and change a resource dictionary of a node to change multiple resources at the same time.

You can use Node::acquireResource to get the resource from the resource dictionary of a node or from the resource dictionaries of its parent nodes.

A resource dictionary can map resource IDs to resources in these ways: 1) Resource ID can map directly to a resource pointer. 2) Resource ID can map indirectly to a resource with a resource URL. Use acquire and tryAcquire functions to get a mapped resource regardless of the way how a resource ID is mapped to a resource.

You can store nested resource dictionaries in a resource dictionary. When you are getting a resource from a resource dictionary and the resource dictionary cannot find the resource ID you specify, the resource dictionary looks for the resource ID recursively in the nested resource dictionaries.

In a resource dictionary you can store resources without mapping a resource ID to them. In Kanzi Engine such resources are called anonymous resources. You can get anonymous resources with beginAnonymousResources and endAnonymousResources.

Examples

To create a resource dictionary:

// Create a resource dictionary.

ResourceDictionarySharedPtr dictionary = ResourceDictionary::create(domain, "Dictionary");

To add content to a resource dictionary:

        // Add resources to a resource dictionary.
        dictionary->add(ResourceID("red icon"), texture);
        dictionary->add(ResourceID("blue icon"), "kzb://my_project/Textures/Blue Icon");

To get resources from a resource dictionary:

        // Acquire resources from a resource dictionary.
        ResourceSharedPtr redIcon = dictionary->acquire(ResourceID("red icon"));
        ResourceSharedPtr blueIcon = dictionary->acquire(ResourceID("blue icon"));

To change the resource dictionary of a node:

// Change the resource dictionary of a node.

node->setResourceDictionary(dictionary);

To extend the existing resource dictionary of a node:

// Extend the existing resource dictionary of a node with a nested resource dictionary.

node->addResourceDictionary(dictionary);

Member Typedef Documentation

typedef vector<ResourceDictionarySharedPtr> kanzi::ResourceDictionary::DictionaryContainer

The type used for container of nested resource dictionaries.

typedef DictionaryContainer::const_iterator kanzi::ResourceDictionary::DictionaryConstIterator

The type used for iterators of nested resource dictionary containers.

typedef DictionaryContainer::const_reverse_iterator kanzi::ResourceDictionary::DictionaryConstReverseIterator

The type used for reverse iterators of nested resource dictionary containers.

typedef unordered_map<ResourceID, string> kanzi::ResourceDictionary::URLMap

The type used for mapping resource IDs to URLs.

typedef URLMap::const_iterator kanzi::ResourceDictionary::URLConstIterator

The type used for iterators of the mapping of resource IDs to URLs.

typedef unordered_map<ResourceID, ResourceSharedPtr> kanzi::ResourceDictionary::ResourceMap

The type used for mapping resource IDs to resources.

typedef ResourceMap::const_iterator kanzi::ResourceDictionary::ResourceConstIterator

The type used for iterators of the mapping of resource IDs to resources.

typedef vector<ResourceSharedPtr> kanzi::ResourceDictionary::AnonymousResourceContainer

The type used for the container of anonymous resources.

typedef AnonymousResourceContainer::const_iterator kanzi::ResourceDictionary::AnonymousResourceConstIterator

The type used for iterators of the anonymous resource container.

Constructor & Destructor Documentation

kanzi::ResourceDictionary::ResourceDictionary	(	Domain *	domain,
		string_view	name
	)

explicitprotected

Constructor.

Parameters

domain	The domain to which the resource dictionary belongs.
name	The name of the resource dictionary.

Member Function Documentation

static ResourceDictionarySharedPtr kanzi::ResourceDictionary::create	(	Domain *	domain,
		string_view	name
	)

static

Creates a resource dictionary.

Parameters

domain	The domain to which the resource dictionary belongs.
name	The name of the resource dictionary.

Returns: The pointer to the resource dictionary.

void kanzi::ResourceDictionary::add	(	const ResourceID &	key,
		string_view	url
	)

Adds a resource ID to a resource URL mapping to the resource dictionary.

Parameters

key	The resource id.
url	The URL pointing to the resource.

void kanzi::ResourceDictionary::add	(	const ResourceID &	key,
		ResourceSharedPtr	resource
	)

Adds a resource ID to a resource pointer mapping to the resource dictionary.

Parameters

key	The resource id.
resource	The resource pointer.

void kanzi::ResourceDictionary::remove ( const ResourceID & key )

Removes a resource ID mapping from the resource dictionary.

Parameters

key	The resource ID you want to remove.

bool kanzi::ResourceDictionary::contains ( const ResourceID & key ) const

Tells whether the resource dictionary contains a mapping for the resource ID you pass to the function.

Parameters

key	The resource ID for which you want to check whether there is a mapping in the resource dictionary.

Returns: True if the resource dictionary or a nested resource dictionary contains a mapping for the resource ID you passed to the function.

optional<string> kanzi::ResourceDictionary::find ( const ResourceID & key ) const

Resolves the mapping from the resource ID you pass to the function to the URL of the resource.

This function ignores the direct resource ID to resource mappings.

Parameters

key	The resource ID of the resource for which you want to get the URL.

Returns: The resource URL if the resource dictionary or a nested resource dictionary contains a resource ID you passed. Otherwise returns nullopt.

virtual optional<string> kanzi::ResourceDictionary::findOverride ( const ResourceID & key ) const

virtual

Implementation for find().

Reimplemented in kanzi::ResourceDictionarySelector.

URLConstIterator kanzi::ResourceDictionary::beginUrls ( ) const

Returns an iterator pointing to the first element of the URL mappings container.

Returns: An iterator pointing to the first element of the container.

URLConstIterator kanzi::ResourceDictionary::endUrls ( ) const

Returns an iterator pointing to the element following the last element of the URL mappings container.

Returns: An iterator pointing to the element following the last element of the URL mappings container.

AnonymousResourceConstIterator kanzi::ResourceDictionary::beginAnonymousResources ( ) const

Returns an iterator pointing to the first element of the anonymous resources container.

Returns: An iterator pointing to the first element of the anonymous resources container.

AnonymousResourceConstIterator kanzi::ResourceDictionary::endAnonymousResources ( ) const

Returns an iterator pointing to the element following the last element of the anonymous resources container.

Returns: An iterator pointing to the element following the last element of the anonymous resources container.

void kanzi::ResourceDictionary::addAnonymousResource ( ResourceSharedPtr resource )

Adds an anonymous resource to the resource dictionary.

Parameters

resource The anonymous resource you want to add to the resource dictionary.

void kanzi::ResourceDictionary::removeAnonymousResource ( const Resource & resource )

Removes an anonymous resource from the resource dictionary.

Parameters

resource The anonymous resource you want to remove from the resource dictionary. If the resource does not exist in the resource dictionary, the function does not do anything.

void kanzi::ResourceDictionary::add ( ResourceDictionarySharedPtr resourceDictionary )

Adds a nested resource dictionary to the resource dictionary.

Since only a pointer to the nested resource dictionary is stored, the same resource dictionary can be added as a nested resource dictionary to multiple dictionaries. Note that it is forbidden to form cycles with the nested resource dictionaries.

Parameters

resourceDictionary The nested resource dictionary you want to add to the resource dictionary.

size_t kanzi::ResourceDictionary::getDictionaryCount ( ) const

Gets the number of nested resource dictionaries in the resource dictionary.

Returns: The number of nested resource dictionaries in the resource dictionary.

void kanzi::ResourceDictionary::removeDictionary ( size_t index )

Removes a nested resource dictionary from the resource dictionary.

Parameters

index The index of the nested resource dictionary you want to remove.

DictionaryConstReverseIterator kanzi::ResourceDictionary::crbeginDictionaries ( ) const

Returns a reverse iterator to the first element of the reversed nested resource dictionary container.

It corresponds to the last element of the non-reversed container.

Returns: A reverse iterator to the first element of the reversed nested resource dictionary container.

DictionaryConstReverseIterator kanzi::ResourceDictionary::crendDictionaries ( ) const

Returns a reverse iterator to the element following the last element of the reversed nested resource dictionary container.

It corresponds to the element preceding the first element of the non-reversed container.

Returns: A reverse iterator to the element following the last element of the reversed nested resource dictionary container.

ResourceDictionarySharedPtr kanzi::ResourceDictionary::findDictionary ( string_view name ) const

Searches for a nested dictionary with the specified name and returns a pointer to it.

Parameters

name	The name of the dictionary to find.

Returns: A child dictionary with the specified name, null otherwise.

ResourceSharedPtr kanzi::ResourceDictionary::findStoredResource ( const ResourceID & key ) const

Find explicitly stored resource pointer from the dictionary.

Does not try to acquire from resource manager, use acquire() if necessary.

ResourceSharedPtr kanzi::ResourceDictionary::acquire ( const ResourceID & key ) const

Gets from the resource dictionary the resource with the resource ID you pass to the function.

Any resource URL mappings are forwarded to ResourceManager::acquireResource. Classes that derive from ResourceDictionary can override the behavior of acquire by implementing acquireOverride.

Parameters

key	The resource ID of the resource you want to get.

Returns

The resource to which the resource ID is mapped.

If the resource ID is mapped to a resource pointer, the function returns the resource pointer.
If the resource ID is mapped to a resource URL, the function uses the URL to query the resource from ResourceManager::acquireResource.
If the resource dictionary has nested resource dictionaries, the function forwards the query to the nested dictionaries: the last nested resource dictionary is searched first, and the first nested resource dictionary is searched last.
If the resource ID is not mapped to anything in this resource dictionary or any of the nested dictionaries, the function returns nullptr.

template<typename Type >

shared_ptr<Type> kanzi::ResourceDictionary::acquire ( const ResourceID & key ) const

inline

Gets from the resource dictionary the resource with the resource ID you pass to the function and casts the resource to the type you specify.

See also: acquire

ResourceSharedPtr kanzi::ResourceDictionary::tryAcquire ( const ResourceID & key ) const

Gets from the resource dictionary the resource with the resource ID you pass to the function.

Any resource URL mappings are forwarded to ResourceManager::tryAcquireResource. Classes that derive from ResourceDictionary can override the behavior of tryAcquire by implementing tryAcquireOverride.

Parameters

key	The resource ID of the resource you want to get.

Returns

The resource to which the resource ID is mapped.

If the resource ID is mapped to a resource pointer, the function returns the resource pointer.
If the resource ID is mapped to a resource URL, the function uses the URL to query the resource from ResourceManager::tryAcquireResource.
If the resource dictionary has nested resource dictionaries, the function forwards the query to the nested dictionaries: the last nested resource dictionary is searched first, and the first nested resource dictionary is searched last.
If the resource ID is not mapped to anything in this resource dictionary or any of the nested dictionaries, the function returns nullptr.

template<typename Type >

shared_ptr<Type> kanzi::ResourceDictionary::tryAcquire ( const ResourceID & key ) const

inline

Gets from the resource dictionary the resource with the resource ID you pass to the function and casts the resource to the type you specify.

See also: tryAcquire

ResourceManager::AcquireTaskSharedPtr kanzi::ResourceDictionary::acquireAsync	(	const ResourceID &	key,
		ResourceManager::AsyncAcquireFinishedCallback	func
	)		const

Acquire resource asynchronously.

If no resource URL mapping is found, an asynchronous task is not launched. Even if no asynchronous task is launched, the callback is not executed until the next time when callbacks would be executed normally.

Parameters

key	The resource ID of the resource you want to get.
func	Callback to execute when loading is complete.

Returns: Async task launched.

void kanzi::ResourceDictionary::merge ( const ResourceDictionary & preferredDictionary )

Modifies this resource dictionary by copying into this resource dictionary the contents of the resource dictionary you pass to the function.

Adds resource ID mappings, pointers to nested resource directories, and anonymous resources from the given resource directory to this resource directory. If there are duplicate values for the resource id mappings, prefers the values in the resource directory passed to the function.

Parameters

preferredDictionary The resource dictionary to which you want to merge this resource dictionary.

ResourceDictionarySharedPtr kanzi::ResourceDictionary::clone ( ) const

Duplicates a resource dictionary.

When you duplicate a resource dictionary which contains nested resource dictionaries, copies the pointers to the nested resource dictionaries but not the contents of the nested resource dictionaries (i.e. creates a shallow copy). Class that derive from ResourceDictionary must override the cloning implementation in cloneOverride.

Returns: The pointer to the duplicated resource dictionary.

void kanzi::ResourceDictionary::load	(	KzcInputStream *	inputStream,
		const KzuBinaryFileInfo *	fileInfo
	)

Loads a resource dictionary from input stream.

Used internally by Kanzi Engine.

Parameters

inputStream	Input stream where the resource dictionary is loaded from.
fileInfo	The descriptor for the file where the resource dictionary is loaded from.

static ResourceDictionarySharedPtr kanzi::ResourceDictionary::loadFromKZB	(	Domain *	domain,
		string_view	name,
		KzbFile &	kzbFile,
		ReadOnlyMemoryFile &	file,
		KzbMemoryParser &	parser
	)

static

Loads a resource dictionary from a file.

Used internally by Kanzi Engine.

Parameters

domain	Domain
name	Name
kzbFile	KZB file where to load from.
file	Resource Dictionary file inside the KZB file where to load from.
parser	Parser pointing to the beginning of the file.

void kanzi::ResourceDictionary::loadFromKZB	(	KzbFile &	kzbFile,
		ReadOnlyMemoryFile &	file,
		KzbMemoryParser &	parser
	)

protected

Loads a resource dictionary from a file.

Used internally by Kanzi Engine.

Parameters

kzbFile	KZB file where to load from.
file	Resource Dictionary file inside the KZB file where to load from.
parser	Parser pointing to the beginning of the file.

virtual ResourceSharedPtr kanzi::ResourceDictionary::acquireOverride ( const ResourceID & key ) const

protectedvirtual

Implements resource lookup described in acquire.

Reimplemented in kanzi::ResourceDictionarySelector.

virtual ResourceSharedPtr kanzi::ResourceDictionary::tryAcquireOverride ( const ResourceID & key ) const

protectedvirtual

Implements resource lookup described in tryAcquire.

Reimplemented in kanzi::ResourceDictionarySelector.

virtual ResourceManager::AcquireTaskSharedPtr kanzi::ResourceDictionary::acquireAsyncOverride	(	const ResourceID &	key,
		ResourceManager::AsyncAcquireFinishedCallback	func
	)		const

protectedvirtual

Implements asynchronous resource acquire described in #acquireResourceAsync.

Reimplemented in kanzi::ResourceDictionarySelector.

virtual ResourceDictionarySharedPtr kanzi::ResourceDictionary::cloneOverride ( ) const

protectedvirtual

Implements cloning of the object in clone.

Reimplemented in kanzi::ResourceDictionarySelector.

static PropertyTypeEditorInfoSharedPtr kanzi::ResourceDictionary::makeEditorInfo ( )

inlinestaticprotected

The documentation for this class was generated from the following file:

kanzi/core.ui/resource/resource_dictionary.hpp

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Examples

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation
