Use the Draw Objects Render Pass to render only nodes in a Scene node provided by an object source you set in this render pass. More...

#include <kanzi/core.ui/graphics3d/draw_objects_render_pass.hpp>

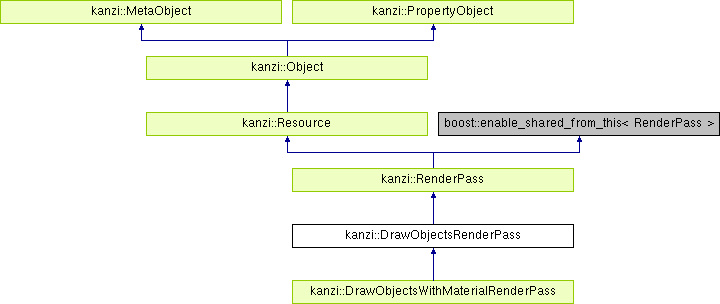

Inheritance diagram for kanzi::DrawObjectsRenderPass:

Classes
struct	ApplyLightFunctor

struct	ApplyNodeFunctor

Public Types
typedef function< void(Renderer3D &, DrawObjectsRenderPass &, KzuTransformedObjectNode &)>	ApplyNodeFunction
	Function object type for applying specific type of nodes for rendering. More...

Public Types inherited from kanzi::RenderPass
typedef vector< RenderPassSharedPtr >	ChildContainer

Public Types inherited from kanzi::PropertyObject
typedef intrusive_ptr< AbstractPropertyTypeDescriptor::PropertyStorage >	PropertyStoragePtr

typedef vector< PropertyStoragePtr >	PropertyStorageContainer

typedef PropertyStorageContainer::iterator	PropertyStorageIterator

typedef PropertyStorageContainer::const_iterator	PropertyStorageConstIterator

typedef PropertyStorageContainer::reverse_iterator	PropertyStorageReverseIterator

Static Public Member Functions
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

static DrawObjectsRenderPassSharedPtr	create (Domain *domain, string_view name)
	Create a Draw Objects Render Pass. More...

Static Public Member Functions inherited from kanzi::RenderPass
static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()

static RenderPassSharedPtr	create (Domain *domain, string_view name)
	Create a render pass. More...

static ResourceManager::LoadTaskSharedPtr	createLoadTask (string_view name, KzbFile *kzbFile, unique_ptr< ReadOnlyMemoryFile > file)
	Factory function for RenderPass Load Task, which loads a RenderPass from a kzb file. More...

Static Public Member Functions inherited from kanzi::Object
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Static Public Member Functions inherited from kanzi::MetaObject
static const Metaclass *	getStaticMetaclass ()
	Returns the metaclass of Object class. More...

static PropertyTypeEditorInfoSharedPtr	makeEditorInfo ()
	Default implementation that returns empty editor info. More...

Protected Member Functions
	DrawObjectsRenderPass (Domain *domain, string_view name)
	Constructor. More...

tuple< Camera , KzuTransformedObjectNode >	acquireTransformedCamera (TransformedScene3D &transformedScene) const
	Acquire transformed Camera node to use for rendering. More...

virtual void	renderOverride (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack) KZ_OVERRIDE
	RenderPass::renderOverride() implementation. More...

virtual void	renderMeshOverride (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer) KZ_OVERRIDE
	RenderPass::renderMeshOverride() implementation. More...

virtual Matrix4x4	applyCamera (Renderer3D &renderer, Camera &cameraNode, KzuTransformedObjectNode &transformedCamera, Vector2 viewportSize)
	Apply a Camera node projection using the current Viewport 2D node. More...

virtual void	applyObjectSource (Renderer3D &renderer, KzuObjectSource &objectSource, TransformedScene3D &transformedScene, KzuTransformedObjectNode &transformedCamera, ApplyNodeFunction applyFunction)
	Apply all objects from a given object source. More...

virtual void	applyLight (Renderer3D &renderer, KzuTransformedObjectNode &transformedNode)
	Renderer3D apply function for applying lights. More...

virtual void	applyNode (Renderer3D &renderer, KzuTransformedObjectNode &transformedNode)
	Renderer3D apply function for applying nodes. More...

Protected Member Functions inherited from kanzi::RenderPass
	RenderPass (Domain *domain, string_view name)
	Constructor. More...

virtual void	onLoaded ()
	Override function called by createLoadTask(), after loading render pass. More...

void	loadChildRenderPassesFromKZB (ResourceManager &resourceManager, KzbMemoryParser &parser)
	Load child render passes from a kzb file. More...

void	loadProperties (KzbMemoryParser &parser)
	Reimplementation of the loadProperties from parser to accommodate paths in properties. More...

kzsError	readProperties (struct KzcInputStream inputStream, const struct KzuBinaryFileInfo file, ResourceManager *resourceManager)
	Reimplementation of the property reading to accommodate paths in properties. More...

kzsError	readProperty (struct KzcInputStream inputStream, const struct KzuBinaryFileInfo file, ResourceManager *resourceManager)
	Reimplementation of reading a single property to accommodate paths in properties. More...

void	renderChildren (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
	Render all child render passes of a render pass. More...

CompositionRequirements	combineChildCompositionRequirements (CompositionRequirements requirements) const
	Iterates the children for composition requirements. More...

CompositionRequirements	getChildCompositionRequirements () const
	Iterates the children for composition requirements. More...

virtual TextureSharedPtr	getCompositionResultOverride (Framebuffer::AttachmentPoint attachmentPoint)
	Acquiring of composition target specific to the RenderPass class. More...

Protected Member Functions inherited from kanzi::Resource
virtual void	reloadOverride ()

virtual void	reloadFromKzbOverride (KzcInputStream inputStream, const KzuBinaryFileInfo file)

virtual void	reloadFromKzbOverride (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

virtual void	reloadFromFileOverride (string_view filePath)

virtual unsigned int	getCPUMemoryUsageOverride () const

Protected Member Functions inherited from kanzi::Object
void	initialize ()

void	onCopy (const Object &other)

Protected Member Functions inherited from kanzi::MetaObject
	MetaObject ()

void	initialize ()

Protected Member Functions inherited from kanzi::PropertyObject
void	addPropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, PropertyValuePrecedence precedence, void owner)

void	removePropertyValueSource (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::ValueSource valueSource, void owner)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	getTopValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getTopValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getFinalValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getNonClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSource *	getClassValueSource (AbstractPropertyTypeDescriptor &descriptor) const

AbstractPropertyTypeDescriptor::ValueSourceEntry *	findLocalValueSourceEntry (AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	constructLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ValueSourceEntry *	acquireLocalValueSourceEntry (AbstractPropertyTypeDescriptor &descriptor, PropertyStoragePtr &propertyStorage)

AbstractPropertyTypeDescriptor::PropertyStorage *	findPropertyStorage (AbstractPropertyTypeDescriptor &descriptor) const

PropertyStoragePtr	findPropertyStoragePtr (AbstractPropertyTypeDescriptor &descriptor) const
	Gets property storage intrusive pointer that can be used to hold a reference until end of operation. More...

PropertyStoragePtr	constructPropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

PropertyStoragePtr	acquirePropertyStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::ModifierStorage *	acquireModifierStorage (AbstractPropertyTypeDescriptor &descriptor, AbstractPropertyTypeDescriptor::PropertyStorage &propertyStorage)

AbstractPropertyTypeDescriptor::ModifierStorage *	findModifierStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	acquireNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor::NotificationStorage *	findNotificationStorage (AbstractPropertyTypeDescriptor &descriptor)

AbstractPropertyTypeDescriptor *	findPropertyTypeDescriptorByUnqualifiedNameAndDataType (string_view unqualifiedName, PropertyDataType dataType)

void	validatePropertyModifiersAndNotifyHandlers (PropertyStoragePtr &propertyStorage)

void	copyLocalValue (const AbstractPropertyTypeDescriptor::PropertyStorage &otherPropertyStorage)
	Copy local value from property storage. More...

PropertyStorageContainer::iterator	beginPropertyStorage ()

PropertyStorageContainer::iterator	endPropertyStorage ()

virtual void	notifyPropertyHandlers (PropertyStoragePtr &propertyStorage, PropertyNotificationReason reason)

void	onCopy (const PropertyObject &other)

Protected Attributes
FilterObjectSourceSharedPtr	m_renderableObjectSource
	Object source for light nodes. More...

FilterObjectSourceSharedPtr	m_lightObjectSource
	Object source for renderable objects. More...

FilterObjectSourceSharedPtr	m_frustumCullObjectSource
	Frustum cull object source to act as an intermediate object source if enabled. More...

Protected Attributes inherited from kanzi::Object
AppliedStyleContainer	m_appliedStyles
	Listing of applied styles applied to this object. More...

Properties
static PropertyType< string >	CameraProperty
	Use the Camera property to set the Camera node that you want to use to render the nodes. More...

static PropertyType< ResourceSharedPtr >	ObjectSourceProperty
	Use the Object Source property to set the object source which collects the nodes that you want to render with this render pass. More...

static PropertyType< bool >	FrustumCullingEnabledProperty
	FrustumCulling property. More...

string	getCamera () const
	Gets the value of the CameraProperty. More...

void	setCamera (string value)
	Sets the value of the CameraProperty. More...

ResourceSharedPtr	getObjectSource () const
	Gets the value of the ObjectSourceProperty. More...

void	setObjectSource (ResourceSharedPtr value)
	Sets the value of the ObjectSourceProperty. More...

bool	isFrustumCullingEnabled () const
	Gets the value of FrustumCullingEnabledProperty. More...

void	setFrustumCullingEnabled (bool value)
	Sets the value of FrustumCullingEnabledProperty. More...

Additional Inherited Members
Public Member Functions inherited from kanzi::RenderPass
RenderPassSharedPtr	lookupRenderPass (string_view path)
	Resolve a render pass by path. More...

void	render (Renderer3D &renderer, TransformedScene3D &transformedScene, CompositionStack &compositionStack)
	Recursively render RenderPass and all of its child render passes. More...

void	renderMesh (Node3D &node, Morph *morph, Mesh &mesh, unsigned int clusterIndex, MaterialRenderer &materialRenderer)
	Use this function to render a mesh owned by a node using the material renderer that the node owns. More...

void	addChild (RenderPassSharedPtr childRenderPass)
	Adds a render pass as the last child of the render pass you set. More...

void	insertChild (size_t index, RenderPassSharedPtr childRenderPass)
	Adds a render pass as a child render pass at given index of the render pass you set. More...

void	removeChild (RenderPass &childRenderPass)
	Removes a child render pass. More...

void	removeAllChildren ()
	Removes all child render passes from a render pass. More...

RenderPassSharedPtr	getParent () const
	Gets the parent of a render pass. More...

void	setParent (RenderPassSharedPtr parent)
	Sets the parent of a render pass. More...

RenderPassSharedPtr	getChild (size_t index)
	Gets a child render pass at the given index. More...

size_t	getChildCount () const
	Returns the number of child render passes. More...

ChildContainer::const_iterator	beginChildren () const
	Returns an iterator to the beginning of the container of child render passes. More...

ChildContainer::const_iterator	endChildren () const
	Returns an iterator to the end of the container of child render passes. More...

TextureSharedPtr	getCompositionResult (Framebuffer::AttachmentPoint attachmentPoint)
	Gets color composition target that was used for rendering. More...

size_t	getTextureBindingCount () const
	Gets the number of texture bindings. More...

ResourceBinding	getTextureBinding (size_t index) const
	Gets a texture binding by index. More...

void	addTextureBinding (AbstractPropertyType propertyType, string_view path, bool fromKzb)
	Adds a texture binding. More...

void	addTextureBinding (AbstractPropertyType propertyType, string_view path)
	Adds a texture binding. More...

bool	removeTextureBinding (AbstractPropertyType propertyType)
	Removes the texture binding. More...

void	removeKzbTextureBindings ()
	Removes the resource bindings loaded from kzb files. More...

virtual CompositionRequirements	getCompositionRequirements () const
	Queries if a render pass requires a depth buffer. More...

void	restoreResourcesRecursive ()
	Recursively calls restoreResources for a RenderPass and all its children. More...

virtual void	restoreResources ()
	Restore resources after suspend. More...

virtual void	loadFromKZB (const ResourceLoaderThreadContext threadContext, KzcInputStream inputStream, const KzuBinaryFileInfo *file) KZ_OVERRIDE
	Resource::loadFromKZB() implementation. More...

Public Member Functions inherited from kanzi::Resource
KzcMemoryManager *	getMemoryManager () const

	Resource (Domain *domain, string_view name)

virtual	~Resource ()

virtual void	unloadOverride ()
	Unload function for resource. Releases all CPU memory taken by the resource except the resource loader. More...

virtual unsigned int	getCPUMemoryUsage () const
	Function for getting the memory usage of a resource. More...

void	setKZB (const KzuBinaryDirectory *binaryDirectory, string_view path)
	Set the binary directory and path of the resource. More...

const string &	getName () const
	Gets the resource name. More...

const string &	getUrl () const
	Gets the resource URL. More...

void	setUrl (string_view url)
	Sets the resource URL. More...

void	setNotLoaded ()

bool	isFromKZB () const

void	reload ()

void	reloadFromKzb (KzcInputStream inputStream, const KzuBinaryFileInfo file)

void	reloadFromKzb (KzbFile &kzbFile, ReadOnlyMemoryFile &file, KzbMemoryParser &parser)

void	reloadFromFile (string_view filePath)

void	load ()

void	unload ()

bool	isLoaded () const

void	kzuResourceLoad_private (const ResourceLoaderThreadContext *threadContext)
	Private function for kzuResourceLoad() with specified thread context. More...

void	kzuResourceFinishLoading_private (const ResourceLoaderThreadContext *threadContext)
	Private function for finishing the loading of the resource. More...

bool	isKeepAlive () const
	Tells if the resource has keep alive flag set. More...

void	setKeepAlive (bool keepAlive)
	Sets the keep alive flag. More...

Public Member Functions inherited from kanzi::Object
	Object (Domain *domain)

virtual	~Object ()

Domain *	getDomain () const
	Returns the domain the object belongs to. More...

KzuTaskScheduler *	getTaskScheduler () const
	Returns the task scheduler of the object. More...

KzuMessageDispatcher *	getMessageDispatcher () const
	Returns the message dispatcher of the object. More...

ResourceManager *	getResourceManager () const
	Returns the resource manager of the object. More...

virtual const Metaclass *	getDynamicMetaclass () const KZ_OVERRIDE
	Returns the metaclass of the dynamic type of the object. More...

AppliedStyleEntrySharedPtr	applyObjectStyle (kanzi::StyleSharedPtr style)
	Applies a style to an object. More...

void	unapplyObjectStyle (AppliedStyleEntrySharedPtr appliedStyleEntry)

void	applyObjectStyles ()
	Apply all styles for an object node. More...

void	unapplyObjectStyles ()
	Unapplies and removes all applied styles. More...

Public Member Functions inherited from kanzi::MetaObject
virtual	~MetaObject ()

bool	isTypeOf (const Metaclass *objectType) const
	Determines if the type of this object is the given type or derived from it. More...

Public Member Functions inherited from kanzi::PropertyObject
	PropertyObject ()

virtual	~PropertyObject ()

template<typename DataType >
void	setProperty (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Traits::ParameterType value)
	Sets the local value of a property. More...

void	removeKzbProperties ()

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getProperty (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property. More...

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalProperty (const PropertyType< DataType > &propertyType) const
	Evaluates the property value in the same way as the overload above but does not default to the value in property metadata if there are no inputs to the property value. More...

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getPropertyBase (const PropertyType< DataType > &propertyType) const
	Returns the current value of a property disregarding modifiers. More...

template<typename DataType >
void	setAbstractProperty (AbstractPropertyType abstractPropertyType, typename PropertyType< DataType >::Traits::ParameterType value)

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractProperty (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
PropertyType< DataType >::Traits::ReturnType	getAbstractPropertyBase (AbstractPropertyType abstractPropertyType) const

template<typename DataType >
optional< typename PropertyType< DataType >::Traits::ReturnType >	getOptionalAbstractProperty (AbstractPropertyType abstractPropertyType) const

void	setPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	isPropertyFlagSet (AbstractPropertyType propertyType, uint32_t flag) const

void	clearPropertyFlag (AbstractPropertyType propertyType, uint32_t flag)

bool	hasValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value. More...

bool	hasBaseValue (AbstractPropertyType propertyType) const
	Evaluates whether there are any inputs into the property value, disregarding modifiers. More...

bool	hasLocalValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a local value set for the property. More...

bool	hasNonClassValue (AbstractPropertyType propertyType) const
	Evaluates whether there is a value of any precedence higher than class default value set for the property. More...

void	removeLocalValue (AbstractPropertyType propertyType)
	Removes the local value associated with the property. More...

void	copyLocalValue (const PropertyObject &other, AbstractPropertyType propertyType)
	Copies local value of single property from another object. More...

void	copyLocalValues (const PropertyObject &other)
	Copies all local values from another object. More...

virtual void	onPropertyChanged (AbstractPropertyType propertyType, PropertyNotificationReason reason)
	Virtual function to handle property change notifications. More...

template<typename DataType >
void	addPropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, PropertyValuePrecedence precedence, void owner)

template<typename DataType >
void	removePropertyValueSource (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::TypedValueSource valueSource, void owner)

template<typename DataType >
void	addPropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

template<typename DataType >
void	removePropertyModifier (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::ModifierCallback callback, void *owner)

void	validatePropertyModifiers (AbstractPropertyType propertyType)

template<typename DataType >
void	addPropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
void	removePropertyNotificationHandler (const PropertyType< DataType > &propertyType, typename PropertyType< DataType >::Descriptor::NotificationCallback callback, void *owner)

template<typename DataType >
size_t	getPropertyNotificationHandlerCount (const PropertyType< DataType > &propertyType)
	Gets number of current notification handlers for given property type. More...

Protected Types inherited from kanzi::Object
typedef vector< AppliedStyleEntrySharedPtr >	AppliedStyleContainer
	Applied style container. More...

Detailed Description

Use the Draw Objects Render Pass to render only nodes in a Scene node provided by an object source you set in this render pass.

The Draw Objects Render Pass renders objects from the object source you set in the ObjectSourceProperty property with the Camera node that the Scene node uses. The Camera node that a Draw Objects Render Pass uses must be in the same Scene node as the objects that the Draw Objects Render Pass renders.

Internally, to render content, a Draw Objects Render Pass creates object type filters for light nodes and renderable objects that both set the assigned object source as their source. Before it iterates renderable objects, the render pass iterates the light filter to set up the light state.

Examples

To render only objects that have the StandardMaterial::BlendIntensityProperty property:

        // Create a Contains Property Filter to collect all node that have the Blend Intensity property.
        KzuObjectSource* containsPropertyFilter;
        kzuContainsPropertyFilterCreate(domain, "Contains Property Filter", &containsPropertyFilter);
        kzuContainsPropertyFilterSetPropertyType(containsPropertyFilter, AbstractPropertyType("BlendIntensity"));
        // In a Draw Objects Render Pass set the Object Source property to the filter you created.
        drawObjectsRenderPass->setObjectSource(ObjectSourceSharedPtr(containsPropertyFilter));

To set which Camera node you want to use to render the objects, use the CameraProperty:

        // Create a Camera node and add it to the Scene node.
        CameraSharedPtr cameraNode = Camera::create(domain, "Alternative Camera");
        scene->addChild(cameraNode);
        // Set the Draw Objects Render Pass to render the nodes using the Camera node you created.
        // Use the path to the Camera node from the root of the Scene node.
        drawObjectsRenderPass->setCamera("Alternative Camera");

Member Typedef Documentation

typedef function<void(Renderer3D&, DrawObjectsRenderPass&, KzuTransformedObjectNode&)> kanzi::DrawObjectsRenderPass::ApplyNodeFunction

Function object type for applying specific type of nodes for rendering.

Constructor & Destructor Documentation

kanzi::DrawObjectsRenderPass::DrawObjectsRenderPass	(	Domain *	domain,
		string_view	name
	)

explicitprotected

Constructor.

Parameters

domain	The domain to use.
name	The name of the Draw Objects Render Pass.

Member Function Documentation

string kanzi::DrawObjectsRenderPass::getCamera ( ) const

inline

Gets the value of the CameraProperty.

See also: setCamera()

void kanzi::DrawObjectsRenderPass::setCamera ( string value )

inline

Sets the value of the CameraProperty.

See also: getCamera()

ResourceSharedPtr kanzi::DrawObjectsRenderPass::getObjectSource ( ) const

inline

Gets the value of the ObjectSourceProperty.

See also: setObjectSource()

void kanzi::DrawObjectsRenderPass::setObjectSource ( ResourceSharedPtr value )

inline

Sets the value of the ObjectSourceProperty.

See also: getObjectSource()

bool kanzi::DrawObjectsRenderPass::isFrustumCullingEnabled ( ) const

inline

Gets the value of FrustumCullingEnabledProperty.

Returns: Property value.

void kanzi::DrawObjectsRenderPass::setFrustumCullingEnabled ( bool value )

inline

Sets the value of FrustumCullingEnabledProperty.

Parameters

value Property value.

static PropertyTypeEditorInfoSharedPtr kanzi::DrawObjectsRenderPass::makeEditorInfo ( )

static

static DrawObjectsRenderPassSharedPtr kanzi::DrawObjectsRenderPass::create	(	Domain *	domain,
		string_view	name
	)

static

Create a Draw Objects Render Pass.

Parameters

domain	The domain to use.
name	The name of the Draw Objects Render Pass.

Returns: The created Draw Objects Render Pass.

tuple<Camera*, KzuTransformedObjectNode*> kanzi::DrawObjectsRenderPass::acquireTransformedCamera ( TransformedScene3D & transformedScene ) const

protected

Acquire transformed Camera node to use for rendering.

Parameters

transformedScene The transformed Scene to be rendered.

Returns: Tuple of the Camera node and the transformed Camera node.

virtual void kanzi::DrawObjectsRenderPass::renderOverride	(	Renderer3D &	renderer,
		TransformedScene3D &	transformedScene,
		CompositionStack &	compositionStack
	)

protectedvirtual

RenderPass::renderOverride() implementation.

Reimplemented from kanzi::RenderPass.

Reimplemented in kanzi::DrawObjectsWithMaterialRenderPass.

virtual void kanzi::DrawObjectsRenderPass::renderMeshOverride	(	Node3D &	node,
		Morph *	morph,
		Mesh &	mesh,
		unsigned int	clusterIndex,
		MaterialRenderer &	materialRenderer
	)

protectedvirtual

RenderPass::renderMeshOverride() implementation.

Reimplemented from kanzi::RenderPass.

Reimplemented in kanzi::DrawObjectsWithMaterialRenderPass.

virtual Matrix4x4 kanzi::DrawObjectsRenderPass::applyCamera	(	Renderer3D &	renderer,
		Camera &	cameraNode,
		KzuTransformedObjectNode &	transformedCamera,
		Vector2	viewportSize
	)

protectedvirtual

Apply a Camera node projection using the current Viewport 2D node.

Parameters

renderer	The renderer to use.
cameraNode	The base Camera node.
transformedCamera	The transformed Camera node.
viewportSize	The current size of the Viewport 2D node.

Returns: The projection matrix used.

virtual void kanzi::DrawObjectsRenderPass::applyObjectSource	(	Renderer3D &	renderer,
		KzuObjectSource &	objectSource,
		TransformedScene3D &	transformedScene,
		KzuTransformedObjectNode &	transformedCamera,
		ApplyNodeFunction	applyFunction
	)

protectedvirtual

Apply all objects from a given object source.

Parameters

renderer	The renderer to use.
objectSource	The object source to apply.
transformedScene	The transformed Scene node to be rendered.
transformedCamera	The transformed Camera node to use.
applyFunction	The apply function to use for applying the objects from the object source.

virtual void kanzi::DrawObjectsRenderPass::applyLight	(	Renderer3D &	renderer,
		KzuTransformedObjectNode &	transformedNode
	)

protectedvirtual

Renderer3D apply function for applying lights.

Parameters

renderer	The renderer to use.
transformedNode	Transformed node to apply.

virtual void kanzi::DrawObjectsRenderPass::applyNode	(	Renderer3D &	renderer,
		KzuTransformedObjectNode &	transformedNode
	)

protectedvirtual

Renderer3D apply function for applying nodes.

Parameters

renderer	The renderer to use.
transformedNode	Transformed node to apply.

Member Data Documentation

PropertyType<string> kanzi::DrawObjectsRenderPass::CameraProperty

static

Use the Camera property to set the Camera node that you want to use to render the nodes.

The Camera node that a Draw Objects Render Pass uses must be in the same Scene node as the nodes that the Draw Objects Render Pass renders. The default value is "", which means that the Draw Objects Render Pass uses the default Camera node in that Scene node.

See also: setCamera(), getCamera()

PropertyType<ResourceSharedPtr> kanzi::DrawObjectsRenderPass::ObjectSourceProperty

static

Use the Object Source property to set the object source which collects the nodes that you want to render with this render pass.

The default value is ResourceSharedPtr(), which means that the Draw Objects Render Pass uses the Root Object Source which includes all nodes in a Scene node.

See also: setObjectSource(), getObjectSource()

PropertyType<bool> kanzi::DrawObjectsRenderPass::FrustumCullingEnabledProperty

static

FrustumCulling property.

FilterObjectSourceSharedPtr kanzi::DrawObjectsRenderPass::m_renderableObjectSource

protected

Object source for light nodes.

FilterObjectSourceSharedPtr kanzi::DrawObjectsRenderPass::m_lightObjectSource

protected

Object source for renderable objects.

FilterObjectSourceSharedPtr kanzi::DrawObjectsRenderPass::m_frustumCullObjectSource

protected

Frustum cull object source to act as an intermediate object source if enabled.

The documentation for this class was generated from the following file:

kanzi/core.ui/graphics3d/draw_objects_render_pass.hpp

Classes

Public Types

Static Public Member Functions

Protected Member Functions

Protected Attributes

Properties

Additional Inherited Members

Detailed Description

Examples

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
