Controlling the Preview

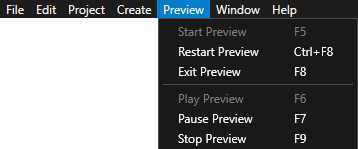

When Kanzi Studio loads a project, it shows in the Preview your project as if it was run as an application on a target device. You can control the Preview from the Project menu or use the shortcut keys.

../../_images/preview-menu-preview-controls.png

Shortcut key

Description

F5

Start the Preview in paused mode.

F6

Start playing the Preview.

F7

Pause the Preview.

F8

Exit the Preview.

F9

Stop the Preview.

Ctrl F5

Start the Preview in play mode.

This is the default Preview setting when you open a Kanzi Studio project. To change this setting, go to Edit > User Preferences > Advanced > Preview.

Ctrl F8

Restart the Preview.

Controlling keyboard input in the Preview

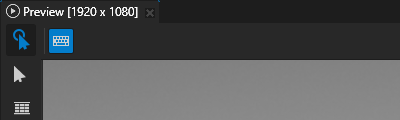

To control how the Preview handles keyboard input, when the Preview has focus and is in the Interact mode interact-mode, in the Preview click keyboard-input.

For example, to set the Preview to pass to a Text Box node keyboard input also from the keys and key combinations that are reserved as Kanzi Studio shortcuts, enable the Keyboard Input mode.

../../_images/keyboard-input-enabled.png

Setting the font engine for the Preview

Kanzi supports two font rendering backends:

  • FreeType is an open-source based font engine included with Kanzi. It is suitable for most general use cases and supports a wide range of font formats. It uses the FreeType rasterizer, HarfBuzz shaper, ICU bidirectional library, and libunibreak for line breaking. This is the default font engine.

  • iType is a commercial software based font engine that requires a separate license from Monotype. It offers advanced font rendering features and optimizations. It uses the Monotype iType rasterizer and WorldType® Shaper™ for shaping. See Installing the iType font engine.

To set the font engine for the Preview:

  1. In the main menu select Project > Properties.

    ../../_images/project-properties.png

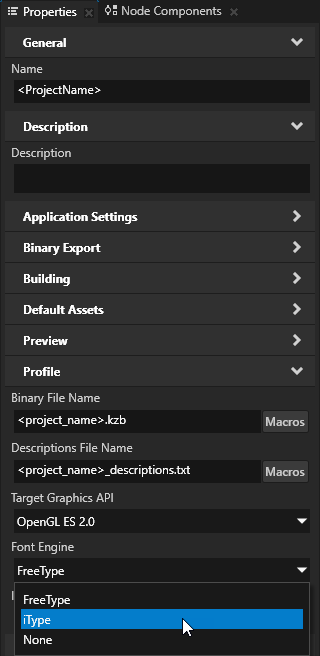

  2. In the Properties, under Profile, set the Font Engine property to:

    • FreeType to use the FreeType font engine.

    • iType to use the iType font engine.

    • None to not load a font engine. When you do not load a font engine, Kanzi does not render the text in your application.

    ../../_images/font-engine.png

To learn how to set which font engine to load at application startup, see FontEngine.

Note

iType and FreeType font engines use different rendering and shaping algorithms. As a result, some differences in text rendering and layout can be expected. In certain cases, these font engines may also interpret different parts of the font file.

If you switch from one Font Engine to the other, updating or adjusting the font file itself may be needed to minimize or eliminate these differences.

Installing the iType font engine

Submit the request for the Kanzi iType font engine through support.rightware.com.

To install the iType font engine for Kanzi Studio:

  1. Extract the zip file that contains the iType font engine Kanzi Engine plugin.

  2. Copy the dll file for each build configuration to the <KanziInstallation>/Studio/Bin/EnginePlugins directory.

    For example, copy the GL_vs<Version>_Release/kzitypeplugin.dll to the <KanziInstallation>/Studio/Bin/EnginePlugins/GL_vs<Version>_Release directory.

Setting the OpenGL ES wrapper for the Preview

You can set how Kanzi handles OpenGL ES content on the Windows platform, which does not support OpenGL ES. OpenGL ES differs from regular OpenGL in features such as depth mipmaps, color formats, texture compression, and shader language.

To set the OpenGL ES wrapper for the Preview:

  1. In the main menu select Project > Properties.

    ../../_images/project-properties.png

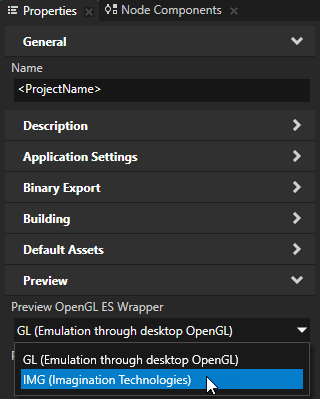

  2. In the Properties set the Preview OpenGL ES Wrapper property:

    • GL (Emulation through desktop OpenGL) calls OpenGL directly. This is the default setting.

    • IMG (Imagination Technologies) uses a wrapper provided by Imagination Technologies to emulate OpenGL ES behavior on a system with desktop OpenGL.

      You can set this as the default value for all your Kanzi Studio projects in the Edit > User Preferences > Advanced, by setting Default Preview OpenGL ES Wrapper to IMG (Imagination Technologies).

      Note

      The IMG (Imagination Technologies) wrapper is not stable enough to be used for development. Use it only to test how the graphics in your application render when using OpenGL ES. For content development use the OpenGL.

    ../../_images/preview-opengl-es-wrapper.png

Setting the background color of the Preview

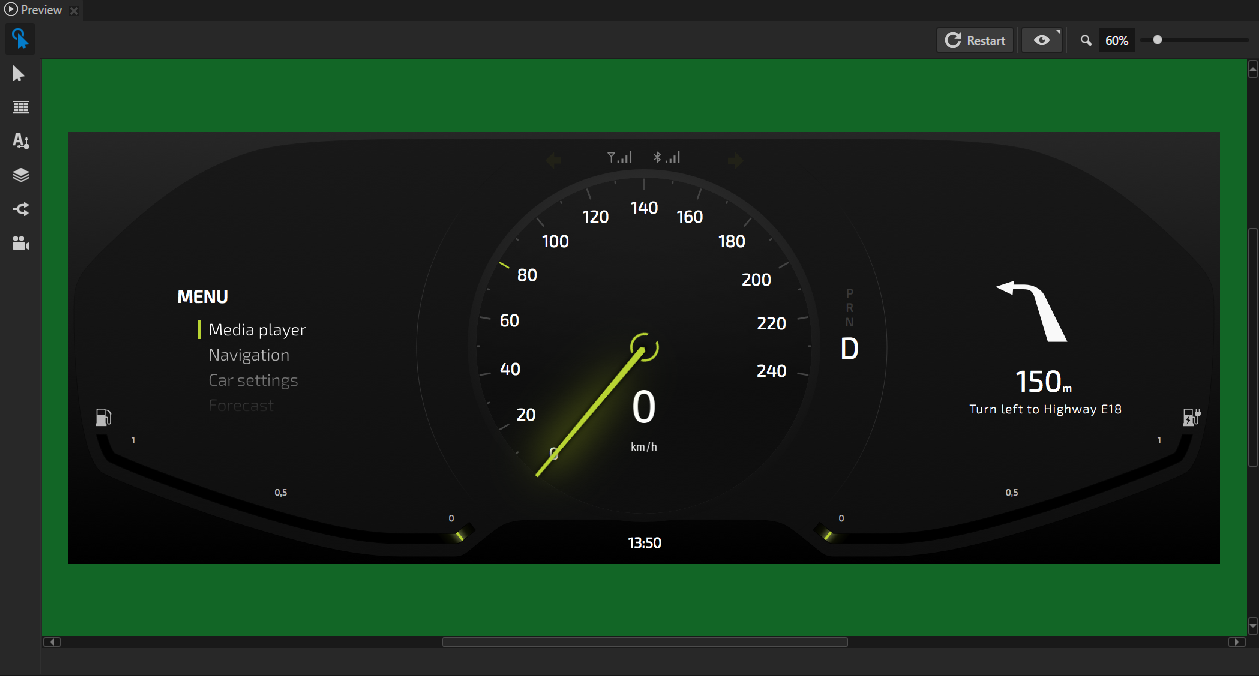

The background of the Preview is by default black. To make your content stand out from the background when the Preview is in the Interact mode interact-mode, you can set the background color:

  • For all your Kanzi Studio projects.

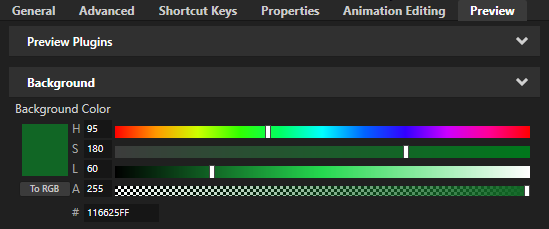

    In the main menu, select Edit > User Preferences. In the Preview tab, set the Background Color property to the desired color.

    ../../_images/edit-user-preferences.png ../../_images/preview-background-color.png

  • For a specific Kanzi Studio project.

    In the main menu, select Project > Properties. In the Properties > Preview property category, add and set the Preview Background Color property to the desired color.

    When you do not set this property, the project uses the color that you set in the User Preferences.

    ../../_images/project-properties.png ../../_images/properties-project-preview-background-color.png
../../_images/preview-with-background-color-set.png

Showing only the content of Page nodes and prefabs in the Preview

By default the Preview shows your entire Kanzi project as when it is run as an application on a target device. However, you can isolate parts of your application and view each as a separate item in the Preview. This means that you can work on the content of a Page node or a prefab without instantiating the prefab.

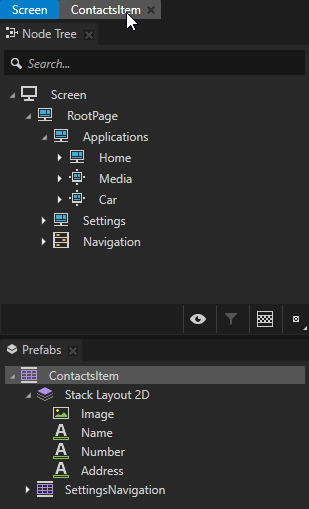

  • To show only the content of a prefab in the Preview, in the Prefabs double-click that prefab.

    Kanzi Studio opens the prefab in a new Preview tab and shows the content of that prefab in the Preview.

    ../../_images/prefab-composition-open.png

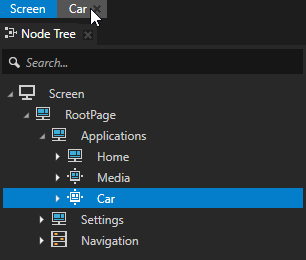

  • To show only the content of a Page node, in the Node Tree or Pages double-click that page. Kanzi Studio opens the Page node in a new tab and shows the content of that Page node in the Preview.

    ../../_images/page-composition-open.png

When you isolate a Page node or a prefab in the Preview you can control that part of your application in the Preview with the timeline controls you can find in the bottom of Kanzi Studio. To show the timeline, in the Kanzi Studio main menu select Window > Toolbar > Timeline.

../../_images/timeline.svg

The Preview shows the Page node or a prefab in your application either in playing or paused mode:

  • In playing mode the Page node or a prefab functions just as it would as a standalone application: user interface components are interactive and animations are playing.

  • In paused mode the animations stop, but the user interface components remain active. If components execute animations, these are not played until you enter the playing mode.

When the Preview is in paused mode, you can set the application time in the timeline bar.

You can use these playback modes in the Preview.

Playback mode

Description


In the continuous play mode the Preview starts playing at start time you set in the timeline bar, but does not have a set end time.


In the play range mode the Preview plays in a loop the range between the start and end times you set in the timeline bar.


In the play range and stop mode the Preview plays once the range between the start and end times you set in the timeline bar.
