Advanced Drive Mode Template

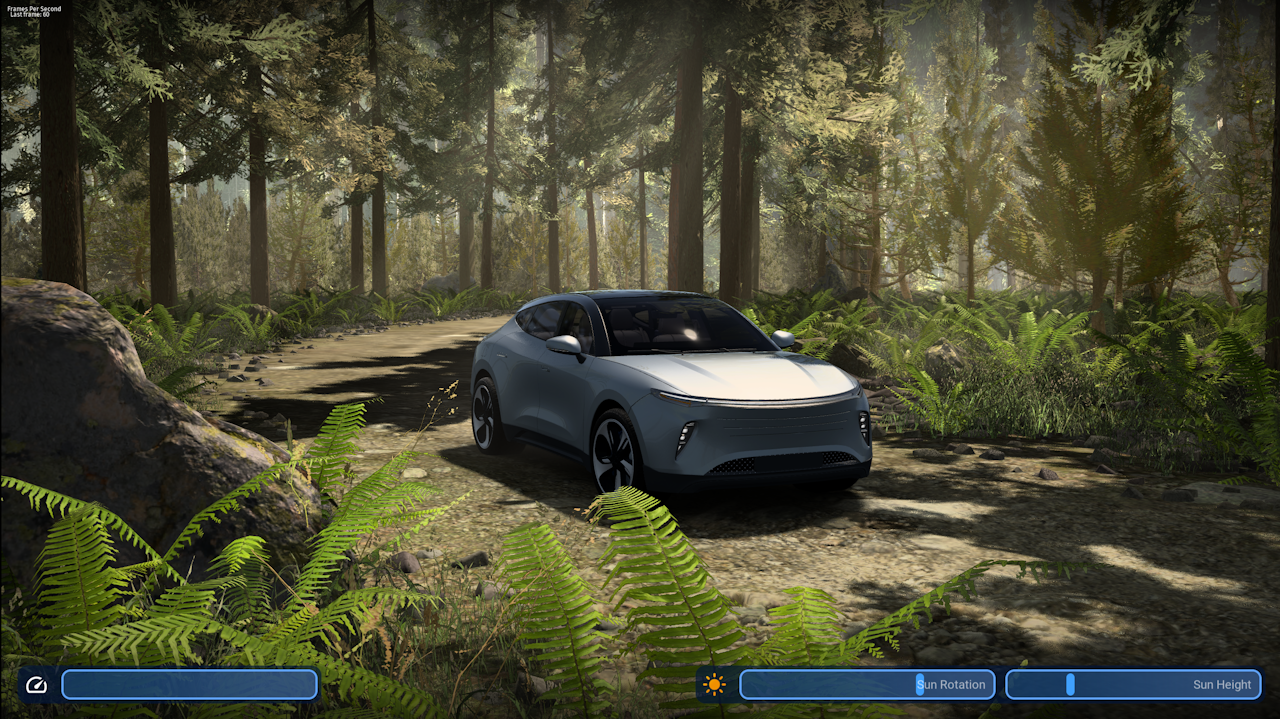

Advanced Drive Mode template is a Kanzi project template that demonstrates automotive 3D visualization with GPU-instanced vegetation, wind simulation, and advanced rendering in a full outdoor car showcase scene.

../_images/adm-overview.png

The template ships with an InstancedMesh Kanzi Engine plugin that enables efficient rendering of hundreds of foliage and rock instances. This template is available from Kanzi Studio 4.1.0.

3D vehicle visualization

The template provides a detailed, modular 3D car with independently animatable parts:

  • Four doors, each with glass, mirror, and interior geometry

  • Hood and trunk

  • Four wheels with disc and caliper geometry

  • Front and rear light groups: headlights, daytime running lights (DRLs), fog lights, turn signals, brake lights, and reverse lights

  • Charge ports that indicate an electric vehicle

  • Interior cabin with an instrument cluster display screen

A CubemapCamera inside the CarContainer node captures the environment at runtime and provides the reflection texture used by PBR materials on the car body.

Environmental scene

The 3D world surrounds the car with a full outdoor environment:

  • A procedural sky dome driven by a shader (ProceduralSky)

  • A directional sun light with a shadow camera and a spot light

  • God rays rendered with a mesh and a shader (FlareBlitStreaks)

  • Distance fog applied with a shader on separate near and far fog meshes (DistanceFog_BG)

  • A road mesh and a background forest (Ground_Grass, Ground_Road and Forest_BG)

The DATA node manages the animation cycle and sun position. The UI provides multiple sliders controlling its values. The speed slider drives the Animation Speed of the scene and the sun sliders the Sun Rotation and Sun Height.

Vegetation with wind simulation

GPU-instanced foliage uses the InstancedMesh plugin to render pine trees, ferns, grass, and rocks with up to four levels of detail (LODs) per asset. A WindSimulation node drives a WindGustsAnimation that updates certain instances through the Render Pass.

The wind and LOD system keeps frame time low even when hundreds of instances are visible.

Advanced rendering

Two main features of this template are the dynamically generated Cubemap and the dynamic ShadowMap.

The Render Pass (Compose and Blit Pass) generates a cubemap of the environment on runtime and applies it to the car. Another Pass generates a ShadowMap and applies it to the scene.

The template uses physically based rendering (PBR) throughout:

  • Multiple Physically Based shaders for rendering the car and environment

  • Multiple Physically Based shaders for rendering instanced meshes (specifically configured to function with the instancing feature)

Post-processing effects include bloom applied with a high-pass blit pass (BloomHighpassBlit shader) and lens flare streaks (FlareBlitStreaks).

Shadow mapping

The directional light (Sun) contains a ShadowCamera child node. Four shadow passes cover instanced opaque geometry, wind-affected instanced geometry, and cutout foliage.

The ShadowPivot node exposes these properties:

  • Directional Shadow Bias: controls the shadow bias to reduce self-shadowing artifacts

  • Directional Shadow Softness: controls the softness of shadow edges

The ShadowCamera node exposes these properties:

  • Z Near and Z Far: define the depth range of the shadow camera frustum

  • Orthogonal Plane Size: sets the size of the orthographic projection for shadow map generation

Render pipeline

The Compose and Blit Pass render pass prefab drives the pipeline in this order:

  • WindBuffer: generates the wind texture which can be used to modify wind-affected geometry before scene rendering

  • DrawShadowmaps: generates the directional shadow map for the scene and instanced vegetation

  • Cubemap Render Pass: captures the surrounding environment into a runtime cubemap

  • Image-Based Lighting Filter Pass: pre-filters the cubemap into ambient and specular reflection textures for the PBR materials on the car

  • MainPass: renders the full scene, drawing sky, opaque geometry, emissive surfaces, instanced vegetation, and transparent surfaces

  • FakeVolume: renders atmospheric overlay effects such as god rays and lens flare

  • FinalOutput: composites the scene and overlay passes with a vignette blit to screen

  • Debug: additional passes for debug purposes are available but deactivated by default

Object source buckets separate geometry by rendering requirements: Car, CubeCapture, Emissive, Grass, Opaque, Opaque_NoSky, Overlay, Rocks, Shadow_Instanced_Opaque, Shadow_Wind_Instanced_Cutout, Shadow_Wind_Instanced_Cutout_Grass, Shadow_Wind_Instanced_Opaque, Sky, SortEmissives, Transparent, Trees, Trees_Cubemap, and Wind.

Interactive UI controls

A 2D HUD overlaid on the 3D viewport provides:

  • Speed Controls: controls the speed of the animation cycle of the scene (Car Speed)

  • Sun Controls: controls the sun position through rotation and height

CameraScroll enables orbit camera interaction so users can rotate around the car.

InstancedMesh plugin

The template includes the precompiled InstancedMesh Kanzi Engine plugin (InstancedMesh.dll). The plugin extends Kanzi Engine to render large numbers of identical mesh instances in a single draw call using GPU instancing.

The template package includes the plugin for Windows and Android.
