Editing shaders

In Kanzi Studio projects, shader programs are stored as files on the computer hard drive. When you add shaders to the <KanziWorkspace>/Projects/<ProjectName>/Shaders directory of your Kanzi Studio project, Kanzi Studio automatically shows them in the Library > Resource Files > Shaders.

Access to the shader files is useful when you want to change all the stock material types from fragment-based to vertex-based shaders, or the other way around. If the filenames are the same, to do this, replace the shader files with the correct versions on the file system.

To start creating your own shaders, you can use as a starting point a suitable material type from the Kanzi material library and modify the shader and material properties. See Using material types.

To build shaders visually instead of writing code, see Shader graphs.

Kanzi Studio Shader Source Editor

You can use the Kanzi Studio Shader Source Editor to edit the shader source code. When working with the Kanzi Studio Shader Source Editor keep in mind that:

• The editor saves the changes to disk, which means that when you close a project without saving the changes, the changes saved in shader files persist on the hard disk.

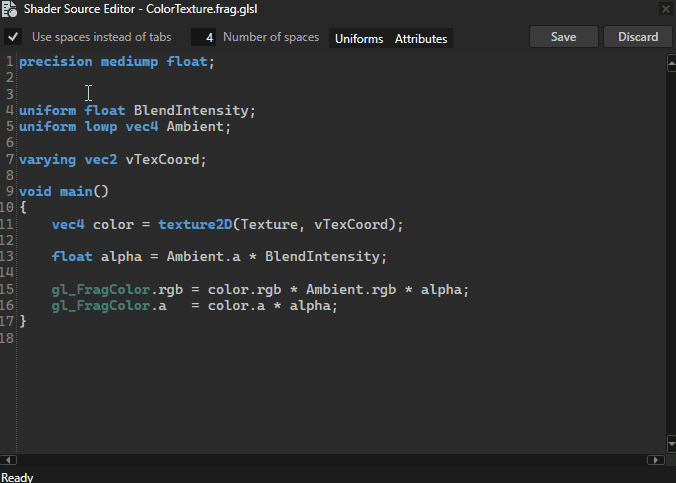

• To show code completion options in the Kanzi Studio code editor, press Ctrl Space.

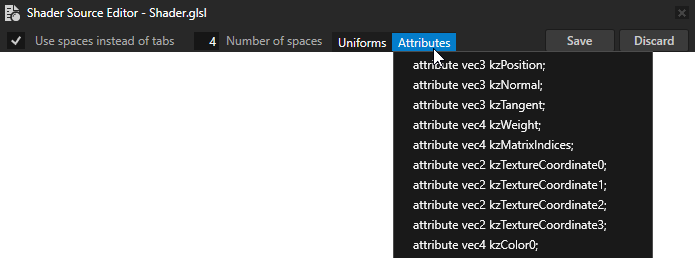

• When editing shaders in the Kanzi Studio Shader Source Editor use the Uniforms and Attributes buttons to quickly add code snippets for declaring uniforms and attributes at the current cursor position.



• The status bar shows messages about the status of the editor, such as when the code is saved.

• When you save a shader file, Kanzi Studio compiles it automatically. If you encounter a compiling error, you can see the error in the Log. In the Preview the objects containing materials with invalid shaders are shown in red.

Shader attributes

The input for shader programs are vertex attributes and uniforms. The attributes can vary per vertex and are provided to vertex shaders. You can use the uniforms as input to either vertex or fragment shaders.

The vertex buffer of a mesh contains also a set of attributes. These vertex buffer attributes are used for sending data to vertex shaders.

Kanzi can automatically pass attributes to shader programs, but you can configure these settings manually too.

Vertex attributes always have one of these semantics and Kanzi automatically recognizes these names:

Attribute	Data type	Description
kzPosition	vec3	Position
kzNormal	vec3	Normal
kzTangent	vec3	Tangent
kzWeight	vec4	Weight
kzMatrixIndices	vec4	Matrix palette
kzTextureCoordinate0	vec2	Texture coordinate 0
kzTextureCoordinate1	vec2	Texture coordinate 1
kzTextureCoordinate2	vec2	Texture coordinate 2
kzTextureCoordinate3	vec2	Texture coordinate 3
kzColor0	vec4	Color 0
kzColor1	vec4	Color 1
kzColor2	vec4	Color 2
kzColor3	vec4	Color 3
kzMorphTargetXPosition	vec3	Morph target position X, where X is 0…8
kzMorphTargetXNormal	vec3	Morph target normal X, where X is 0…8
kzMorphTargetXTangent	vec3	Morph target tangent X, where X is 0…8

You can also add custom attributes.

If there is a one-to-one relation between shader attributes and vertex attributes, the attributes are automatically mapped against each other. You can configure the mappings manually to work differently in mesh data. You must use manual mappings if you are using shader attribute names that are not in the default list.

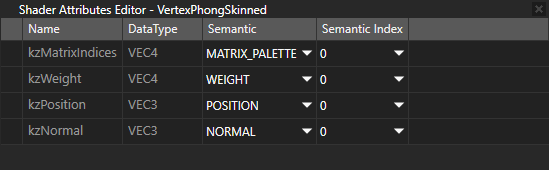

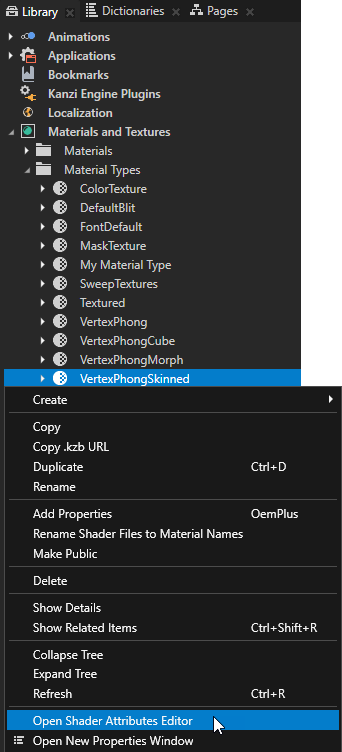

To view and edit the semantics of the shader attributes of a material type, in the Library > Materials and Textures > Material Types right-click a material type and select Open Shader Attributes Editor.

Shader uniforms

Shader uniforms can receive their data from these data sources:

• Kanzi default uniforms

• Property types defined in a material type.

If the name of the uniform matches any of the Kanzi default uniforms, Kanzi Engine automatically sends its value to the shader program. These uniforms are available by default:

Uniform	Data type	Description
ContentTexture	sampler2D	A texture provided by the rendered node when rendering, for example the image displayed in an Image node. See Applying custom rendering to 2D nodes and Applying custom rendering to an Image node.
RenderOpacity	float	Opacity of the rendered 2D node. See Applying custom rendering to 2D nodes and Applying custom rendering to an Image node.
kzWorldMatrix	mat4	A matrix that transforms a point or matrix from local space to world space.
kzCameraMatrix	mat4	A matrix that transforms a point or matrix from world space to view (camera) space.
kzCameraWorldMatrix	mat4	A matrix that transforms a point or matrix from local space to view (camera) space. This is the premultiplied matrix kzCameraMatrix * kzWorldMatrix.
kzProjectionCameraWorldMatrix	mat4	A matrix that transforms a point or matrix from local space to screen space. This is the premultiplied matrix kzProjectionMatrix * kzCameraMatrix * kzWorldMatrix.
kzPreviousProjectionCameraWorldMatrix	mat4	The projection * camera * world matrix from the previous frame. Use this uniform to calculate per-pixel screen-space velocity for effects such as motion blur and temporal anti-aliasing (TAA). The velocity is computed in the vertex shader as the difference between the current and previous clip-space positions: vec4 pos = kzProjectionCameraWorldMatrix * vec4(position, 1.0); vec4 prevPos = kzPreviousProjectionCameraWorldMatrix * vec4(position, 1.0); velocity = ((pos.xy / pos.w) - (prevPos.xy / prevPos.w)) * 0.5;

To enable velocity buffer output for a material, set KANZI_SHADER_OUTPUT_VELOCITY to 1 in the preprocessor definitions for the PBR material. Then set the value of KANZI_SHADER_OUTPUT_VELOCITY_INDEX to the semantic index of the texture coordinate that you want to use. Alternatively, use the Smart PBR material type, which enables the preprocessor definition automatically when the Prism Graph requires it.

• • kzProjectionCameraMatrix

  • mat4

  • A matrix that transforms a point or matrix from world space to screen space.

    This is the premultiplied matrix kzProjectionMatrix * kzCameraMatrix.

• • kzProjectionMatrix

  • mat4

  • A matrix that transforms a point or matrix from view (camera) space to screen space.

• • kzNormalMatrix

  • mat4

  • A matrix that transforms object normals from local space to world space.

• • kzCameraNormalMatrix

  • mat4

  • A matrix that transforms object normals from local space to view (camera) space.

    This is the premultiplied matrix kzCameraMatrix * kzNormalMatrix.

• • kzCameraPosition

  • vec3

  • A camera location in world space.

• • kzViewPosition

  • vec4

  • A homogeneous position for calculating the view direction: positionWorld.xyz * kzViewPosition.w - kzViewPosition.xyz.

• • kzTime

  • float

  • Debug timer, 1.0f = 1000 milliseconds.

• • kzTexture

  • sampler2D

  • A texture to apply to a brush or material.

• • kzTextureSize0

  • vec2

  • The size of the form (width, height) of the first texture in a shader.

• • kzTextureSize1

  • vec2

  • The size of the form (width, height) of the second texture in a shader.

• • kzTextureSize2

  • vec2

  • The size of the form (width, height) of the third texture in a shader.

• • kzTextureSize3

  • vec2

  • The size of the form (width, height) of the fourth texture in a shader.

• • kzMatrixPalette

  • vec4

  • An array of 4x3 matrices that Kanzi uses in vertex skinning. Each matrix is of the form:

    [ m00 m01 m02 translate_x]

    [ m10 m11 m12 translate_y]

    [ m20 m21 m22 translate_z]

• • kzCameraNearFarPlane

  • vec2

  • The near and far plane distances from camera.

• • kzMorphWeights[8]

  • float

  • An array of mesh weights that Kanzi uses in morphing.

• • kzViewport

  • vec4

  • A vector of the form (x, y, width, height) that represents the viewport to which Kanzi currently renders:

    • x and y define the bottom-left corner of the viewport rectangle in pixels.

    • width and height define the width and height of the viewport.

    By default, kzViewport maps to the Screen node of the application:

    • x and y equal 0.

    • width and height equal the width and height of the screen.

    When Kanzi renders to a composition target or to a 3D scene that accompanies a sub-rectangle of a larger area, kzViewport represents that target area.

• • kzWindowSize

  • vec2

  • The size (width, height) of the Screen node of the application.

Material uniforms

If the name of the uniform matches any of the property types defined in the material type of the shader, the value is supplied using the properties. At runtime the values for the properties are collected from the rendered material and the lights that match the light properties defined in the material type with possible property overriding.

The names and data types of the uniforms must match the names and data types of the property types in a material type. Note that the display name of a property type can be different from its real name that is used in this context. See Property types. For example, if the material type has a color property type Diffuse, the shader code must have this definition:

uniform mediump vec4 Diffuse;

The letters and the case must match in the names. These are the compatible data types from property data type to shader uniform data type:

Property data type	Shader uniform data type
Float	float
Vector 2D	vec2
Vector 3D	vec3
Color	vec4
Vector 4D	vec4
Matrix 2D	mat2
Matrix 3D	mat3
Matrix 4D	mat4
Texture	sampler1D sampler2D sampler3D sampler1DShadow sampler2DShadow samplerCube samplerCubeShadow

Uniform arrays for light property types

Light property types support uniform arrays. This enables you to use multiple lights of the same type. For example, if one shader program uses two directional lights, you must add an array property type into that shader of the material type:

uniform mediump vec4 DirectionalLightColor[2];
uniform mediump vec3 DirectionalLightDirection[2];

These property types support uniform arrays:

• DirectionalLightColor

• DirectionalLightDirection

• PointLightColor

• PointLightAttenuation

• PointLightPosition

• PointLightRadius

• SpotLightColor

• SpotLightPosition

• SpotLightDirection

• SpotLightAttenuation

• SpotLightCutoffAngle

• SpotLightConeParameters

• SpotLightExponent

• SpotLightRadius

Setting the OpenGL ES version

In your shader source files, use the #version directive to declare the version of the OpenGL ES shading language that your shader code uses.

Kanzi requires GLSL ES 3.1 or later for embedded targets, and desktop GLSL 1.40 or later for desktop targets. Earlier versions such as #version 100 or #version 300 es are not accepted.

For example, to set your shader source file to use the minimum required version for embedded targets, add this as the first line of the file:

#version 310 es

For a material type, you can override the version that you declare in the shader source files of that material type.

To override the OpenGL ES version in a material type:

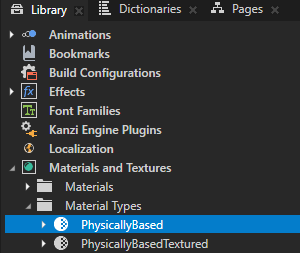

1. In the Library > Materials and Textures > Material Types, select the material type for which you want to set the OpenGL ES version.

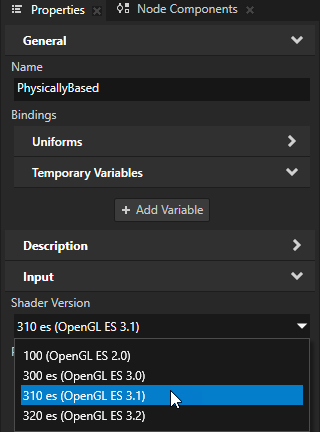

2. In the Properties, add the Input > Shader Version property and set it to the OpenGL ES version that you want the material type to use.



Reusing shader code

You can reuse shader code by placing into separate shaders the functionality that you want to use in more than one shader. For example, that way you can include in a shader helper functions that you use in several shaders.

To reuse shader code:

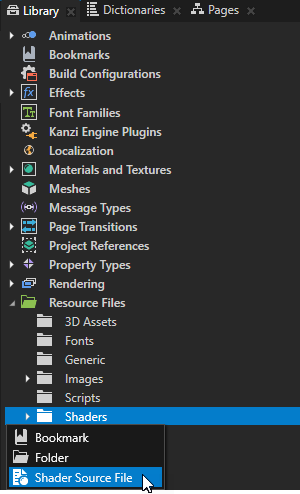

1. In the Library > Resource Files press Alt and right-click Shaders, select Shader Source File, and name the shader file.

   For example, name the shader file MyHelperShader.



2. Double-click the shader file that you created and in the Shader Source Editor add the code that implements the functionality that you want to include in another shader file.

   For example, add a function that converts an RGB color value to grayscale:

   float colorToLuma(vec3 col)
   {
       return col.r * 0.2126 + col.g * 0.7152 + col.b * 0.0722;
   }

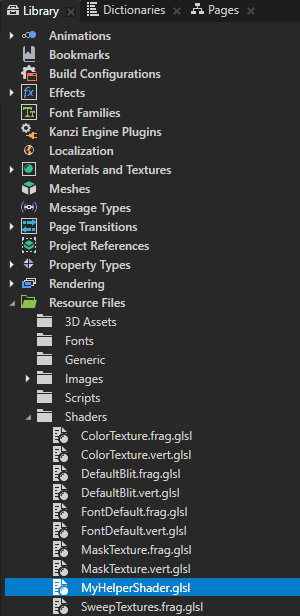

3. In the Library > Resource Files > Shaders double-click the shader file where you want to include another shader, and in the Shader Source Editor add the #include directive followed by a shader filename.

   Kanzi replaces the line where you add the #include directive with the content of the shader.

   For example, to include the shader MyHelperShader.glsl:

   ...

   #include "MyHelperShader.glsl"

   ...


To share shader code across projects without copying files, use the Kanzi shader include library. See Using the shader include library.

Using shaders in the API

For details, see the ShaderProgram class.
