Step 2 - Visualize the focus

In this step, you visualize the key focus in application lists by changing the appearance of:

1. The list item that has the key focus.

2. The list that contains the item with key focus.

Set the appearance of a focused node

In this section, you visualize focus in application lists by changing the appearance of the focused list item.

To set the appearance of a focused node:

1. In the Preview, go to the Media screen.

   The Media screen contains Grid List Box nodes, which are focus scopes by default. This means that when the key focus moves to a List Box node, that node forwards the focus to its first focusable child node. In these List Box nodes, each list item is a Button and Button nodes are focusable by default.

   While you can move the key focus between the list items, you cannot yet see where the key focus is.

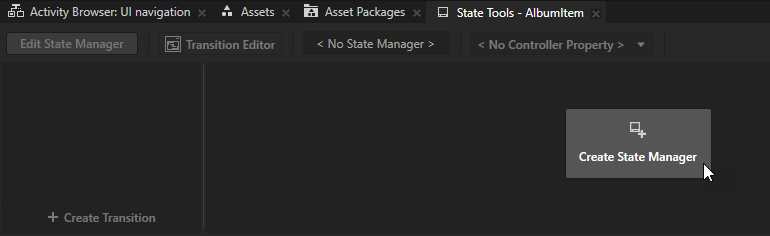

2. In the Prefabs, select the AlbumItem prefab. In the State Tools, click Create State Manager.

   Kanzi Studio creates a state manager and assigns it to the AlbumItem prefab.

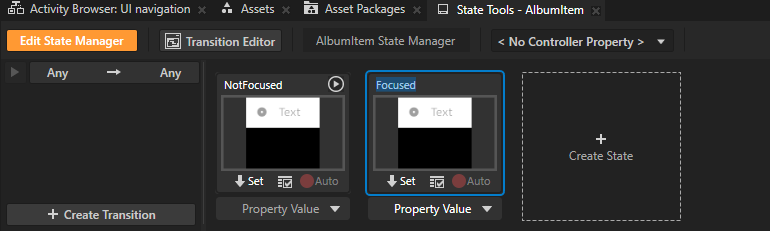

3. Click Create State twice to create two states and name them NotFocused and Focused.

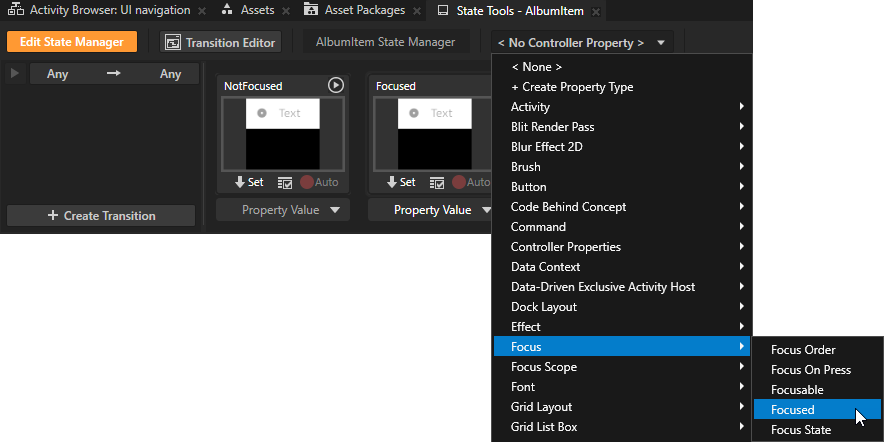

4. Click <No Controller Property> and select the Focus > Focused property.

   The read-only Focused property indicates whether a node is the key focus node. The key focus node is the node that currently receives key input. A Kanzi application can have only one key focus node at a time.

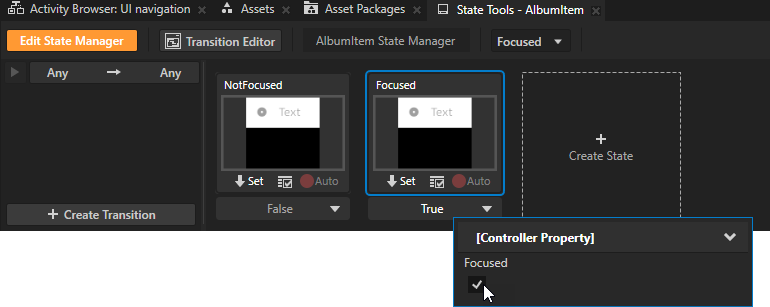

5. In the Focused state, set the value of the Focused controller property to True.

   You use this state to define the appearance of the key focus node.



6. Define the appearance of the node in the Focused state:

   1. In the Prefabs, select the AlbumItem > Background > Label node.

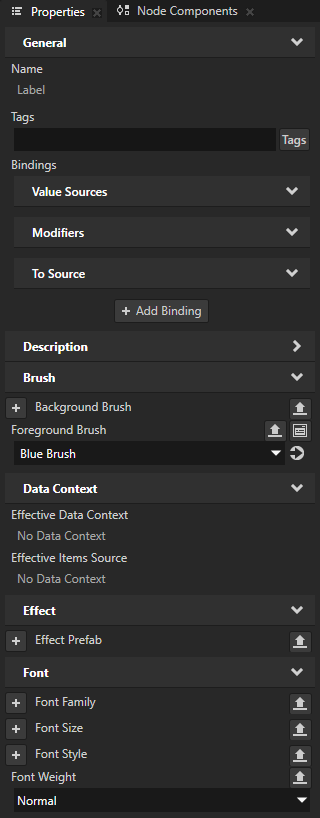

   2. In the Properties, add and set:

      • Foreground Brush to Blue Brush

      • Font Weight to Normal

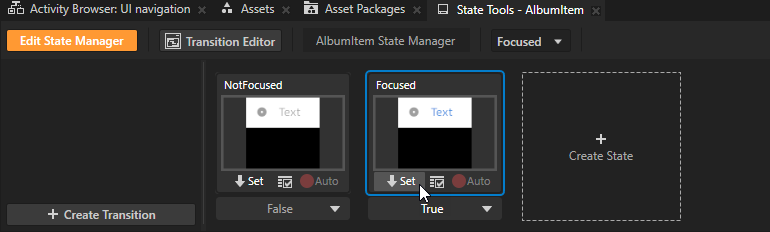

   3. In the State Tools in the Focused state, click Set to save the value of these properties to that state.

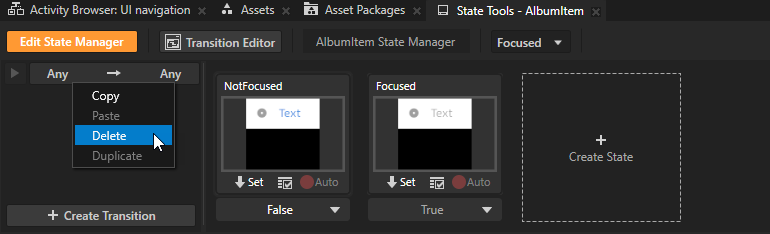

7. In the State Tools, right-click Any -> Any and select Delete.

   You remove the default transition so that the state manager moves between the NotFocused and Focused states instantly.

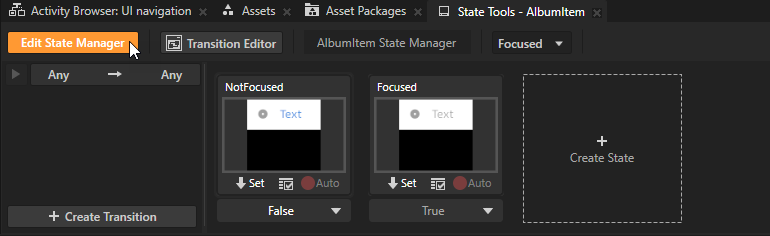

8. Click Edit State Manager to deactivate the state tools.

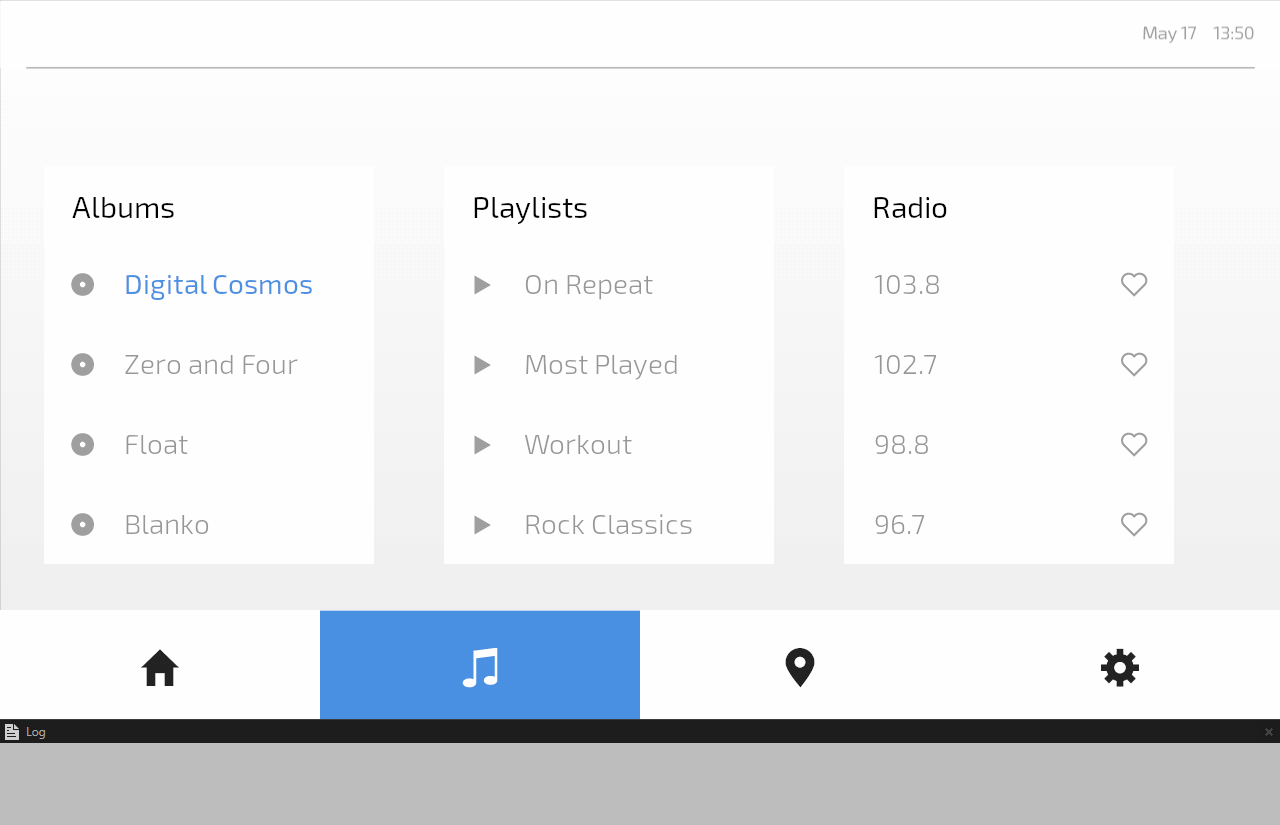

   Now, in the Preview, the focused album item is blue and uses normal font weight.

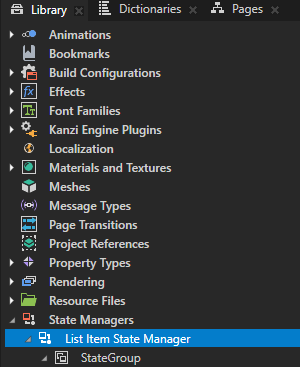

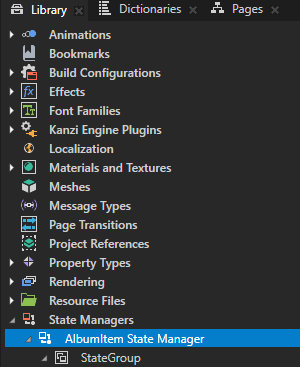

9. In the Library > State Managers, rename the AlbumItem State Manager to List Item State Manager.

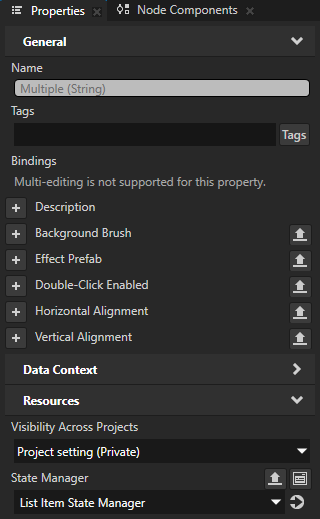

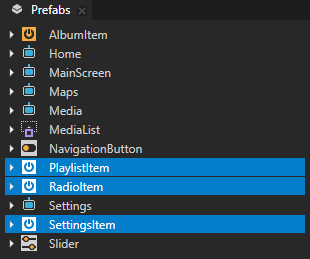

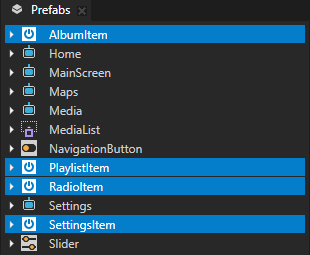

10. In the Prefabs, select the PlaylistItem, RadioItem, and SettingsItem prefabs. In the Properties, add the Resources > State Manager property and set it to the List Item State Manager.

    This way, you set all lists in your application to use the List Item State Manager to change the appearance of the item that has the key focus.



When you select the Preview window, you can use these default keyboard keys to move the key focus in a list:

• ↓ (Down) to the next focusable item

• ↑ (Up) to the previous focusable item

• Home and End to the first and last item

• Page Up and Page Down to the beginning and end of the visible area of the list

In a List Box node, by default, the key focus and item selection are synchronized. When the key focus moves to a list item, Kanzi sets that list item as selected.

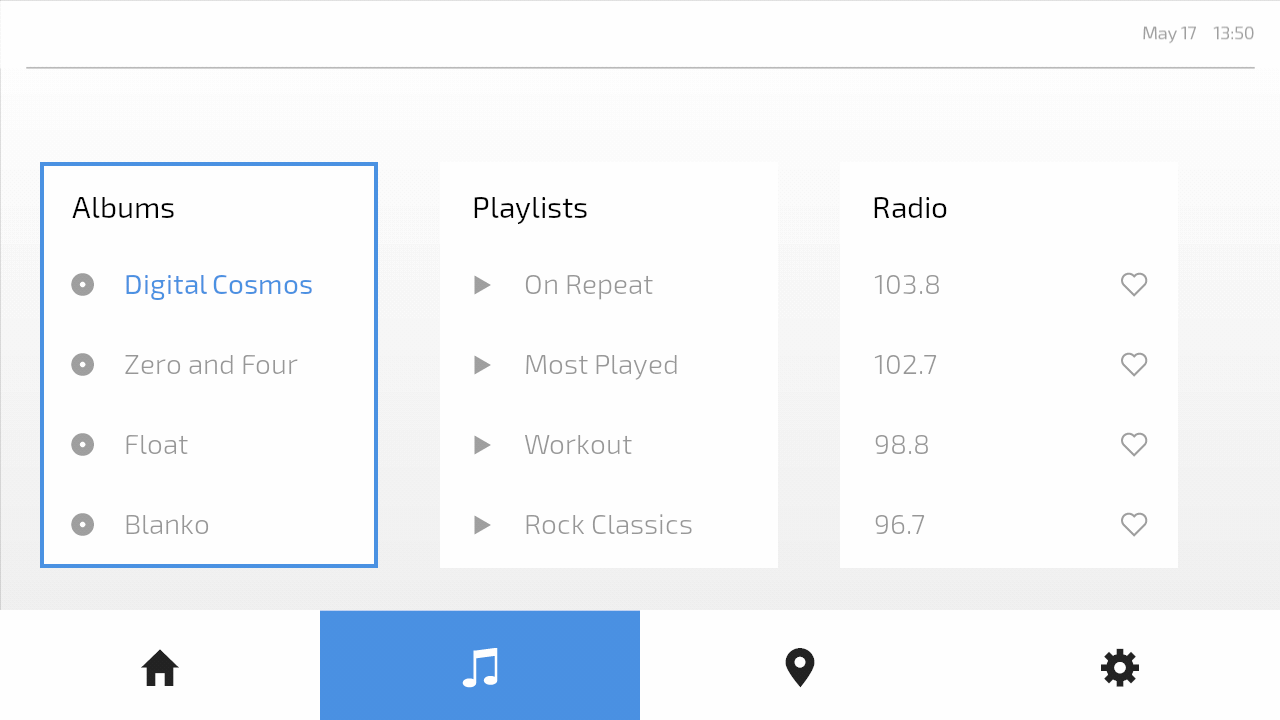

Now, when you move the key focus between the list items:

• The label of the item that receives key input becomes blue and uses normal font weight.

• The labels of all other items are gray and use light font weight.

On the Media screen, you can use these default keyboard keys to navigate the key focus between the lists:

• Tab to the right, to the next list in the focus chain

• Shift Tab to the left, to the previous list in the focus chain

Tip

In this tutorial step, you use the default keyboard keys to navigate the key focus between the lists. To set different keys to navigate the key focus:

1. In the Media prefab, create a Navigation Manipulator and set the Left Navigation Key and Right Navigation Key to the keys that you want to use.

2. Create Key Navigation Started triggers and conditions for left and right navigation. Use the Focus: Move Scope Focus Backward and Focus: Move Scope Focus Forward actions to move the focus.

In this tutorial project, each list item prefab has a Button: Click trigger with a Write Log action that prints a message to the log. When a Button node has the key focus, you can use the Enter or Space key to press that button. This sets off the Button: Click trigger. For example, when the third item in the Albums list has the key focus and you press the Enter key, Kanzi prints to the Log window Play album "Float".

Set the key focus to the list item that the user presses

To set the key focus to the list item that the user presses:

1. In the Prefabs, select these prefabs:

   • AlbumItem

   • PlaylistItem

   • RadioItem

   • SettingsItem

   These prefabs are Button nodes. Interactivity control nodes, such as the Button and Slider nodes, are by default hit testable and focusable, which means that they can by default receive the key focus and press.

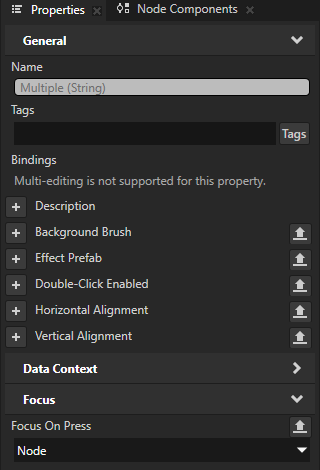

2. In the Properties, add the Focus > Focus On Press property and set it to Node.

   This way, you move the key focus from anywhere in the application to the list item that the user presses.



   Tip

   A node inherits the value of the Focus On Press property from its parent. For example, to set all interactive nodes in an application screen to receive focus at press, it is enough to set the Focus On Press property in the root node of that application screen.

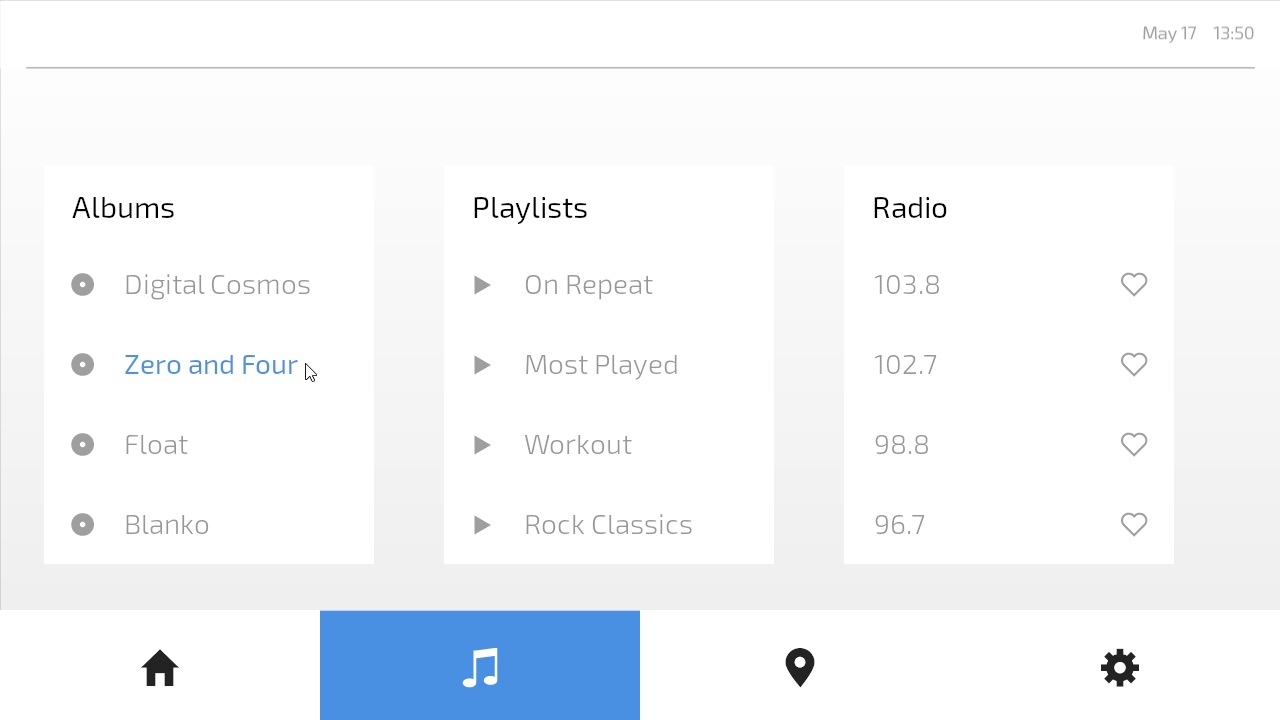

Now, when you click a list item, that item gets the key focus.

Show when a list contains the key focus

In this section, you set the lists on the Media and Settings screens to change appearance based on whether they contain the item that has the key focus. You do this with the List State Manager that comes with the starting point project of this tutorial.

The List State Manager uses as its controller property the Focus State property, which indicates the focus state of a node or nodes in a focus scope.

For a focus scope, the values of the Focus State property have these meanings:

• No Focus: None of the nodes in the focus scope have focus.

• Logical Focus: A node in the focus scope is the logical focus node of the overlay to which the scope belongs. By default, a Kanzi application has one overlay, the Screen node.

• Key Focus: A node in the focus scope is the key focus node, which receives key input.

To show when a list contains the key focus:

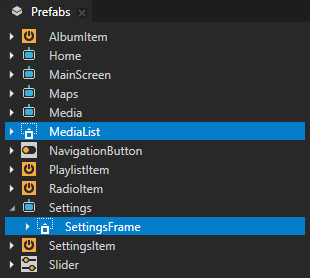

1. In the Prefabs, select:

   • The MediaList prefab.

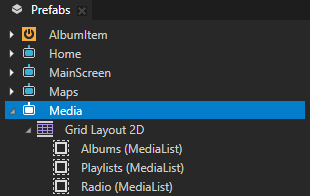

     In the Media Activity prefab, the Albums, Playlists, and Radio are instances of the MediaList prefab.

   • The Settings > SettingsFrame node.

   These nodes are Content Layout 2D nodes that have the Horizontal Padding and Vertical Padding properties set to create a border around their child node. This border is not visible, because the MediaList and SettingsFrame nodes have no background brush.

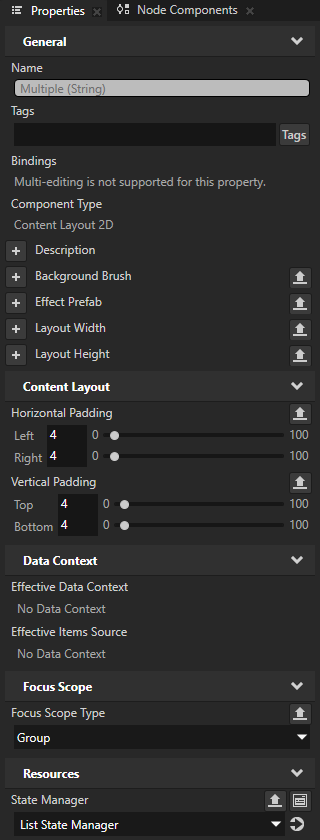

2. In the Properties, add and set:

   • Focus Scope > Focus Scope Type to Group

     You make the nodes focus scopes, so that you can use the Focus State property to find out whether a descendant node is the key focus node.

   • Resources > State Manager to List State Manager

     The List State Manager sets the Background Brush property of a node:

     • In the KeyFocus state, to the Blue Brush color brush.

     • In the NoFocus and LogicalFocus states, to the White Brush color brush.



   Now, the list that contains the key focus has a blue border.

   To set the focus to a list, either:

   • Use the Tab and Shift Tab keys to move the focus.

   • Click an item in that list.

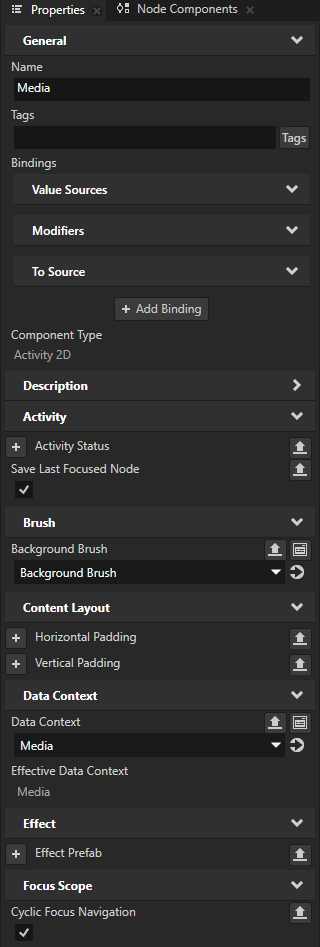

3. In the Prefabs, select the Media Activity prefab. In the Properties, add and enable the Focus Scope > Cyclic Focus Navigation property.

   This way:

   • When you navigate forward with the Tab key, and the focus reaches the last list, the focus moves to the first list.

   • When you navigate backward by pressing the Shift Tab keys, and the focus reaches the first list, the focus moves back to the last list.
